DEC Digital RA90 RA92 Blower Bezel Assembly 12-23970-01 RA9X McLean DC Fan

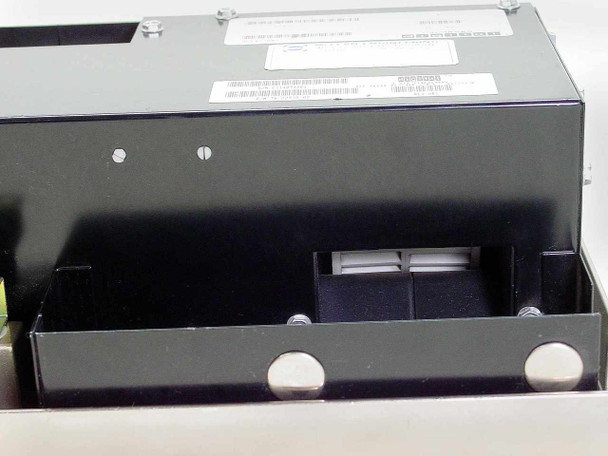

This is the OEM blower and bezel assembly for Digital Equipment Corporation (DEC) RA90 and RA92 disk drives, carrying DEC part number 12-23970-01 and secondary designation RA9X. The assembly was manufactured by McLean Engineering Air Cooling Technology of Camarillo, California, under contract to Digital. It houses a DC dual-fan blower unit within an integrated metal chassis and bezel, providing the cooling airflow required for RA90/RA92 drive operation.
Specifications & What's Included
- DEC Part Number: 12-23970-01
- Secondary / Assembly P/N: RA9X
- Additional P/N: 70-22939-02 Rev A01
- Hardware Revision: Rev J03

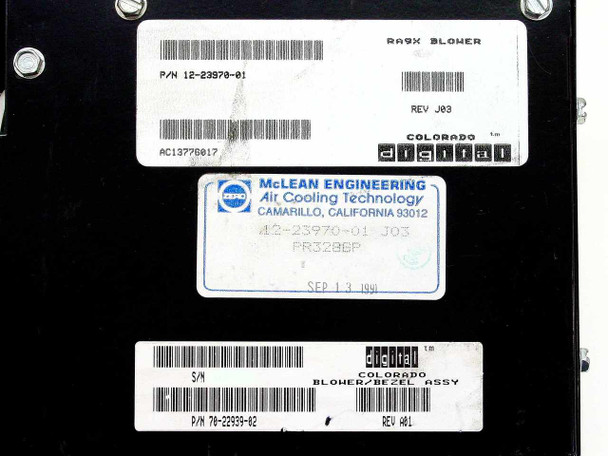

- OEM Manufacturer: McLean Engineering Air Cooling Technology, Camarillo, CA 93012
- Configuration: DC dual-fan blower assembly
- Dimensions: 9" L × 10.5" W × 5" H

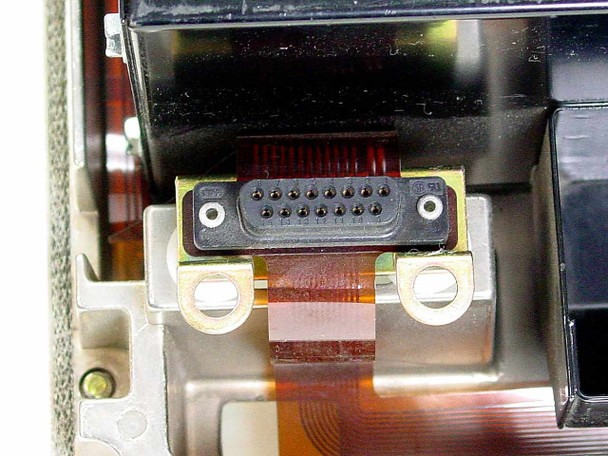

- Connectors: Multi-pin D-sub style data/signal connector with flex ribbon cable; keyed 12-pin rectangular power/signal connector
- Compatible with: Digital DEC RA90 and RA92 disk drives
- Date of manufacture: September 1991
- Construction: Sheet metal chassis with integrated plastic bezel and fan grill
Applications
The DEC RA90 and RA92 were high-capacity Winchester disk drives produced by Digital Equipment Corporation in the late 1980s and early 1990s for use in VAX and other DEC minicomputer systems. These large-format drives — each roughly the size of a small washing machine — required dedicated forced-air cooling to maintain safe operating temperatures. The blower/bezel assembly mounts on the drive enclosure and draws or exhausts air across the drive mechanism. This type of replacement assembly is sought by facilities and collectors maintaining legacy DEC VAX systems, data center archivists, and vintage computer restorers who need to keep RA90/RA92 drives operational. McLean Engineering was a well-known OEM supplier of thermal management subassemblies for DEC and other major minicomputer and storage manufacturers of that era.
This Digital DEC RA90/RA92 Blower/Bezel Assembly (P/N 12-23970-01) has been inspected and is in good used condition. The metal chassis and bezel are intact, the fan grill and blower components appear undamaged, and the connectors look clean and unbroken. It shows the normal light wear you'd expect from a pulled storage system component. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Digital Equipment Corporation (DEC) |
Model: |
12-23970-01 |
MPN: |
12-23970-01 |
Secondary Model: |
RA9X |
Secondary Part Number: |
70-22939-02 |
Type: |
Blower / Bezel Assembly |
OEM Manufacturer: |
McLean Engineering Air Cooling Technology |
Compatible With: |
DEC Digital RA90, RA92 Disk Drive |
Fan Configuration: |
DC Dual Fan |
Hardware Revision: |
Rev J03 |
Dimensions: |
9" L x 10.5" W x 5" H |
Country/Region of Manufacture: |
United States |
Form Factor: |
Integrated Blower/Bezel Module |
Connector Type: |
Multi-pin D-sub and rectangular keyed power connector |
SKU: |
15414 |
Seller Notes: |
Assembly only — no additional cables or mounting hardware included |
Condition Notes: |
This DEC Digital RA90/RA92 Blower Bezel Assembly (12-23970-01) has been inspected and is in good used condition. Metal chassis and fan grill are intact, connectors clean. Normal light wear from prior use. |
