Digital Equipment DEC M5904 Massbus Controller Transceiver Board 5010503E

Digital Equipment DEC M5904 Massbus Controller Transceiver Board 5010503E

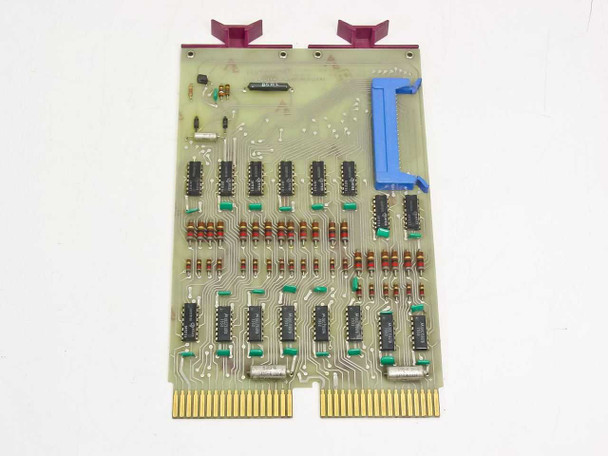

The Digital Equipment Corporation M5904 is a Massbus Controller Transceiver board, part number 5010503E, designed for use in DEC's Massbus peripheral architecture. It serves as the bus interface between a host CPU backplane and Massbus storage peripherals, handling the transceiver logic necessary to drive and receive signals across the high-speed Massbus. The board mounts via a gold-finger edge connector and includes an internal ribbon connector for peripheral attachment.

Specifications & What's Included

• Manufacturer: Digital Equipment Corporation (DEC)
• Model: M5904
• Part Number: 5010503E
• Board designation (silkscreened): Controller Transceiver
• Bus interface: Massbus (gold-finger edge connector)
• Internal connector: Blue multi-pin ribbon/expansion connector
• Mounting brackets: Magenta/maroon metal card guides (top)
• PCB population: Multiple DIP ICs, resistor arrays (SIP), discrete resistors, and passive components
• Crystal/oscillator: Present on board (EXM38 visible in photos)
• Board only — no cables or accessories included

Applications

The DEC Massbus was a high-speed parallel storage bus used throughout Digital Equipment Corporation's PDP-11 and VAX minicomputer systems from the 1970s through the 1980s. It connected the CPU to disk drives (such as the RP04, RP06, RP07, and RM-series), tape drives, and other high-bandwidth peripherals. The Massbus used a parallel, synchronous protocol capable of sustained transfer rates well above what the older Unibus could support, making it the preferred interface for large-capacity storage in DEC's mid-range and high-end systems of that era. Controller transceiver boards like the M5904 performed the electrical buffering and signal-driving functions needed to reliably communicate over the bus across the distances of a large system cabinet. This board is of interest to collectors, restorers, and operators maintaining vintage PDP-11 or VAX systems that depend on Massbus storage subsystems.
