Description
Digi AccelePort 4r-PCI 50000490-02 4-Port Serial Controller Card w/SUR
The Digi AccelePort 4r-PCI is a 4-port asynchronous serial controller card for the PCI bus, manufactured by Digi International (formerly Digiboard). It is designed to add four independent RS-232 serial ports to a desktop or server system through a single PCI slot, using a DB78 high-density connector on the bracket that connects to an external breakout or fan-out cable/module. The "w/SUR" designation indicates this card includes the SUR (Simultaneous Use of RJ-45) interface module, allowing direct RJ-45 serial connections without a separate octopus cable.
Specifications & What's Included
- Manufacturer: Digi International (Digiboard)
- Product Line: AccelePort 4r-PCI

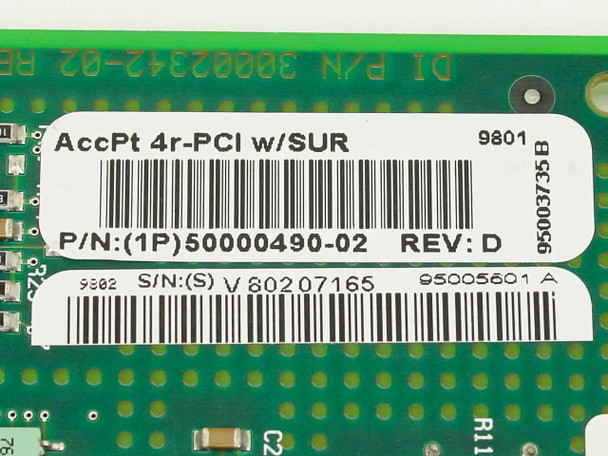

- Part Number: 50000490-02 (Rev D)
- Sub-board Part Number: 55000536-02 (Rev E)
- Bus Interface: PCI (full-height bracket)
- Number of Serial Ports: 4
- Serial Interface: RS-232 asynchronous
- Bracket Connector: DB78 (78-pin high-density D-sub)
- Includes: SUR (Simultaneous Use of RJ-45) module
- Main Controller: LSI logic chip (visible on component side)
- Serial Controller IC: Zilog Z85230 or equivalent (visible on component side)
- FCC and CE marked
- Date Code: 9801 (January 1998)
- Card only — no driver CD, bracket cable, or octopus cable included
Applications
The AccelePort product line from Digi International was widely used in the mid-to-late 1990s and 2000s to expand serial port capacity in PC servers and workstations running environments such as Windows NT/2000, Linux, and SCO Unix. Typical applications included connecting serial terminals, point-of-sale peripherals, industrial automation devices, modems, and other RS-232 equipment to a single host system. The PCI version replaced earlier ISA-based multiport cards as PCI became the standard expansion bus. AccelePort cards remain in demand for legacy industrial control systems, serial-based data acquisition setups, and environments maintaining older RS-232 peripheral infrastructure where additional COM ports are needed without a USB adapter solution.

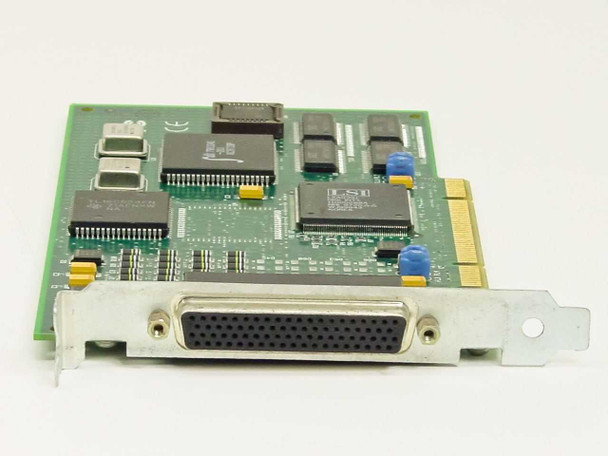

This Digi AccelePort 4r-PCI serial controller card (P/N 50000490-02) has been inspected and appears to be in good condition. The PCB shows no cracked traces, damaged components, or bent connector pins. The DB78 bracket connector and PCI edge connector both look clean. Normal light handling wear is present on the board surface. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Digi International |
Model: |
AccelePort 4r-PCI |
MPN: |
50000490-02 |
Secondary Model: |
55000536-02 |
Hardware Revision: |
Rev D |
Type: |
Multiport Serial Controller Card |
Number of Ports: |
4 |
Interface Type: |
RS-232 Serial |
Bus Interface: |
PCI |
Connector Type: |
DB78 (78-pin D-sub) |
Module Included: |
SUR (Simultaneous Use of RJ-45) |
Form Factor: |
PCI Card (Full-Height) |
Compatible With: |
PCI-slot desktop/server systems |
SKU: |
16061 |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Digi AccelePort 4r-PCI 50000490-02 serial controller card has been inspected and appears to be in good condition. PCB, DB78 connector, and PCI edge connector all look clean with normal light handling wear. |
