Dictaphone 765 Voice Processor Messaging System Answering Machine w/ Foot Pedal

Dictaphone 765 Voice Processor Messaging System Answering Machine w/ Foot Pedal

The Dictaphone 765 is a professional desktop voice processor and messaging system designed for office telephone recording and answering-machine applications. It records from telephone lines, conference sources, and a microphone input, and doubles as a full-featured answering machine. The unit is a Pitney Bowes / Dictaphone Corporation product manufactured in Japan.

Specifications & What's Included

• Model: Dictaphone 765 Messaging System

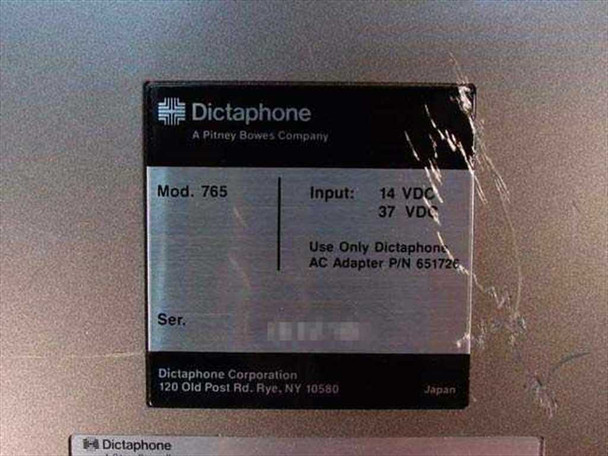

• Power Input: DC 14V / DC 37V (requires Dictaphone AC Adapter P/N 651726 — not included)
• Recording Sources: Telephone line, conference, microphone
• Answering machine function: Yes

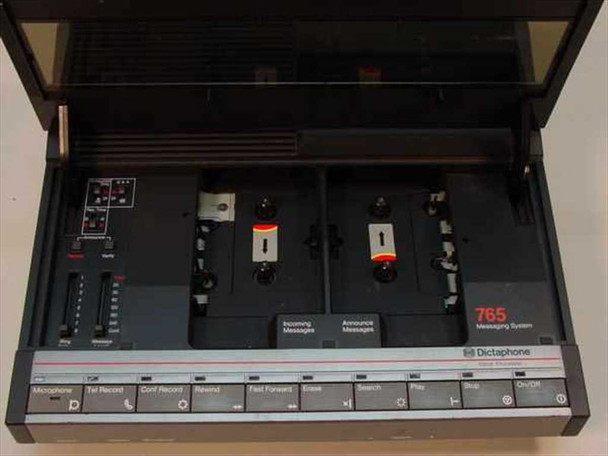

• Cassette transport: Dual-bay mechanism (Incoming Messages and Announce Messages bays visible inside lid)
• Display: LCD panel with In Use and Message indicators
• Front-panel controls: Microphone, Tel Record, Conf Record, Rewind, Fast Forward, Listen, Search, Stop, Play, On/Off; also Set, Select, Date, Counter Reset, Total Calls

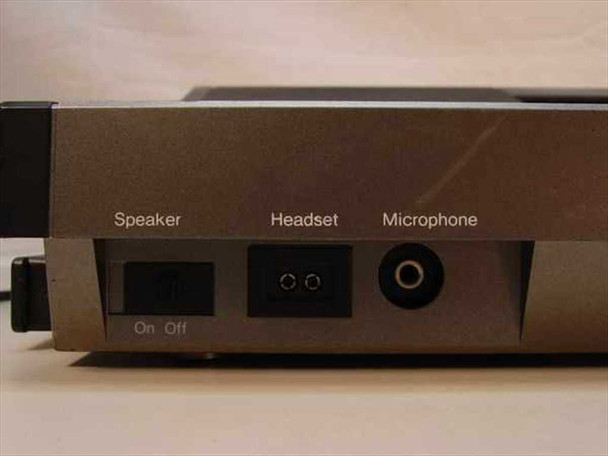

• Side connections: Speaker (On/Off switch), Headset jack, Microphone jack

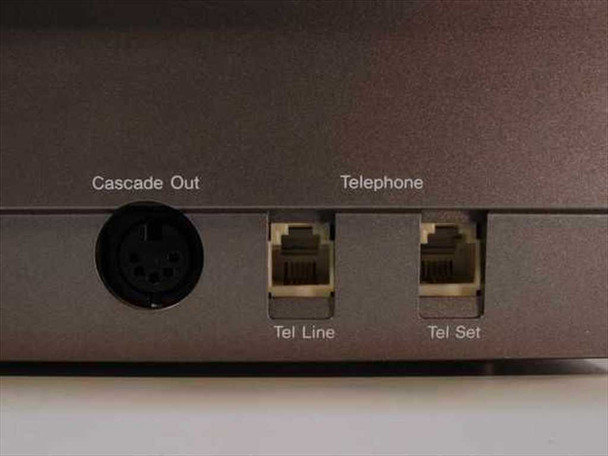

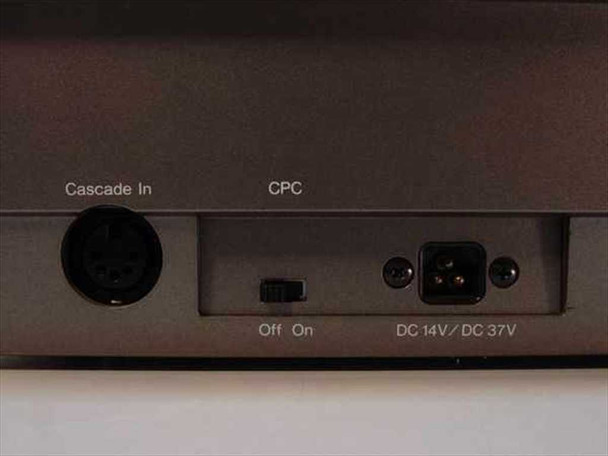

• Rear connections: Cascade In (DIN), CPC port, On/Off switch, DC power connector; Cascade Out (DIN), Tel Line (RJ), Tel Set (RJ)
• Form factor: Desktop
• Manufactured by: Dictaphone Corporation, 120 Old Post Rd., Rye, NY 10580 (a Pitney Bowes Company); Made in Japan
• Included: Foot pedal
• Not included: Power supply (AC adapter), microphone

Applications

The Dictaphone 765 belongs to Dictaphone's line of office messaging and dictation systems from the 1980s and early 1990s, when analog cassette-based voice processing was standard in legal, medical, and corporate offices. These systems were used to record incoming telephone calls and messages automatically, allow transcriptionists to play back recordings via foot pedal control, and manage outgoing answering-machine announcements — all on standard or micro-cassette media. The cascade in/out ports allowed multiple units to be linked together in larger office installations. The foot-pedal interface was especially valued by legal secretaries and medical transcriptionists, who needed hands-free playback control while typing. Units like the 765 were typically connected between a telephone set and the telephone line, recording calls and messages without the need for a computer. Today these systems are largely of interest to collectors of vintage office technology and to users of legacy transcription workflows.
