Description
Denton Vacuum SD-10 Rackmount Vacuum Monitor 115 VAC 60Hz Spectrophotometer
Optical monitoring unit designed for thin film deposition applications. Measures light reflectance and transmittance through spectrophotometric analysis using a lamp source and multi-range detection system.
Specifications & What's Included
- Rackmount form factor, 115 VAC 60Hz operation
- Three input channels: REFL, TRANS, REF via DIN-style connectors

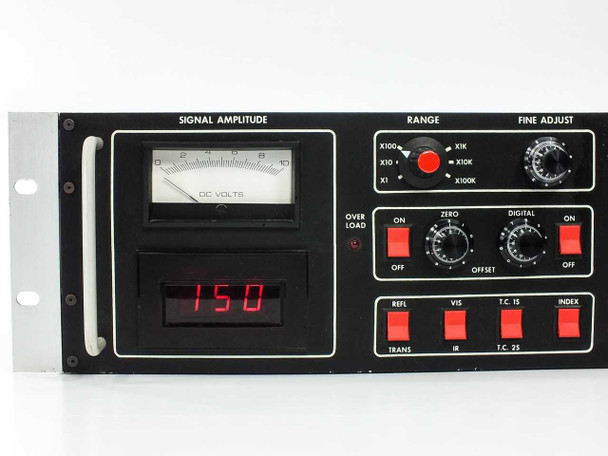

- Analog meter + 7-segment LED digital display readout
- Multiple range settings: X1 through X100K with scale expansion options
- Recorder outputs: 0-10mV, 0-1mV, 0-1V, 0-10V
- Rear-mounted cooling fan and rear lamp/motor connectors
- Includes attached power cord
Applications
This unit monitors optical properties during vacuum deposition processes. Designed for use with Denton Vacuum deposition systems, it tracks film thickness and optical characteristics in real-time. Commonly deployed in thin film manufacturing, coating quality control, and research environments requiring spectrophotometric measurement of deposited materials.
Condition: Used
This Denton Vacuum SD-10 Rackmount Vacuum Monitor has been inspected and appears to be in good used condition. It was pulled from a working environment. The front panel controls, switches, and indicators appear intact and show normal wear consistent with lab use. The chassis shows light surface wear typical of a rackmount instrument that has seen field use. The unit includes its power cord. Internal components are visible in our photos, including the Power-One internal power supply and Corcom EMI filter. Please view our photo set and contact us if you have any questions.
This Denton Vacuum SD-10 Rackmount Vacuum Monitor has been inspected and appears to be in good used condition. It was pulled from a working environment. The front panel controls, switches, and indicators appear intact and show normal wear consistent with lab use. The chassis shows light surface wear typical of a rackmount instrument that has seen field use. The unit includes its power cord. Internal components are visible in our photos, including the Power-One internal power supply and Corcom EMI filter. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Denton Vacuum |
Model: |
SD-10 |
MPN: |
SD-10 |
Type: |
Rackmount Vacuum Monitor / Optical Monitor |
SKU: |
9632 |
Form Factor: |
Rack Mount |
Power Requirements: |
115 VAC, 60Hz |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached power cord. Unit photographed with lid removed showing internal components. |
Input Channels: |
REFL, TRANS, REF (3 inputs via DIN-style connectors) |
Recorder Output: |
Digital Meter: 0-10mV, 0-1mV; Analog Meter: 0-1V, 0-10V |
Signal Amplitude Display: |
Analog meter + 7-segment LED digital display |
Range Control: |
X1, X10, X100, X1K, X10K, X100K |
Scale Expansion: |
X1, X2, X4, X5, X8, X10 |
Diagnostics: |
LAMP, +P.S., -P.S., REF. SIG indicators |
Lamp Voltage Connectors: |
Two motor/lamp connectors (P/S 1, P/S 2, LAMP) on rear |
Switches: |
REFL, TRANS, IR, VIS, T.C. 1S, T.C. 2S, INDEX (illuminated red) |
Power Switch: |
Front panel POWER ON/OFF illuminated rocker |
Cooling: |
Rear-mounted fan |
EMI Filter: |
Corcom 5VK1 EMI filter, 5A 120/250V 50-60Hz |
Internal Power Supply: |
Power-One HC8P-75W-A (visible internally) |
Application / Use Case: |
Thin film deposition monitoring, optical spectrophotometry |
Compatible With: |
Denton Vacuum deposition systems, optical monitors |
Condition Notes: |
This Denton Vacuum SD-10 Rackmount Vacuum Monitor has been inspected and appears to be in good used condition. It was pulled from a working environment. |
