Description
Denso HC66TR Handheld Barcode Scanner 454800-5552 DC 5V CCD Wand Made in Japan
The Denso HC66TR is a handheld CCD-type barcode scanner designed for point-of-sale, inventory, and light industrial data-capture applications. It connects via a coiled cable terminating in an 8-pin DIN connector and is powered at DC 5V / 90mA through the host interface. Manufactured in Japan by Denso — a company with deep roots in auto-ID and barcode technology — the HC66TR is a compact, gun-style wand scanner built for repetitive scanning tasks in retail and industrial settings.
Specifications & What's Included
- Brand: Denso
- Model: HC66TR
- Part Number: 454800-5552
- Scanner Type: CCD handheld barcode scanner
- Form Factor: Gun-style handheld
- Power: DC 5V, 90mA (host-powered)

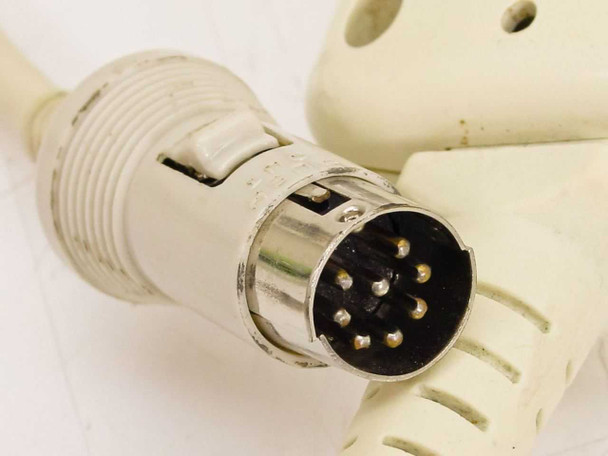

- Cable: Coiled cable with 8-pin DIN male connector
- Country of Manufacture: Japan

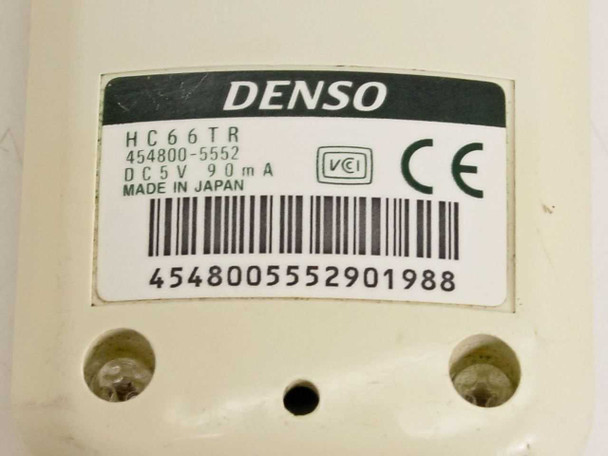

- Certifications: CE, VCI (visible on label)
- Included: Scanner with attached coiled cable
- Not included: Power adapter, host interface cable adapter, or manual
Applications
The Denso HC66TR is a 1D CCD barcode scanner suited for point-of-sale systems, warehouse inventory tracking, manufacturing line data capture, and document management environments. Denso's HC-series scanners were widely used in retail and light industrial settings throughout the 1990s and into the 2000s, valued for their reliability and straightforward integration into legacy POS and inventory systems. The 8-pin DIN interface connects to compatible host terminals and POS hardware of that era. This type of scanner remains useful for maintaining or expanding older POS and data-collection systems that use the same interface standard, as well as for integration projects and hobbyist/vintage computing setups.

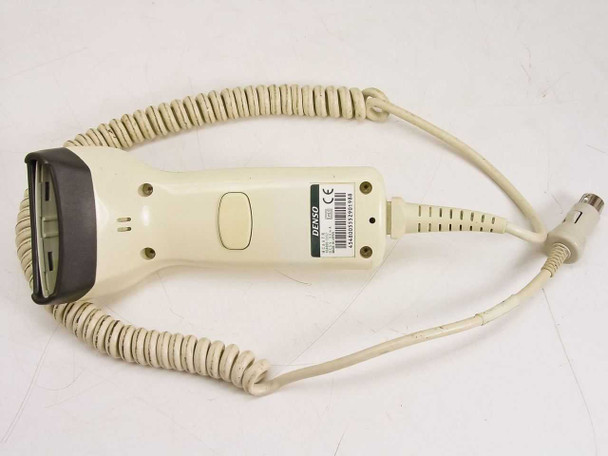

This Denso HC66TR handheld barcode scanner has been inspected and appears to be in good used condition. The housing shows light surface soiling and minor scuffing consistent with normal use — most notably some discoloration on the handle and body typical of aged cream/beige plastics. The scan window and trigger button appear intact. The coiled cable is present and shows no obvious cuts or damage, and the 8-pin DIN connector looks clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Denso |
Model: |
HC66TR |
MPN: |
454800-5552 |
SKU: |
39832 |
Type: |
Handheld CCD Barcode Scanner |
Power Requirements: |
DC 5V, 90mA |
Connector Type: |
Multi-pin DIN (8-pin round) |
Cable Type: |
Coiled cable |
Form Factor: |
Handheld |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Inspected and in good condition |
Seller Notes: |
Includes coiled cable with 8-pin DIN connector. No power adapter included. |
Interface: |
8-pin DIN |
Condition Notes: |
Denso HC66TR barcode scanner inspected and in good used condition. Housing shows light surface soiling and minor scuffing typical of use. Coiled cable and 8-pin DIN connector present and undamaged. |
