Description
Delta Electronics DPS-200PB-71 200W ATX PC Power Supply 100-240V 1-759-525-11
The Delta Electronics DPS-200PB-71 is a 200-watt ATX desktop power supply designed for use in standard ATX PC cases. It features a universal AC input, making it compatible with both North American (100-120V) and international (200-240V) mains voltages without manual switching beyond the rear voltage-selector switch. Multiple DC output rails supply power to the motherboard, drives, and peripheral devices.
Specifications & What's Included
- Model: DPS-200PB-71 F, Revision: REV:00
- Alternate Part Number: 1-759-525-11
- Additional Part Number: 79F3391
- Form Factor: ATX
- Maximum Output Power: 200W
- Input Voltage: 100-120V AC (8.0A) / 200-240V AC (4.0A)
- Input Frequency: 47–63 Hz
- Output +5V: 18A
- Output +3.3V: 14A
- Output +12V: 6A
- Output -12V: 0.8A
- Output +5VSB (standby): 0.1A
- Output -5V: 0.3A
- Combined +5V & +3.3V maximum: 110W
- Combined -5V & -12V maximum: 0.8A combined current
- Main connector: 20-pin ATX motherboard connector

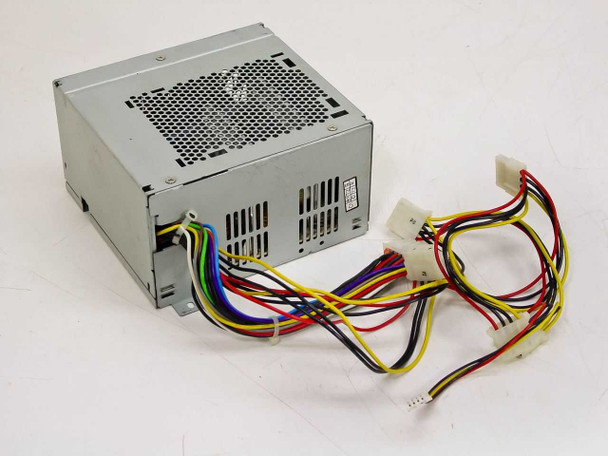

- Peripheral connectors: Multiple 4-pin Molex, floppy power connectors (visible in photos)
- Cooling: Rear-mounted 80mm NMB brushless fan
- AC inlet: IEC C14 with rear-panel voltage selector switch
- Certifications: UL, CE, N (Nemko) — visible on label
- Date Code: 9744 (manufactured Q4 1997)
- Made in China
- Included: Power supply unit only — no mounting screws or documentation
Applications
The DPS-200PB-71 is a standard ATX power supply from the mid-to-late 1990s era of desktop PC building, when 200W was a typical capacity for systems running Pentium-class processors. ATX power supplies in this range were used in mainstream desktop computers from that period — including systems based on Pentium, Pentium II, and early Pentium III platforms. This unit is a direct-fit replacement for systems originally equipped with the same or compatible ATX PSU, and its universal input voltage range makes it suitable for use in various markets. Legacy PC builders, hobbyists maintaining period-correct systems, and repair shops servicing older desktops are the primary buyers for a unit like this.
This Delta Electronics DPS-200PB-71 200W ATX power supply has been bench-tested at our facility and is in good working order. The unit shows normal cosmetic wear consistent with prior use — light scuffing on the metal housing — but is otherwise clean and intact. All output connectors and the IEC AC inlet are present and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Delta Electronics |
Model: |
DPS-200PB-71 |
MPN: |
DPS-200PB-71 |
Secondary Model: |
1-759-525-11 |
Part Number: |
79F3391 |
Revision: |
REV:00 |
Type: |
ATX Desktop Power Supply |
SKU: |
12053 |
Maximum Output Power: |
200W |
Form Factor: |
ATX |
Input Voltage: |
100-120V AC / 200-240V AC |
Input Current: |
8.0A @ 100-120V; 4.0A @ 200-240V |
Input Frequency: |
47-63 Hz |
Output +5V: |
18A |
Output +3.3V: |
14A |
Output +12V: |
6A |
Output -12V: |
0.8A |
Output +5VSB: |
0.1A |
Output -5V: |
0.3A |
Combined +5V & +3.3V Max: |
110W |
Combined -5V & -12V Max: |
0.8A |
Main Connector: |
20-pin ATX |
Peripheral Connectors: |
4-pin Molex, floppy power (visible in photos) |
Cooling: |
80mm NMB fan (rear-mounted) |
AC Inlet: |
IEC C14 |
Voltage Selector: |
Red switch on rear panel |
Date Code: |
9744 |
Country/Region of Manufacture: |
China |
Certifications: |
UL, CE, N (Nemko) |
Seller Notes: |
Power supply only — no mounting screws or documentation included. |
Condition Notes: |
This Delta Electronics DPS-200PB-71 200W ATX power supply has been bench-tested at our facility and is in good working order. Shows normal cosmetic wear on the housing. All connectors intact. Please contact us with any questions. |
