Description
Delta Electronics DPS-100BB 103W AT Power Supply 115V 230V 50/60Hz Vintage 1985

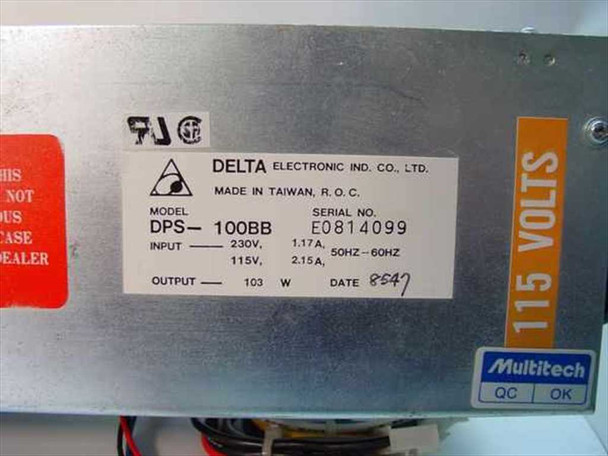

The Delta Electronics DPS-100BB is a 103W AT-form-factor desktop computer power supply manufactured in 1985 (date code 8547). It features a dual-voltage AC input accepting both 115V and 230V at 50/60Hz, making it compatible with both North American and international power standards. The unit connects via standard AT-style P8/P9 Molex connectors and includes an IEC C14 inlet with an IEC C13 pass-through outlet and a rear-mounted rocker on/off switch.
Specifications & What's Included
- Model: DPS-100BB
- Manufacturer: Delta Electronic Ind. Co., Ltd. (Made in Taiwan, R.O.C.)
- Output Power: 103W
- Input Voltage: 115V AC (2.15A) / 230V AC (1.17A)
- Input Frequency: 50Hz – 60Hz
- Form Factor: AT
- Output Connectors: AT-style P8/P9 Molex wiring harness (attached)
- AC Input: IEC C14 inlet
- AC Pass-Through Outlet: IEC C13
- Power Switch: Rear-mounted rocker (I/O)
- Cooling: Top-mounted case fan
- Certifications: UL, cUL
- Manufacture Date: Week 47 of 1985
Applications
The AT power supply form factor was the standard for IBM PC/XT and PC/AT compatible desktop computers throughout the mid-1980s to mid-1990s, before the ATX standard replaced it around 1995. Units like the DPS-100BB powered the original IBM PC/AT clones and early 286/386-era machines from manufacturers including Multitech (the precursor to Acer), leading PC clone makers of the era. The IEC C13/C14 inlet and pass-through outlet were characteristic of AT-era designs, allowing a monitor to be daisy-chained from the same AC circuit. Today, the AT power supply is sought after by vintage computer collectors and restorers working on period-correct 8088, 8086, 286, and early 386 systems. The 103W output was typical for machines of this generation, which had modest power demands compared to modern hardware. The dual-voltage input also makes this unit useful for international restorations or machines configured for 230V operation.

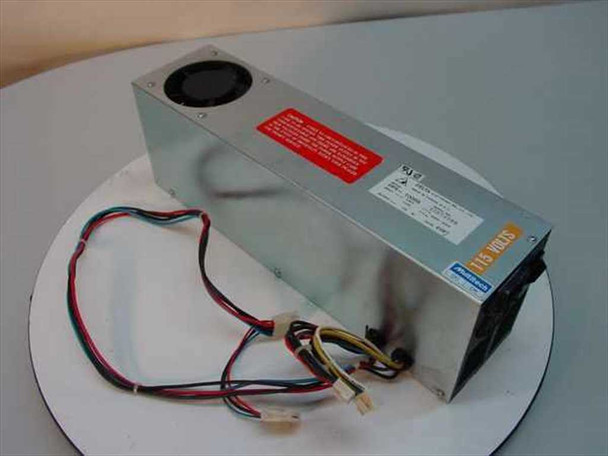

This Delta Electronics DPS-100BB 103W AT desktop power supply has been bench-tested at our facility and is in good working condition. The metal case shows light cosmetic wear consistent with its vintage 1985 manufacture date — some minor surface scuffing on the housing — but the unit is fully functional. The rear panel includes an IEC C14 AC inlet, an IEC C13 pass-through outlet, and a rocker on/off switch. The AT-style wiring harness with Molex power connectors is attached and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Delta Electronics |
Model: |
DPS-100BB |
MPN: |
DPS-100BB |
Type: |
AT Desktop Computer Power Supply |
SKU: |
18183 |
Maximum Output Power: |
103W |
Input Voltage: |
115V / 230V AC |
Input Current: |
2.15A @ 115V; 1.17A @ 230V |
Frequency: |
50Hz - 60Hz |
Form Factor: |
AT |
Connector Type: |
AT (P8/P9) Molex power connectors |
AC Input Connector: |
IEC C14 inlet / IEC C13 pass-through outlet |
Power Switch: |
Rear-mounted rocker switch (I/O) |
Modular: |
No |
Country/Region of Manufacture: |
Taiwan |
Manufacture Date: |
1985 (date code 8547 — week 47 of 1985) |
Certifications: |
UL, cUL |
Seller Notes: |
Bench-tested at our facility and confirmed working. Includes attached AT-style wiring harness. |
Condition Notes: |
This Delta Electronics DPS-100BB 103W AT power supply has been bench-tested at our facility and is in good working condition. Light cosmetic wear on the case consistent with age. AT wiring harness intact. |
