Dell TR-APR 90241 Token Ring Port Replicator 18.5V Laptop Docking Rev A02

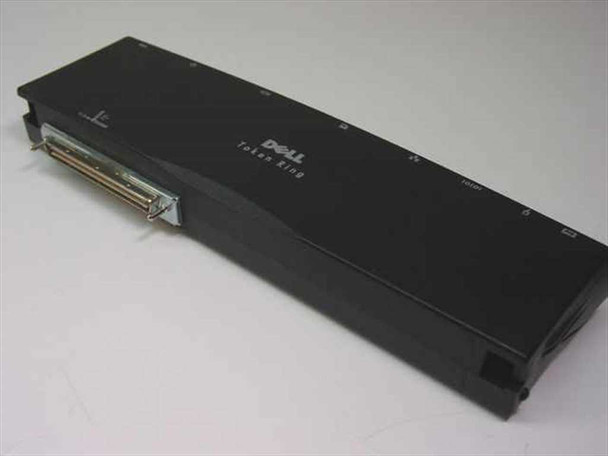

The Dell TR-APR is a port replicator designed for Dell Latitude laptops equipped with the APR (Advanced Port Replicator) docking interface. It adds a Token Ring network connection along with a full set of legacy I/O ports, letting a laptop connect to a Token Ring LAN and a desk's peripherals through a single docking connector. Model TR-APR, Dell part number 90241, hardware revision A02.
Specifications & What's Included
- Brand: Dell
- Model: TR-APR
- Dell Part Number: 90241
- Hardware Revision: Rev A02
- Power Input: 18.5V DC, 3.5A
- Network Interface: Token Ring (TR) LAN

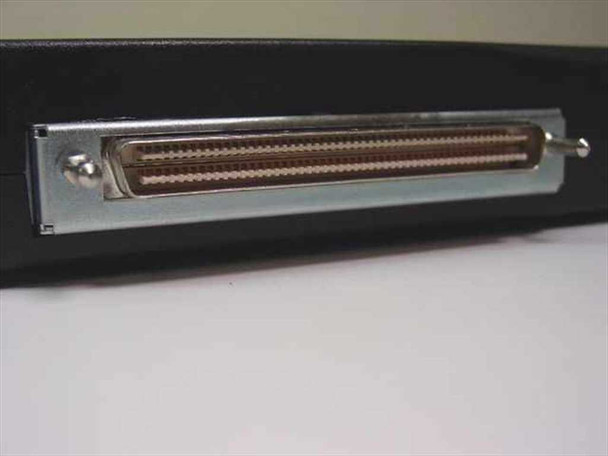

- Docking Connector: High-density proprietary Dell APR connector

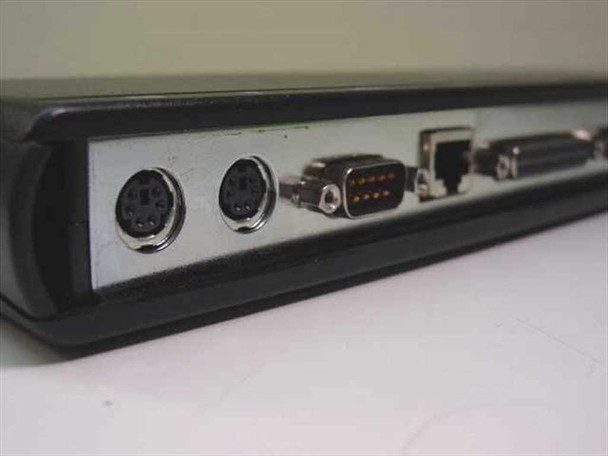

- Rear Ports: 2× PS/2 mini-DIN (keyboard and mouse)
- Rear Ports: DB9 serial port

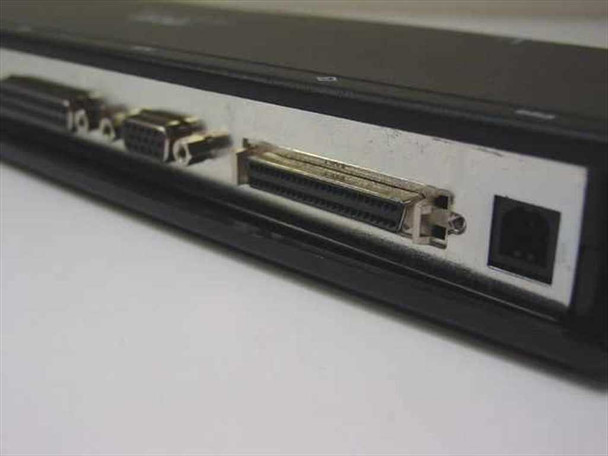

- Rear Ports: DB25 parallel port
- Rear Ports: DB25 Token Ring network connector
- Rear Ports: RJ-45 network port
- Certifications: UL, CE, TÜV Rheinland, NOM, FCC (ID: E2KTRSLICE)
- Form Factor: Slim laptop port replicator
- Included: Port replicator only — no AC adapter, no cables
Applications
Token Ring was IBM's LAN standard that competed with Ethernet through the late 1980s and 1990s, using a token-passing ring topology that was common in corporate and financial environments that standardized on IBM infrastructure. The Dell TR-APR was built for Dell Latitude laptops of that era — models such as the Latitude XPi and similar APR-compatible units — and allowed them to join an existing Token Ring network at a desk while also gaining access to serial, parallel, and PS/2 ports for printers and other peripherals. Token Ring networks are largely obsolete today, having been superseded by Fast Ethernet and Gigabit Ethernet, but this replicator remains relevant to technicians maintaining legacy IBM environments, collectors of 1990s-era networking equipment, and anyone needing a compatible docking solution for an original Dell APR-equipped Latitude laptop.

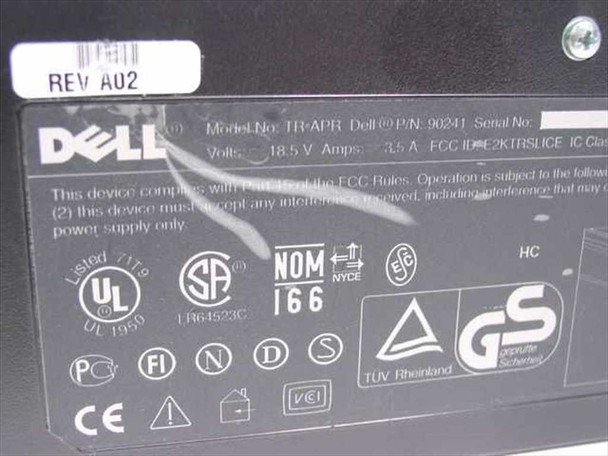

This Dell TR-APR 90241 Token Ring Port Replicator has been inspected and is in good used condition. The housing is intact with light surface wear consistent with age. All rear ports — including the PS/2, DB9 serial, parallel, RJ-45, and Token Ring DB25 connectors — appear clean and undamaged. The high-density docking connector shows no bent pins. The bottom label is legible, confirming Rev A02 and power specs. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
TR-APR |
MPN: |
90241 |
Type: |
Token Ring Port Replicator / Docking Station |
SKU: |
29742 |
Hardware Revision: |
Rev A02 |
Power Requirements: |
18.5V DC, 3.5A |
Network Interface: |
Token Ring (TR) |
Connector – Docking: |
High-density proprietary docking connector |
Ports – Serial: |
DB9 serial port |
Ports – Parallel: |
DB25 parallel port |
Ports – PS/2: |
2x PS/2 mini-DIN (keyboard and mouse) |
Ports – Network: |
RJ-45 Token Ring LAN port |
Ports – Token Ring: |
DB25 Token Ring network connector |
Certifications: |
UL, CE, TÜV Rheinland, NOM, FCC |
FCC ID: |
E2KTRSLICE |
Form Factor: |
Laptop Port Replicator |
Compatible With: |
Dell Latitude laptops with APR docking interface |
Condition Notes: |
This Dell TR-APR 90241 Token Ring Port Replicator has been inspected and is in good used condition. Housing and ports appear clean and undamaged; docking connector shows no bent pins. Rev A02, 18.5V/3.5A. |
