Dell GD419 7000814-0000 700W Server Power Supply 11A Hot-Swap PowerEdge

Dell GD419 7000814-0000 700W Server Power Supply 11A Hot-Swap PowerEdge

The Dell GD419 is a 700-watt redundant hot-swap power supply designed for Dell PowerEdge rack servers. It slides into a redundant PSU bay and connects via a proprietary backplane pin connector, allowing it to be swapped under load without powering down the server. The unit draws up to 11A AC input and provides the high-current DC outputs required by dual-processor server platforms.

Specifications & What's Included

• Dell Part Number: GD419 (CN-0GD419-15544-5C9-4741)
• Model: 7000814-0000
• Hardware Revision: Rev A00
• Output Power: 700W
• Max AC Input Current: 11A
• Form Factor: Hot-swap redundant server PSU module
• AC Inlet: IEC C14

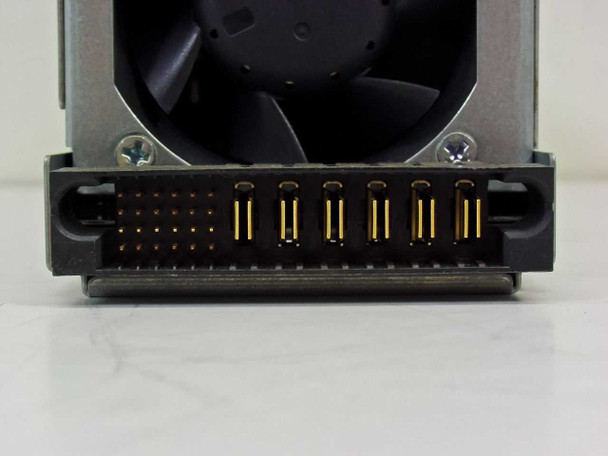

• Output Connector: Proprietary Dell backplane gold-pin connector

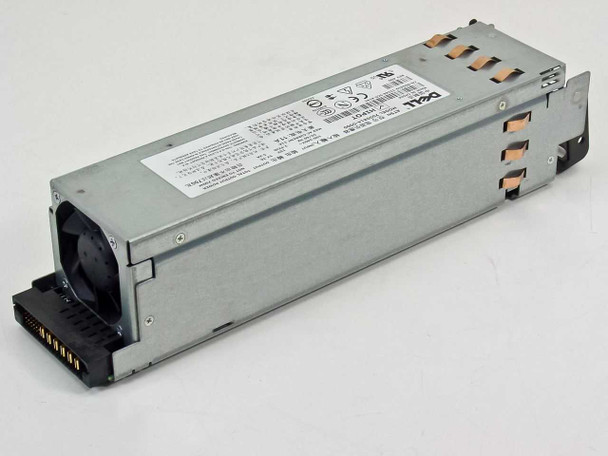

• Cooling: Integrated rear-mounted axial fan

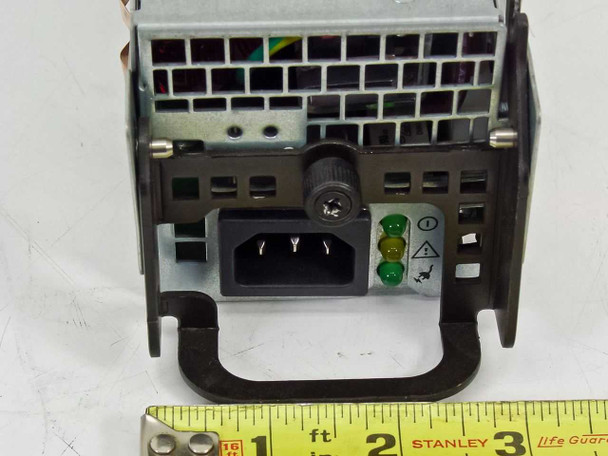

• Status Indicators: Green/yellow LED indicators on AC inlet end

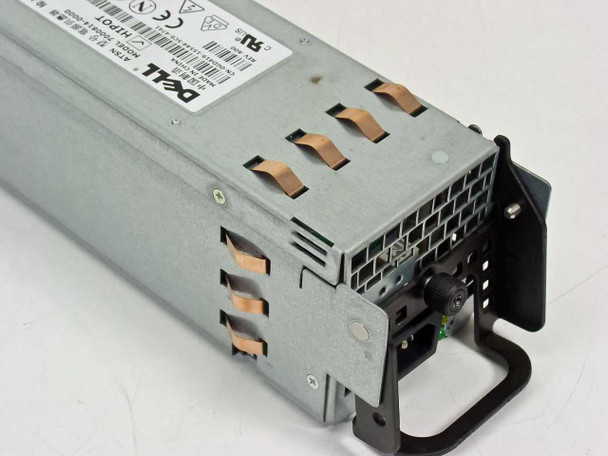

• Hot-swap Tabs: Four copper-contact hot-swap rails on top
• Certifications: UL, CE, CCC (China), DV
• Country of Manufacture: China
• Includes: Power supply unit only — no AC power cord or mounting hardware

Applications

The GD419 is a redundant power supply used in Dell PowerEdge rack servers, most commonly the PowerEdge 2850 and 2800. These servers support dual hot-swap PSUs in a 1+1 redundant configuration, so a single supply failure does not interrupt server operation — the second unit carries the load while the failed one is replaced live. This was a standard feature in Dell's mid-2000s generation of 2U rack servers widely deployed in enterprise data centers, co-location facilities, and corporate server rooms. Replacement GD419 units remain in demand for maintaining existing PowerEdge 2850/2800 infrastructure still in production use, as well as for lab and development environments running legacy workloads on this platform.
