Description
Dell C/Port Port Replicator 84795 Latitude CP CPi CPx C600 C800 USB VGA

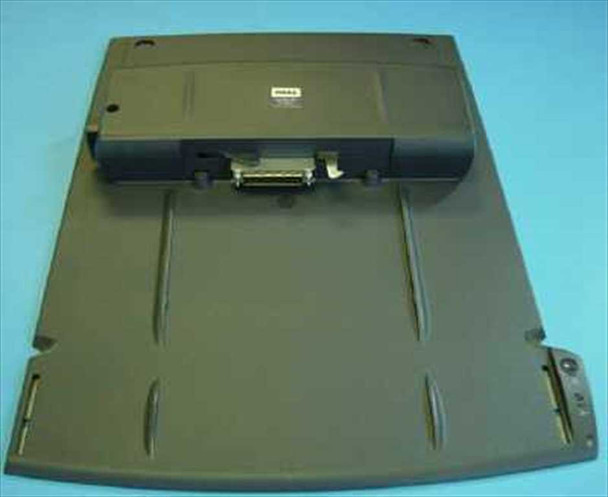

The Dell C/Port Port Replicator (part number 84795) is a flat-base port replicator designed for Dell's Latitude C-Series laptops. It connects via the laptop's proprietary Dell docking connector on the underside and instantly extends the laptop's connectivity with a full set of legacy and standard I/O ports — no separate power supply needed, as it draws power directly from the connected laptop.
Specifications & What's Included
- Manufacturer: Dell
- Part Number: 84795
- Type: Port Replicator (PDS — C/Port)
- Connection: Proprietary Dell C-Series docking connector (underside)

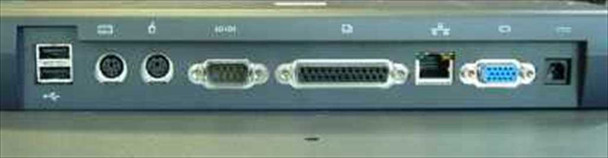

- 2x USB ports
- 1x Serial port — 9-pin DB-9
- 1x Parallel port — 25-pin DB-25
- 1x Ethernet port — RJ-45
- 1x VGA video output
- 1x PS/2 port (visible on rear panel)
- Power: draws power from laptop — no external power supply required
- Form factor: desktop flat-base platform
- Compatible laptops: Dell Latitude CP, CPi, CPi A, CPi R, CPt C, CPx H, CPx J, CSx H, CSx R, C600, C800
- Includes: port replicator only — no power supply, cables, or laptop included
Applications
Dell's C/Port Port Replicator was designed for late-1990s and early-2000s Latitude C-Series laptops used in corporate and enterprise desktop-replacement deployments. In that era, businesses standardized on a single dock that let users drop their laptop onto a desk station and immediately gain access to a full complement of legacy office peripherals — parallel-port printers, serial devices, PS/2 keyboards and mice, a wired Ethernet connection, and an external VGA monitor — without plugging in multiple cables individually. The C/Port design is simpler than a full docking station (no optical drive bay or expansion slots), making it compact and more portable between workspaces. These replicators are still sought after by users maintaining legacy Latitude C-Series systems, particularly those running period-correct Windows 98/ME/2000/XP installations that rely on parallel or serial peripheral connections no longer found on modern hardware.
This Dell C/Port Port Replicator (84795) for Latitude C-Series laptops has been inspected and is in good used condition. The unit shows normal cosmetic wear consistent with previous office use — light scuffing on the top surface and base platform. All ports on the rear I/O panel appear clean and undamaged, including the USB, serial, parallel, Ethernet, and VGA connectors, and the proprietary Dell docking connector on the underside looks intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
C/Port Port Replicator PDS |
MPN: |
84795 |
Type: |
Port Replicator / Docking Station |
SKU: |
13070 |
Compatible With 1: |
Dell Latitude CP, CPi, CPi A, CPi R |
Compatible With 2: |
Dell Latitude CPt C, CPx H, CPx J |
Compatible With 3: |
Dell Latitude CSx H, CSx R, C600, C800 |
Ports: |
2x USB, 1x Serial (DB-9), 1x Parallel (DB-25), Ethernet, VGA |
Number of USB Ports: |
2 |
Serial Port: |
9-pin (DB-9) |
Parallel Port: |
25-pin (DB-25) |
Video Output: |
VGA |
Network / Ethernet: |
Yes — RJ-45 Ethernet port |
Power Source: |
Uses laptop's own power supply (no separate PSU required) |
Laptop Connection: |
Proprietary Dell C-Series docking connector |
Form Factor: |
Desktop / Flat-base port replicator |
Seller Notes: |
Port replicator only — no power supply, cables, or laptop included. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Dell C/Port Port Replicator 84795 for Latitude C-Series laptops has been inspected and is in good used condition. Normal cosmetic wear; all ports appear clean and undamaged. Please contact us with any questions. |
