Description
Dell PHP6J PC8100 10G SFP+ 4-Port Module Card MXL Blade Switch 10GbE
The Dell PHP6J is a PC8100 10G SFP+ Module Card that adds four 10 Gigabit Ethernet SFP+ uplink ports to the Dell PowerEdge MXL Blade Switch. It slots directly into the MXL switch chassis and provides high-density 10GbE connectivity between blade server enclosures and the broader data center fabric. Each of the four ports supports standard SFP+ transceivers for both short-range (SR) and long-range (LR) optical connections as well as 10G direct-attach copper (DAC) cables.
Specifications & What's Included
- Manufacturer: Dell
- Model: PC8100 10GSFP+ Module
- Dell Part Number (MPN): PHP6J
- Secondary Part Number: 321-0003-A00
- Number of Ports: 4 × SFP+ (10GbE)
- Port Speed: 10 Gbps per port (40 Gbps aggregate)
- Interface: SFP+ (IEEE 802.3ae 10GBASE-SR/LR/DA compatible)
- Compatible Platform: Dell PowerEdge MXL Blade Switch
- Form Factor: Blade expansion module / mezzanine-style card

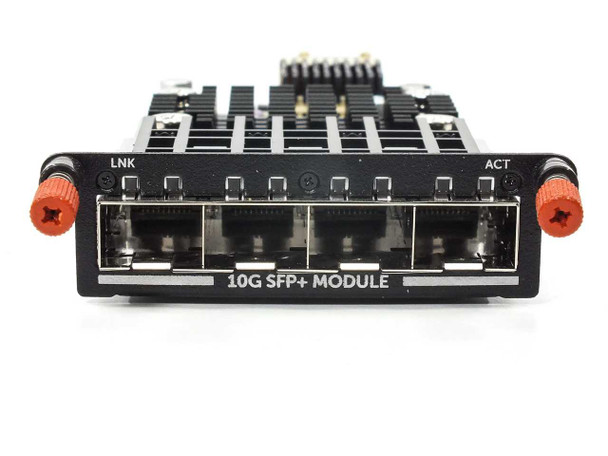

- Front Panel: LNK and ACT LED indicators per port pair
- Backplane Connector: High-density mezzanine edge connector (visible on reverse)
- Country of Manufacture: China
- Includes: Module card only — no SFP+ transceivers, cables, or accessories
Applications
The Dell MXL Blade Switch is a top-of-rack / blade-enclosure Ethernet switch designed for Dell PowerEdge M-Series blade server chassis, providing integrated 10GbE switching within the blade enclosure. The PHP6J PC8100 module expands the MXL's external uplink capacity, connecting the blade enclosure switch to upstream aggregation or core switches in a data center spine-leaf or three-tier architecture. This type of 10G SFP+ expansion module is standard in enterprise data center environments where blade server densities require high-throughput uplinks without additional cabling overhead between chassis. SFP+ transceivers (sold separately) allow flexible choice of fiber optic or DAC connectivity to match the specific cabling plant. These modules remain in active use wherever Dell MXL blade switch infrastructure is deployed and maintained.
This Dell PHP6J PC8100 10G SFP+ 4-Port Module Card has been inspected and appears to be in good used condition. It was pulled from a working blade switch environment where it was previously in service. The module shows normal wear consistent with data center use; the four SFP+ port cages and backplane connector appear intact and undamaged. No SFP+ transceivers or accessories are included — module card only. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
PC8100 |
MPN: |
PHP6J |
Secondary Model: |
321-0003-A00 |
SKU: |
49904 |
Type: |
10G SFP+ Expansion Module |
Number of Ports: |
4 |
Port Speed: |
10 Gbps (10GbE) |
Interface: |
SFP+ |
Compatible With: |
Dell MXL Blade Switch |
Form Factor: |
Blade Module / Mezzanine Card |
Country/Region of Manufacture: |
China |
Seller Notes: |
Module card only — no SFP+ transceivers, cables, or accessories included. |
Condition Notes: |
This Dell PHP6J PC8100 10G SFP+ 4-Port Module Card has been inspected and is in good used condition, pulled from a working blade switch environment. SFP+ cages and backplane connector appear intact. Module only — no transceivers included. |
