Description
Dell NPS-250KB A L230P-00 170W Desktop Power Supply Rev 03 50/60Hz
The Dell NPS-250KB A is a 170W non-ATX desktop power supply (alternate part number L230P-00) designed for Dell OptiPlex and Dimension desktop systems. It accepts universal AC input (100–240V, 50/60Hz) and delivers multiple regulated DC output rails to power the motherboard, drives, and peripherals. Revision 03 is marked on the rating label.
Specifications & What's Included
- Model: NPS-250KB A / L230P-00
- Hardware Revision: Rev 03
- Maximum combined output (+5V & +3.3V): 170W
- Total maximum output: 250W
- Input: 100–120V ~ 9.0A / 200–240V ~ 4.5A, 50–60Hz
- +5V output: 22.0A
- +12V output: 14.0A
- +3.3V output: 18.0A
- -12V output: 1.0A
- +5VSB (standby) output: 2.0A

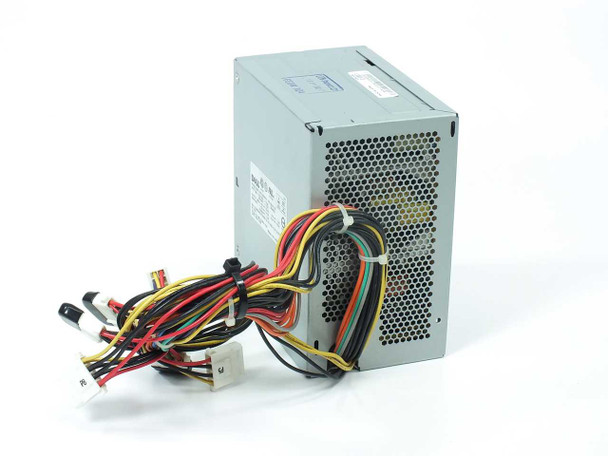

- Cooling: 80mm internal fan with exhaust grille

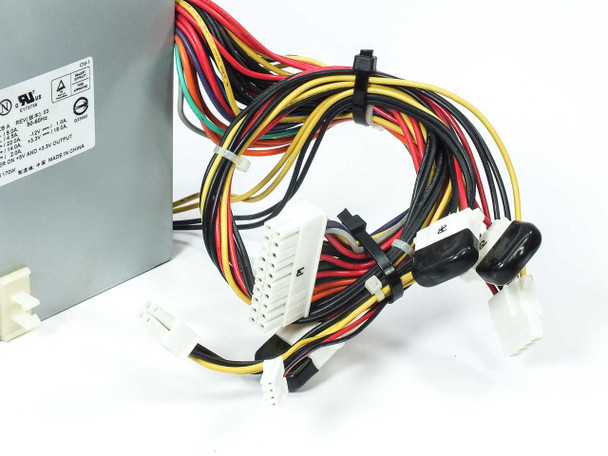

- Connectors: 20-pin ATX main, Molex 4-pin drive connectors, floppy power connector, auxiliary leads
- IEC C14 AC inlet on rear
- Country of Manufacture: China (Made in China — per label)
- Date Code: 0229
- Certifications: UL, CUL, CJB, CE
- Includes: Power supply unit only — no mounting screws or documentation
Applications
The NPS-250KB A was used in Dell OptiPlex and Dimension desktop PCs from the early-to-mid 2000s. Dell desktop systems of that era used a proprietary power supply form factor and connector pinout that differs from standard ATX, making direct-fit replacements like this unit essential for repair and maintenance. This supply is a straightforward drop-in replacement for systems that originally shipped with the NPS-250KB A or L230P-00. It remains in demand for servicing legacy Dell desktops still in office and light-duty use.
This Dell NPS-250KB A (L230P-00) 170W desktop power supply has been bench-tested at our facility and is in good working condition. The unit is clean overall with minor cosmetic wear consistent with normal use. All output connectors — including the 20-pin ATX main, Molex 4-pin, floppy, and auxiliary leads — are intact and in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
NPS-250KB A |
Secondary Model: |
L230P-00 |
MPN: |
NPS-250KB A |
SKU: |
49591 |
Type: |
Desktop Computer Power Supply |
Form Factor: |
Desktop / Non-ATX |
Maximum Output Power: |
170W combined (+5V & +3.3V); 250W max total |
Input Voltage: |
100-120V ~ 9.0A / 200-240V ~ 4.5A |
Input Frequency: |
50-60Hz |
Output +5V: |
22.0A |
Output +12V: |
14.0A |
Output +3.3V: |
18.0A |
Output -12V: |
1.0A |
Output +5VSB: |
2.0A |
Hardware Revision: |
Rev 03 |
Country/Region of Manufacture: |
China |
Modular: |
No |
Connector Type: |
Molex 4-pin, 20-pin ATX main, floppy |
Seller Notes: |
Power supply only — no mounting screws or documentation included. |
Compatible With: |
Dell OptiPlex, Dimension desktop systems |
Date Code: |
0229 |
Condition Notes: |
This Dell NPS-250KB A (L230P-00) 170W desktop power supply has been bench-tested and is in good working condition. Minor cosmetic wear consistent with normal use. All connectors intact. Please contact us with any questions. |
