Dell GJ501 ATI Radeon X1300 256MB PCIe Video Card DMS-59 S-Video Full Height

Dell GJ501 ATI Radeon X1300 256MB PCIe Video Card DMS-59 S-Video Full Height

The Dell GJ501 is a full-height PCI Express video card based on the ATI Radeon X1300 GPU with 256 MB of dedicated video memory. It outputs via a DMS-59 connector (a compact dual-monitor connector common on Dell business desktops) and an S-Video/TV-Out port. The card runs passively cooled — no fan — making it a quiet, low-power option for standard desktop workstations.

Specifications & What's Included

• GPU: ATI Radeon X1300
• Video Memory: 256 MB
• Interface: PCI Express (PCIe)
• Video Output: DMS-59 (dual-monitor capable via DMS-59 to dual-DVI/VGA adapter)
• Secondary Output: S-Video / TV-Out
• Form Factor: Full Height

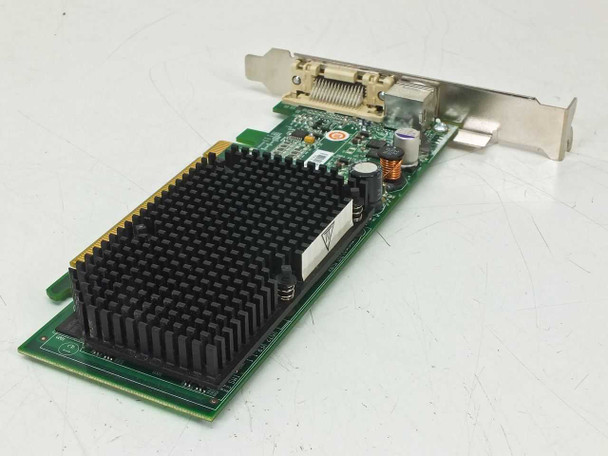

• Cooling: Passive heatsink (fanless)
• Dell Part Number: GJ501 (also referenced as 0GJ501, OGJ501)

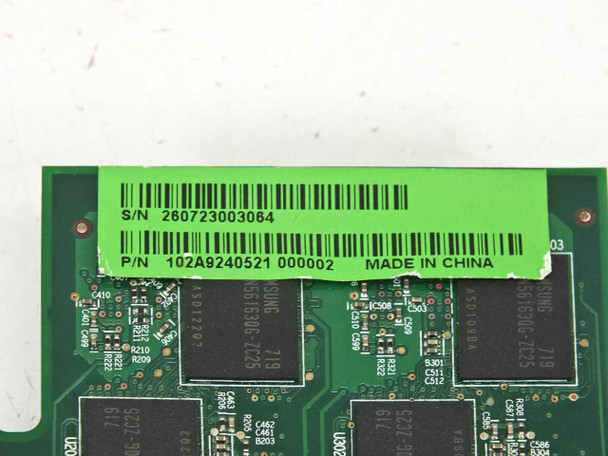

• ATI Part Number: 102A9240521
• ATI Part Number (alt): ATI-102-A924(B)
• ATI Part Number (alt): 109-A92431-20
• Country of Manufacture: China

Applications

The Radeon X1300 was a mainstream DirectX 9 graphics card from ATI's mid-2000s X1000 series, produced during the period when ATI and NVIDIA were competing closely in the budget-to-midrange desktop GPU market before AMD acquired ATI in 2006. Dell paired this card with their Optiplex, Dimension, and Precision full-height desktop lines. The DMS-59 output is Dell's preferred compact connector for business desktops of that era — a single port that breaks out to two analog VGA or two DVI displays via an inexpensive Y-cable adapter. Today these cards are commonly sought as drop-in replacements for aging Dell business desktops that need a working GPU, or for light-duty display output in legacy workstation setups where modern PCIe cards are overkill or incompatible.
