Description
Dell AT101W PS/2 Mechanical Keyboard ALPS Black Switches 0006780D GYUM90SK

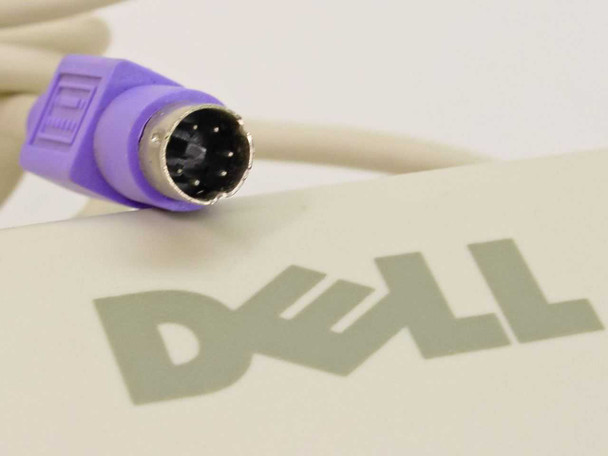

The Dell AT101W is a full-size 101-key PS/2 mechanical keyboard built with ALPS Black switches — a linear mechanical switch type prized by collectors and enthusiasts for its smooth, non-tactile keystroke with moderate actuation force. Produced in the early 1990s for Dell desktop systems, this keyboard connects via a purple PS/2 (Mini-DIN 6-pin) connector and draws just 5V at 75mA from the host system.
Specifications & What's Included
- Model: AT101W
- Dell Part Number: 0006780D (Rev A00)
- FCC ID: GYUM90SK
- Switch Type: ALPS Black (linear mechanical)
- Key Count: 101 keys (full-size layout with separate numpad and function row)
- Interface: PS/2 (purple Mini-DIN 6-pin connector)
- Voltage: 5V DC, 75mA
- Country of Manufacture: Mexico
- Certifications: CE, UL (E145614 / LR86682), FCC Part 15, ICES-003 Class B
- Standard: BSI-7179 Part 4 1990
- Included: Keyboard with attached PS/2 cable — no adapter included
Applications
The AT101W was designed for Dell's PS/2-era desktop systems of the early-to-mid 1990s — including Optiplex, Dimension, and compatible tower and desktop PCs — at a time when the PS/2 keyboard port was the universal standard on IBM-compatible machines. The ALPS Black switch mechanism was used in a number of well-regarded keyboards of that era; it offers a smooth linear feel without the tactile bump of ALPS White or the click of ALPS Blue, making it a quieter option among ALPS-switch keyboards. Today, keyboards with genuine ALPS switches are actively sought by vintage computing enthusiasts, mechanical keyboard collectors, and anyone running legacy PS/2-era hardware who wants a period-correct input device. PS/2 keyboards also work on modern systems using a passive PS/2-to-USB adapter.
This Dell AT101W PS/2 Mechanical Keyboard has been inspected and carries a 'Test Passed' sticker on the bottom label. The keyboard is in good used condition consistent with its age — the case shows light yellowing typical of vintage equipment from this era, and all keycaps are present. One keycap (F1) has been removed in our photos to document the ALPS Black switch type; it is present and can be reinstalled. The PS/2 cable and purple mini-DIN connector are intact with no visible damage. Please review our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
AT101W |
MPN: |
0006780D |
Secondary Model: |
6780D |
FCC ID: |
GYUM90SK |
Type: |
Mechanical Keyboard |
SKU: |
21082 |
Switch Type: |
ALPS Black (Mechanical) |
Number of Keys: |
101 |
Layout: |
Full Size (101-Key) |
Interface: |
PS/2 (Mini-DIN 6-pin) |
Connector Type: |
Purple PS/2 Mini-DIN 6-pin |
Voltage: |
5V DC |
Current: |
75mA |
Country/Region of Manufacture: |
Mexico |
Hardware Revision: |
Rev A00 |
Standards: |
BSI-7179 Part 4 1990; FCC Part 15; ICES-003 Class B |
Certifications: |
CE, UL (E145614, LR86682) |
Compatible With: |
PS/2-equipped PCs, Dell Optiplex, Dimension, and compatible systems |
Seller Notes: |
Keyboard only — no PS/2 to USB adapter included. |
Condition Notes: |
This Dell AT101W PS/2 Mechanical Keyboard has been inspected and carries a Test Passed sticker. Good used condition with light age-related yellowing on the case; all keycaps present, PS/2 cable intact. Please contact us with any questions. |
