Description
Western Digital WD Caviar AC36400 6.4GB IDE Hard Drive Dell 7030D 3.5in
The Western Digital WD Caviar AC36400 is a 3.5-inch Enhanced IDE (EIDE/PATA) hard drive with 6.4GB of formatted capacity. It connects via the standard 40-pin IDE interface and draws power through a 4-pin Molex connector, making it compatible with any desktop PC or workstation of the era that supports an IDE drive bay. Dell sourced this drive under part number 7030D (0007030D, Rev A00) for use in their desktop systems.
Specifications & What's Included
- Manufacturer: Western Digital
- Series: WD Caviar
- Model: AC36400 / AC36400-75LC
- Dell Part Number: 0007030D, Rev A00
- Capacity: 6.4 GB (6,448.8 MB formatted)
- Drive Parameters: 13,328 cylinders, 15 heads, 63 sectors/track
- Interface: Enhanced IDE (EIDE / PATA) — 40-pin connector
- Form Factor: 3.5-inch
- Power: 5VDC @ 0.58A, 12VDC @ 0.23A
- DCM: BSBBKUDA0ACJ
- Date Code: C6 09 OCT 98 (manufactured October 1998)
- Country of Manufacture: Malaysia
- Included: hard drive only
Applications
The WD Caviar AC36400 dates from the late 1990s IDE/PATA era, when Enhanced IDE was the dominant storage interface for desktop PCs and workstations. Drives of this generation were widely used in Pentium II and early Pentium III systems, as well as contemporary workstations and servers that supported standard IDE bays. Today, drives like this are sought for restoring and maintaining period-correct vintage PCs, legacy Dell desktops, and retro computing projects where IDE compatibility is required. The 40-pin PATA interface and 4-pin Molex power connector are standard across virtually all desktop IDE hardware of this generation.

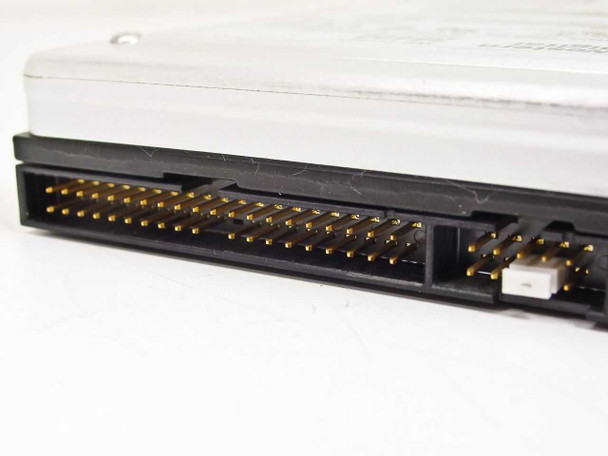

This Western Digital WD Caviar AC36400 6.4GB IDE hard drive has been tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. The drive is a 3.5-inch Enhanced IDE unit manufactured in Malaysia in October 1998. Cosmetically the drive shows light surface wear consistent with prior use — the label and housing are intact with no significant damage visible. The 40-pin IDE connector and 4-pin Molex power connector both appear clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Western Digital |
Model: |
AC36400 |
MPN: |
AC36400-75LC |
Secondary Model: |
Dell 7030D / 0007030D |
SKU: |
42098 |
Type: |
Internal Hard Drive (HDD) |
Series: |
WD Caviar |
Storage Capacity: |
6.4 GB (6448.8 MB) |
Interface: |
Enhanced IDE (EIDE / PATA) |
Form Factor: |
3.5-inch |
Drive Parameters: |
13328 cylinders, 15 heads, 63 sectors/track |
Power Requirements: |
5VDC 0.58A, 12VDC 0.23A |
Revision: |
REV.A00 |
DCM: |
BSBBKUDA0ACJ |
Date Code: |
C6 09 OCT 98 |
Country/Region of Manufacture: |
Malaysia |
Compatible With: |
Dell systems using P/N 7030D; IDE/PATA desktop systems |
Condition Notes: |
This Western Digital WD Caviar AC36400 6.4GB IDE hard drive has been tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. Shows light surface wear; connectors are clean. |
