Dell HP-233SNF 55079 230W ATX Power Supply OptiPlex GX300 Precision 210 400

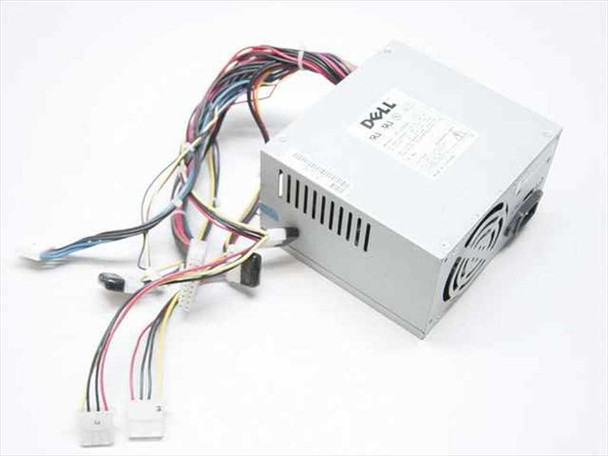

The Dell HP-233SNF is a 230-watt ATX desktop power supply manufactured by Dell for use in OptiPlex GX300 desktops and Precision 210 and 400 workstations. Also identified by Dell part number 55079 and OEM model PS-5201-5D, this is a non-modular unit with a fixed cable harness including ATX main, Molex peripheral, and floppy connectors. It accepts universal input voltage (115V or 230V AC), making it usable in both North American and international configurations via the rear voltage selector switch.
Specifications & What's Included
- Dell Model: HP-233SNF (REV H02)
- OEM Model: PS-5201-5D
- Dell Part Number (DPN): 55079 / 00005079
- Maximum Output Power: 230W
- AC Input: 115V–6A / 230V–4A, 50/60 Hz (universal)
- DC Output +5V: 6A
- DC Output +3.3V: 14A
- DC Output +12V: 0.3A
- DC Output -5V: 0.3A
- DC Output +5V Standby: 1.2A
- Form Factor: ATX (non-modular, fixed harness)

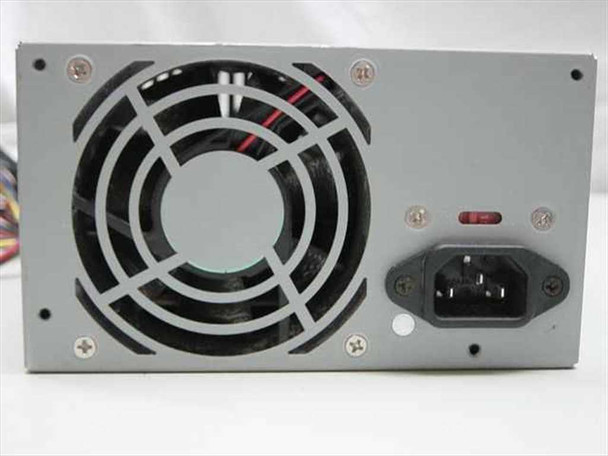

- Cooling: Dual 80mm fans (side intake + rear exhaust)

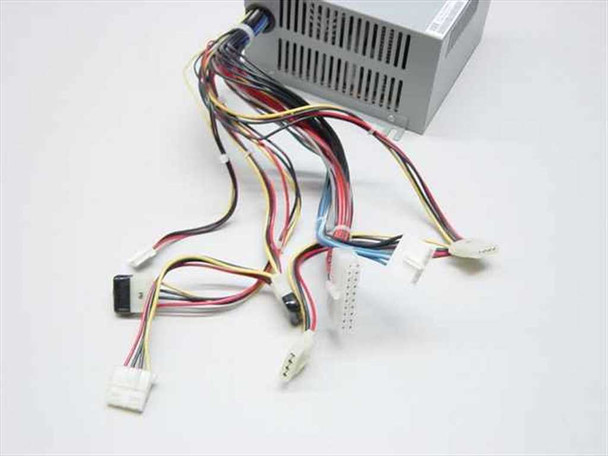

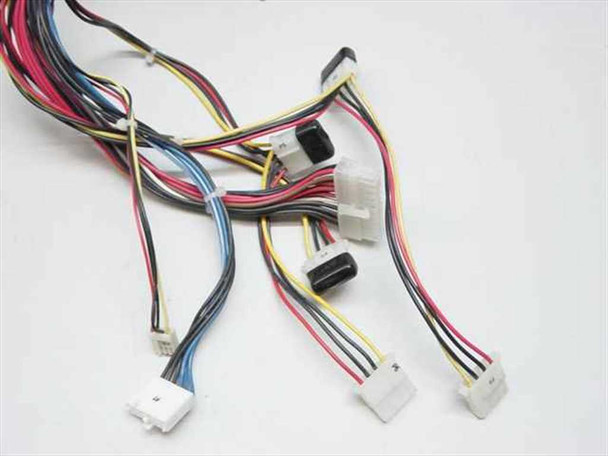

- Connectors: ATX 20-pin main, Molex 4-pin large peripheral (×4), small floppy connectors

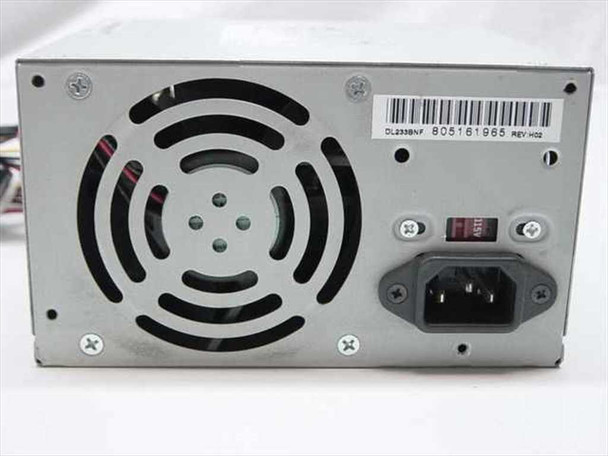

- AC Connector: IEC C14 inlet (rear)
- Voltage Selector: Manual rear-panel switch (115V / 230V)
- Country of Manufacture: Thailand
- Includes: Power supply unit with full cable harness only — no mounting screws or documentation
Applications
This power supply is a direct OEM replacement for the Dell OptiPlex GX300 desktop and the Dell Precision 210 and 400 workstations — mid-to-late 1990s Dell systems built around Intel Pentium II and Pentium III processors. The GX300 was a widely deployed corporate desktop in that era, and finding a direct-fit replacement ATX power supply for it remains a common need for IT departments maintaining legacy machines, system restorers, and parts suppliers. The HP-233SNF's proprietary Dell ATX form factor and connector layout are matched specifically to these platforms, so it is primarily sought as a drop-in replacement rather than a generic ATX unit. The universal voltage input also makes it useful for international deployments of these systems.
This Dell HP-233SNF 55079 230W ATX power supply has been bench-tested at our facility and is in good working order. The unit powers on and all output rails are functional. The chassis and cable harness are in good used condition with normal cosmetic wear consistent with prior installation. All output connectors — including the ATX 20-pin main, Molex 4-pin peripheral, and floppy connectors — are present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
HP-233SNF |
Secondary Model: |
PS-5201-5D |
MPN: |
55079 |
SKU: |
12145 |
Type: |
ATX Desktop Power Supply |
Maximum Output Power: |
230W |
Form Factor: |
ATX |
AC Input Voltage: |
115V AC / 230V AC (universal) |
AC Input Current: |
6A @ 115V / 4A @ 230V |
Input Frequency: |
50/60 Hz |
Output +5V: |
6A |
Output +3.3V: |
14A |
Output +12V: |
0.3A |
Output -5V: |
0.3A |
Output +5VSB: |
1.2A |
Hardware Revision: |
REV H02 |
Modular: |
No |
Compatible With 1: |
Dell OptiPlex GX300 |
Compatible With 2: |
Dell Precision 210 Workstation |
Compatible With 3: |
Dell Precision 400 Workstation |
Connector Type: |
ATX 20-pin, Molex 4-pin, Floppy |
Cooling: |
Dual 80mm fans |
Country/Region of Manufacture: |
Thailand |
Seller Notes: |
Power supply only — no mounting screws or documentation included |
Condition Notes: |
This Dell HP-233SNF 55079 230W ATX power supply has been bench-tested at our facility and is in good working order. Good used condition with normal cosmetic wear. All connectors present and intact. |
