SBI-D2P 715-0026-01 SCSI PCMCIA PC Card PC/104 Adapter Vadem VG-469 Rev 2.1 Dell
The Dell SBI-D2P is a PCMCIA PC Card controller module in the PC/104 form factor, using a SCSI interface for host connectivity. Built around the Vadem VG-469 controller chip, it provides up to four PC Card slots through a combination of Local and Remote Drive Modules, enabling flexible expansion in embedded and compact computing systems. It complies with PCMCIA Release 2 and supports card Types I, II, III, and IV with both 3.3V and 5V card voltage.
Specifications & What's Included
- Model: SBI-D2P
- Part Number: 715-0026-01
- Hardware Revision: Rev 2.1
- FCC ID: MBPSCM-SBI-D2P
- Form Factor: PC/104
- Host Interface: SCSI
- Controller Chipset: Vadem VG-469
- PCMCIA Standard: Complies with PCMCIA Release 2
- PC Card Slot Capacity: Up to four slots total via modular configuration
- Slot Module Options: One or two dual-slot Local Drive Modules; one or two dual-slot Remote Drive Modules; or one Local + one Remote dual-slot module
- Supported Card Types: Type I, Type II, Type III, and Type IV
- Card Voltage Support: 3.3V and 5V
- Plug-and-play driver support: Windows 98, Windows 2000
- Card only — no drive modules, cables, or mounting hardware included
Applications
The PC/104 form factor was the dominant standard for embedded and ruggedized computing throughout the 1990s and into the 2000s, used in industrial automation, medical instrumentation, military systems, and transportation applications where compact, stackable modules were essential. The SBI-D2P specifically addressed the need to add PCMCIA/PC Card expansion to PC/104 stacks — allowing these compact systems to accept modems, storage cards, wireless adapters, and other PC Card peripherals that were common in that era. The Vadem VG-469 was a widely used PCMCIA controller of the late 1990s, supporting the full range of card types and voltages at a time when PC Card was the dominant mobile peripheral interface before USB and CompactFlash took over. This module is relevant today primarily for maintenance of legacy PC/104-based embedded systems still operating in industrial or specialized environments.

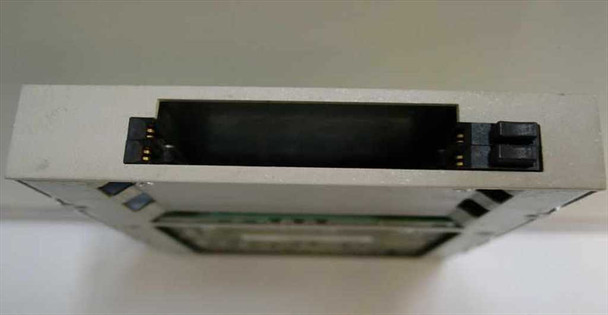

This Dell SBI-D2P PCMCIA PC/104 Adapter has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The metal housing shows light scuffing and surface wear consistent with normal use, and the PC Card slot opening and PC/104 edge connector both appear intact with no visible damage. The PCB internals, visible when the cover is opened for documentation purposes, show no signs of physical damage or burnt components. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
SBI-D2P |
MPN: |
715-0026-01 |
Secondary Model: |
457070 |
SKU: |
16475 |
Type: |
PCMCIA PC Card Controller Adapter |
Form Factor: |
PC/104 |
Interface Type: |
SCSI |
Controller Chipset: |
Vadem VG-469 |
PCMCIA Standard: |
PCMCIA Release 2 |
PC Card Slots: |
Up to 4 (via Local and Remote Drive Modules) |
Supported Card Types: |
Type I, Type II, Type III, Type IV |
Voltage Support: |
3.3V and 5V |
Compatible OS: |
Windows 98, Windows 2000 |
Hardware Revision: |
Rev 2.1 |
FCC ID: |
MBPSCM-SBI-D2P |
Seller Notes: |
Card only — no cables, drive modules, or mounting hardware included. |
Condition Notes: |
This Dell SBI-D2P PCMCIA PC/104 Adapter is in good used condition, pulled from a working environment. Housing shows light scuffing; PC Card slot and SCSI edge connector appear intact. Please view photos and contact us with any questions. |
