Western Digital WD Caviar AC24300 4.3GB 3.5" IDE Hard Drive Dell 0008038C
The Western Digital WD Caviar AC24300 is a 3.5-inch Enhanced IDE (EIDE) hard drive with 4.3 GB of formatted capacity. It was manufactured in November 1998 and carries the Dell OEM part number 0008038C (WD model AC24300-75LK, Rev A01). This drive uses the standard 40-pin IDE interface and 4-pin Molex power connector found in desktop PCs of the era.
Specifications & What's Included
- Manufacturer: Western Digital
- Series: WD Caviar
- Model: AC24300 (AC24300-75LK)
- Dell Part Number: 0008038C
- Revision: A01
- Capacity: 4.3 GB (4311.9 MB formatted)
- Form Factor: 3.5-inch
- Interface: Enhanced IDE (EIDE), 40-pin

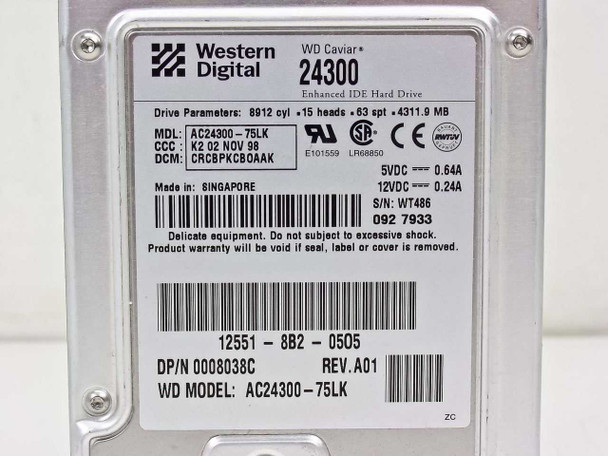

- Drive Parameters: 8912 cylinders, 15 heads, 63 sectors/track
- Power: 5VDC @ 0.64A, 12VDC @ 0.24A
- Country of Manufacture: Singapore
- Manufacture Date: November 1998
- Included: Drive only
Applications

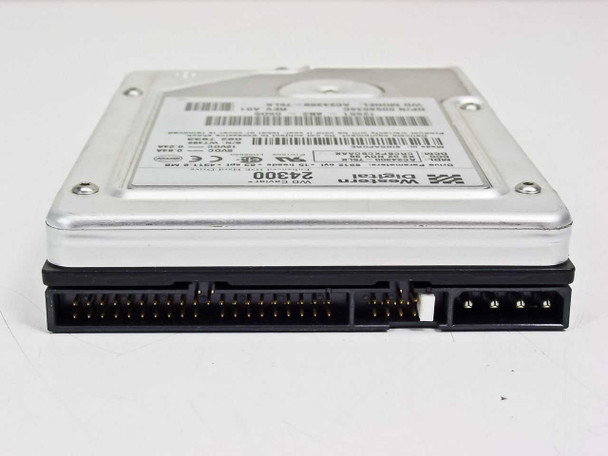

The WD Caviar series was one of the most widely deployed IDE hard drive families of the mid-to-late 1990s, found in Dell OptiPlex, Dimension, and Precision desktops as well as a broad range of IBM-compatible PCs from other manufacturers. The AC24300's 4.3 GB capacity was a common mid-range desktop configuration of the late 1990s, fitting within the 4.2 GB INT13 BIOS addressing limit that many systems of the era imposed without a BIOS update or overlay software. Today, drives like this are used primarily for restoring or maintaining period-correct legacy systems — particularly vintage DOS, Windows 95/98, and Windows NT workstations — where a contemporary hard drive would exceed the system BIOS's LBA addressing capacity. The standard 40-pin IDE interface and Molex power connector are compatible with any IDE-equipped desktop or external IDE enclosure from the era.
This Western Digital WD Caviar AC24300 4.3GB IDE hard drive has been tested, formatted, and wiped at our facility and is in good working condition. All previous data has been securely erased. The drive shows normal cosmetic wear consistent with prior use — the top label and metal casing are intact and legible with no significant damage. The 40-pin IDE data connector and 4-pin power connector are in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Western Digital |
Model: |
AC24300 |
MPN: |
AC24300-75LK |
Secondary Model: |
0008038C |
SKU: |
12261 |
Type: |
Internal Hard Drive (HDD) |
Series: |
WD Caviar |
Drive Type: |
Enhanced IDE (EIDE) |
Storage Capacity: |
4.3 GB (4311.9 MB) |
Form Factor: |
3.5" |
Interface: |
IDE / EIDE |
Cylinders: |
8912 |
Read/Write Heads: |
15 |
Sectors per Track: |
63 |
Power Requirements: |
5VDC 0.64A, 12VDC 0.24A |
Hardware Revision: |
Rev A01 |
Country/Region of Manufacture: |
Singapore |
Compatible With: |
Dell desktops and legacy IDE-equipped PCs |
Seller Notes: |
Drive only. Tested, formatted, and wiped. Dell P/N 0008038C, WD model AC24300-75LK. |
Condition Notes: |
This Western Digital WD Caviar AC24300 4.3GB IDE hard drive has been tested, formatted, and wiped. In good working condition; all previous data securely erased. Normal cosmetic wear. Connectors intact. |
