Dell 38506 Backplane 49447B06EN 5 ISA 2 PCI Slots Rev A00 Desktop Riser Card

(No reviews yet) Write a Review
SKU:
40954
MPN:
38506
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Dell 38506 backplane riser card 49447B06EN – top view showing 5 ISA and 2 PCI expansion slots with onboard controller ICs and Dell logo

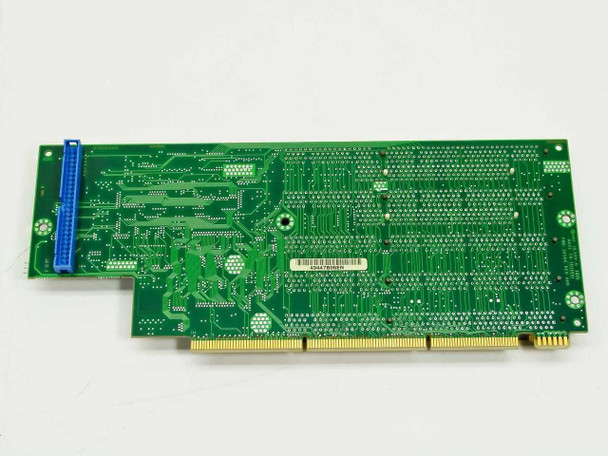

  • Dell 38506 backplane 49447B06EN – bottom (solder side) view showing PCB traces, barcode label, and edge connector
  • Dell 38506 backplane PCB marking – close-up showing PWB 38506 Rev A00, UL94V-0, NM2, Made in Taiwan label
  • Dell 38506 backplane slot edge connectors – close-up showing barcode labels A01 and part number 49447B06EN on ISA slot connectors
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

Dell 38506 Backplane 49447B06EN 5 ISA 2 PCI Slots Rev A00 Desktop Riser Card

Desktop backplane riser card providing seven total expansion slots for internal hardware upgrades. Designed to mount ISA and PCI interface cards in Dell desktop systems.

Specifications & What's Included

  • Model: Dell 38506 | MPN: 49447B06EN
  • 5 ISA slots + 2 PCI slots (7 total expansion slots)
  • Hardware Revision: A00
  • Bus Interface: ISA, PCI
  • Form Factor: Desktop Backplane/Riser Card
  • Manufactured in Taiwan
  • Board only; no cables or accessories included

Applications

Backplane riser cards route expansion slots in desktop computers, enabling direct insertion of ISA and PCI cards for additional I/O, storage controllers, or specialized hardware. This Dell 38506 board was used in Dell desktop workstations and servers from the late 1990s through early 2000s, supporting legacy ISA peripherals alongside PCI expansion hardware on the same card.

Condition: Used
This Dell 38506 Backplane Riser Card (P/N 49447B06EN) has been inspected and appears to be in good used condition. It has not been powered or tested at our facility. The PCB looks clean with no visible cracks, broken traces, or damaged slot connectors. Normal light wear consistent with prior use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dell
Model:
38506
MPN:
49447B06EN
Secondary Model:
PWB 38506
SKU:
40954
Type:
Backplane Riser Card
Hardware Revision:
Rev A00
Number of ISA Slots:
5
Number of PCI Slots:
2
Total Expansion Slots:
7 (5 ISA, 2 PCI)
Form Factor:
Desktop Backplane / Riser Card
Bus Interface:
ISA, PCI
Country/Region of Manufacture:
Taiwan
Condition:
Used – Inspected, Not Bench-Tested
Seller Notes:
Board only. No cables or accessories included.
Compatible With:
Dell desktop systems using 38506 backplane
Condition Notes:
Dell 38506 backplane 49447B06EN inspected, appears in good used condition. Not bench-tested at our facility. PCB clean, slot connectors intact. Please view photos and contact us with any questions.
