Description
NEC ND-1100A Dell 0R0285 DVD+R/RW 4x IDE Black 5.25 Internal Optical Drive

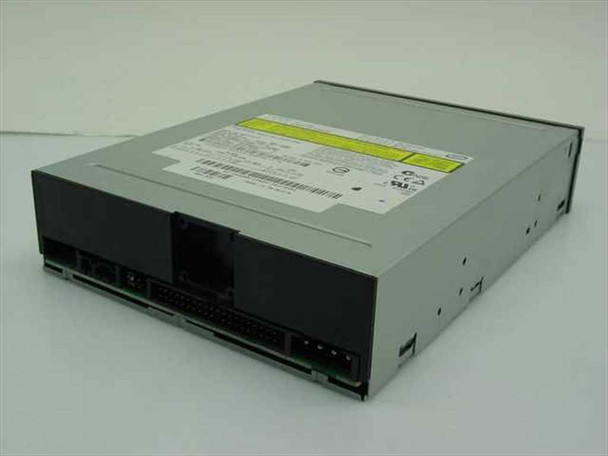

The NEC ND-1100A is a 5.25-inch half-height internal DVD+R/RW optical drive sold as a Dell OEM unit under part number 0R0285. It connects via a standard 40-pin IDE (ATAPI) interface and uses a 4-pin Molex power connector, making it compatible with any desktop system of that era equipped with an IDE controller. The drive features a black tray-loading bezel with a front-panel headphone jack and volume wheel.
Specifications & What's Included
- Manufacturer: NEC
- Model: ND-1100A
- Dell OPN: 0R0285 (full Dell tag: MY-0R0285)
- Type: Internal DVD+R/RW optical drive
- DVD+R write speed: 4x
- Interface: 40-pin IDE (ATAPI)
- Power connector: 4-pin Molex (+5V, +12V)
- Form factor: 5.25-inch half-height internal
- Bezel color: Black, tray-loading
- Front panel: Headphone jack, volume wheel, manual eject pinhole
- Country of manufacture: Malaysia
- Drive only — no IDE cables or software included
Applications
The NEC ND-1100A was among the early generation of DVD+R/RW writers released around 2002–2003, when DVD recordable drives were beginning to replace CD-RW as the standard for desktop optical storage. IDE-interface DVD burners like this one were standard equipment in desktop PCs of the Pentium 4 and Athlon XP era, fitting into any 5.25-inch drive bay and connecting to the motherboard's secondary IDE channel. The ND-1100A supported the DVD+R and DVD+RW formats backed by the DVD+RW Alliance, as distinct from the competing DVD-R/RW format. These drives are still useful today for legacy desktop systems that require an IDE optical drive, as well as for hobbyists maintaining period-correct builds or older workstations that predate SATA.
This NEC ND-1100A DVD+R/RW internal optical drive (Dell OPN 0R0285) was pulled from a working desktop environment where it was previously in service. The black bezel shows normal light wear consistent with a used drive. The chassis and connectors appear intact with no visible damage. Please review our photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
NEC |
Model: |
ND-1100A |
MPN: |
ND-1100A |
Secondary Model: |
0R0285 |
Dell Part Number: |
MY-0R0285 |
SKU: |
24284 |
Type: |
Internal DVD+R/RW Optical Drive |
Interface: |
IDE (ATAPI) |
Write Speed (DVD+R): |
4x |
Form Factor: |
5.25" Half-Height Internal |
Color: |
Black |
Connector: |
40-pin IDE + 4-pin Molex Power |
Country/Region of Manufacture: |
Malaysia |
Compatible With: |
Dell desktops and standard ATX/IDE systems |
Power Requirements: |
+5V, +12V (4-pin Molex) |
Seller Notes: |
Drive only; no cables or software included. |
Condition Notes: |
This NEC ND-1100A (Dell 0R0285) DVD+R/RW IDE drive was pulled from a working environment. The black bezel shows normal light wear; connectors appear intact. Please review photos and contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
