Description
Dell 07N2477 Inspiron 5100 LCD Inverter Board F8595L EC H31012 Laptop Part

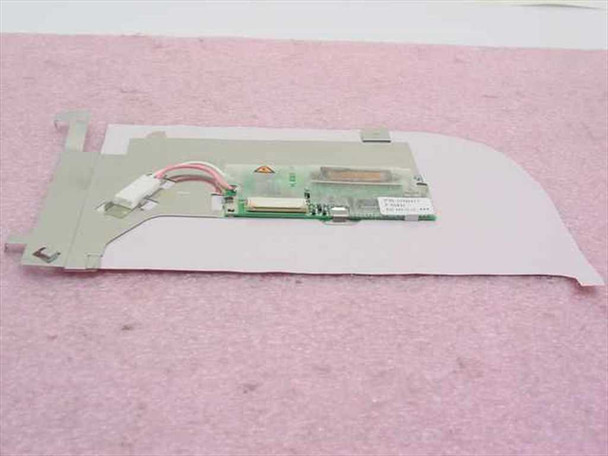

The Dell 07N2477 is an OEM LCD inverter board designed for the Dell Inspiron 5100 laptop. This board supplies the high-voltage AC signal needed to drive the CCFL backlight tube in the laptop's LCD panel. It is mounted on a shaped metal backing plate and connects to the display assembly via a white multi-pin ribbon connector and a pink wire harness.
Specifications & What's Included
- Part Number: 07N2477 (Dell OEM)
- Secondary Part Number: F8595L
- Engineering Change: EC H31012
- Type: CCFL LCD Backlight Inverter Board
- Compatible With: Dell Inspiron 5100
- Includes: Inverter PCB mounted on original metal backing/shield plate
- Connectors: White multi-pin flat ribbon connector; pink wire harness with 2-pin connector
- Notable components: High-voltage transformer (orange-wound, visible on PCB)
Applications
LCD inverter boards like the 07N2477 are used in laptops from the early-to-mid 2000s that use cold cathode fluorescent lamp (CCFL) backlights. The Dell Inspiron 5100 was a 15-inch Pentium 4-based consumer laptop released in 2002–2003. The inverter board is a common failure point when a laptop display goes dark or dim while still showing a faint image — symptoms that indicate the backlight or its inverter has failed. Replacing the inverter is a standard repair for technicians and DIY users maintaining these older machines. CCFL-based inverters like this one are still sought after for repair of legacy Dell laptops in active service or kept as spares.

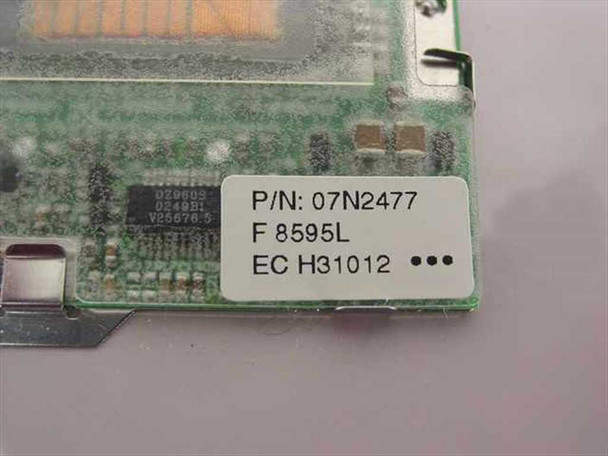

This Dell 07N2477 Inspiron 5100 LCD Inverter Board has been inspected and appears to be in good used condition. The PCB shows no visible damage, and the part number label (P/N 07N2477, F8595L, EC H31012) is clearly legible. The board is mounted on its original metal backing plate. It was pulled from a used laptop and has not been powered up or tested at our facility. Typical light wear from prior use is present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
07N2477 |
MPN: |
07N2477 |
Secondary Model: |
F8595L |
Type: |
LCD Inverter Board |
SKU: |
23414 |
Compatible With: |
Dell Inspiron 5100 |
EC / Engineering Change: |
H31012 |
Form Factor: |
Laptop / Notebook Internal Component |
Seller Notes: |
Inverter board with metal backing plate. No cables included. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Dell 07N2477 Inspiron 5100 LCD Inverter Board has been inspected and appears to be in good used condition. Pulled from a used laptop; not tested at our facility. Board and backing plate intact with no visible damage. |
