Dell STB S3 Trio64V+ 86C765 PCI VGA Video Card 00097886 210-0200-002 1996

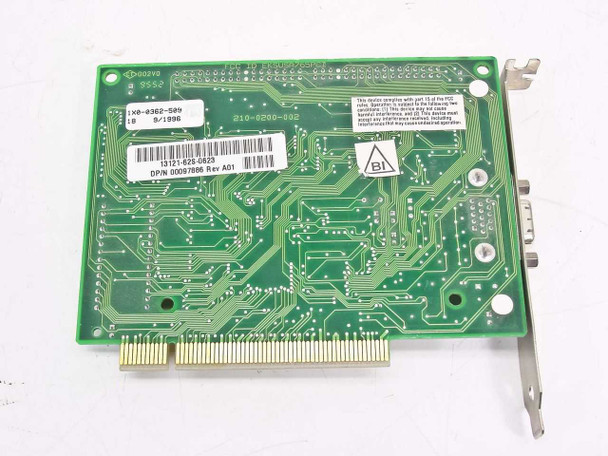

This is a Dell-branded PCI VGA video card manufactured by STB Systems in September 1996, built around the S3 Trio64V+ (86C765) graphics controller. The S3 Trio64V+ was S3's integrated 2D accelerator and DAC chip widely used in business desktop PCs of the mid-to-late 1990s, combining the graphics engine and RAMDAC on a single die for a compact, cost-effective solution. This card carries Dell part numbers DP/N 00097886 Rev A01 and 210-0200-002, with board reference 1X0-0362-509.
Specifications & What's Included
- GPU / Chipset: S3 Trio64V+ (86C765), HIC18E stepping
- Bus Interface: PCI (full-height bracket)
- Video Output: 1× VGA (HD DB15 / 15-pin D-Sub)
- Dell Part Number (DP/N): 00097886 Rev A01
- Board Part Number: 210-0200-002
- Reference Number: 1X0-0362-509
- PCB Revision: Rev B C3
- Manufacturer: STB Systems, Inc. (manufactured for Dell)
- Date Code: 9/1996
- Country of Manufacture: Taiwan
- Includes: card only (no driver media)
Applications
The S3 Trio64V+ was a staple graphics chip in business-class desktop PCs of the mid-1990s, appearing in systems from Dell, Compaq, HP, and other major OEMs. It provided hardware-accelerated 2D graphics under Windows 3.1, Windows 95, and Windows NT 4.0, making it the standard display solution for corporate workstations and point-of-sale systems of that era. This card is a direct fit for Dell OptiPlex, Dimension, and similar mid-1990s PCI-bus desktop systems that originally shipped with this configuration. Today these cards are sought by collectors and hobbyists restoring period-correct 1990s PCs, as well as anyone maintaining legacy Dell desktops that require a matching original display adapter. DOS and early Windows compatibility is excellent, and S3 drivers remain widely available from archive sources.

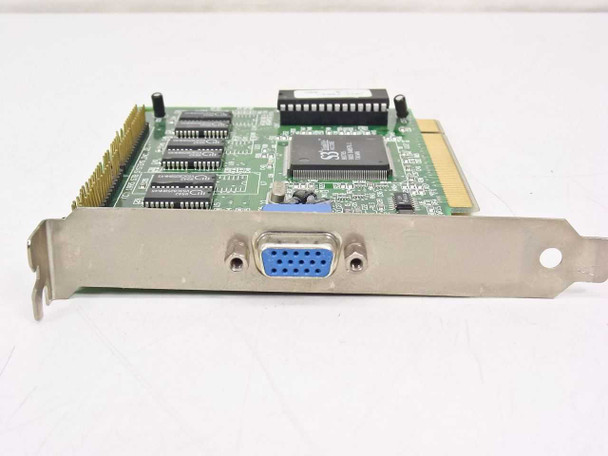

This Dell STB S3 Trio64V+ PCI video card (DP/N 00097886) has been tested and is in good working condition. The PCB is clean and green with no visible damage, cracked traces, or burnt components. The VGA output connector on the bracket is intact and undamaged. The card shows light handling wear consistent with its mid-1990s vintage, but is in solid overall shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
00097886 |
MPN: |
00097886 |
Secondary Model: |
210-0200-002 |
Type: |
PCI VGA Video Card |
GPU: |
S3 Trio64V+ (86C765) |
Chipset: |
S3 Trio64V+ 86C765 |
Bus Interface: |
PCI |
Video Output: |
VGA (HD DB15) |
Number of Outputs: |
1 |
Compatible With: |
Dell OptiPlex, Dimension, and similar mid-1990s PCI desktop systems |
Manufacturer: |
STB Systems (for Dell) |
Part Number: |
1X0-0362-509 |
Revision: |
Rev A01 |
Date Code: |
9/1996 |
Form Factor: |
Full-Height PCI Card |
SKU: |
44574 |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
This Dell STB S3 Trio64V+ PCI video card (DP/N 00097886) has been tested and is in good working condition. PCB is clean with no visible damage; VGA connector is intact. Light handling wear consistent with age. |
