Description
Dell Latitude C/Dock PDL 8219P Docking Station VGA Serial Parallel PCI Ethernet
The Dell Latitude C/Dock (Model PDL, Assembly Part 8219P) is a full-featured desktop docking station designed for Dell Latitude C Series laptops. It connects via a proprietary high-density docking connector on the base of the laptop, instantly expanding connectivity to a full suite of desktop peripherals without plugging in individual cables. The docking station also provides a media bay that accepts an optional CD-ROM or floppy diskette drive module.
Specifications & What's Included
- Model: PDL (Dell Latitude C/Dock)
- Assembly Part Number: 8219P
- Input: 20V DC, 3.5A (AC adapter not included)
- Compatible with: Dell Latitude C Series laptops (C400, C500, C510, C600, C610, C800, C810, C840 and related)
- Video Output: 1x VGA external monitor port
- Serial Port: 1x DB9 serial port
- Parallel Port: 1x parallel port (Centronics/DB25)
- Mouse/Keyboard: PS/2 compatible mouse port
- Network: 10/100 Fast Ethernet (RJ-45)
- USB Ports: 2x USB ports (visible on rear panel)
- Expansion: 1x PCI expansion slot
- Media Bay: Accepts optional CD-ROM or diskette drive module

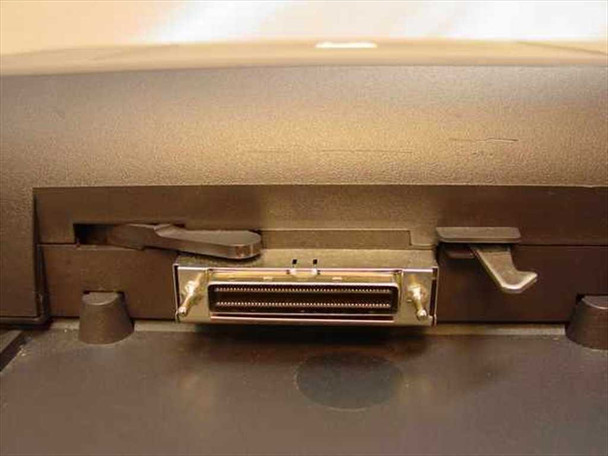

- Proprietary docking connector on platform for laptop attachment
- Certifications: FCC, UL, CE, TÜV, NOM, IC Class B ICES-3
- Docking station only — no AC adapter, no drive modules, no additional cables included
Applications
The Dell Latitude C/Dock was designed to give mobile users a seamless transition between desk and road. By dropping a compatible Latitude C Series laptop into the dock, users gained instant access to a full desktop port set — external monitor, network, legacy serial and parallel peripherals, and PCI expansion — without reconnecting individual cables. This docking station dates from the late 1990s to early 2000s, when Dell's Latitude C Series was a dominant business laptop line and port-replicating docks like this were standard issue in corporate and educational IT environments. Today, C/Dock units are primarily sought by organizations still maintaining legacy Latitude C Series systems, as well as collectors of early-2000s Dell hardware. The PCI expansion slot was a notable feature, allowing a single PCI card (such as a NIC or modem) to be installed in the dock itself rather than requiring a separate desktop machine.
This Dell Latitude C/Dock PDL 8219P laptop docking station is in used condition. It has been inspected and shows normal cosmetic wear consistent with prior use. The unit is out of its original box and comes only with what is shown in the photos — no AC adapter is included. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Dell |
Model: |
PDL |
MPN: |
8219P |
Secondary Model: |
C/Dock |
SKU: |
14618 |
Type: |
Laptop Docking Station |
Compatible With: |
Dell Latitude C Series Laptops |
Video Output: |
1x VGA (External Monitor Out) |
Serial Port: |
1x Serial Port (DB9) |
Parallel Port: |
1x Parallel Port |
Mouse/Keyboard Port: |
PS/2 Compatible Mouse Port |
Network: |
10/100 Ethernet (RJ-45) |
Expansion Slots: |
1x PCI Slot |
Media Bay: |
Media Bay for CD or Diskette Drive |
Power Input: |
20V DC, 3.5A |
AC Adapter: |
Not Included |
Form Factor: |
Desktop Docking Station |
Seller Notes: |
Docking station only — no AC adapter included. No additional cables or accessories. |
Country/Region of Manufacture: |
China |
Condition Notes: |
This Dell Latitude C/Dock PDL 8219P docking station is in used condition with normal cosmetic wear. Out of box; no AC adapter included. Comes only with what is shown in the photos. Please contact us with any questions. |
