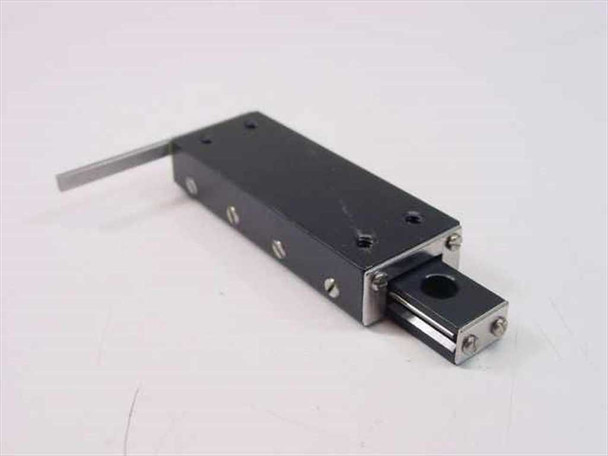

Del-Tron Linear Stage 20x54mm 25mm Stroke 10.4mm Height Miniature Slide
This Del-Tron miniature linear stage offers a compact 20x54mm footprint with a 25mm travel stroke and an exceptionally low 10.4mm profile height. Del-Tron is a U.S. manufacturer well known for small, precise linear motion components used in laboratory, optical, and instrumentation applications. The stage features an anodized aluminum body with stainless steel drive and adjustment hardware, providing smooth, repeatable linear motion in a space-constrained form factor.
Specifications & What's Included
- Brand: Del-Tron
- Platform dimensions: 20 x 54 mm
- Stroke: 25 mm
- Height (profile): 10.4 mm
- Body: anodized aluminum
- Drive rod / adjustment screw: stainless steel
- Carriage locking mechanism: thumbscrew clamp visible on carriage end
- Mounting holes: countersunk on top platform and body (visible in photos)
- Drive type: manual lead screw / thumbscrew
- Country of manufacture: United States
- Includes: stage only — no additional accessories
Applications
Del-Tron miniature linear stages like this one are widely used in precision optical setups, laser beam steering, microscopy, semiconductor inspection equipment, and laboratory instrumentation where a compact, low-profile slide with smooth manual travel is needed. The 20x54mm footprint and 10.4mm height make this stage well suited for mounting in tight spaces on optical breadboards, custom fixtures, or instrument assemblies. The 25mm stroke covers a useful range for fine sample positioning and component alignment tasks. Del-Tron stages of this size are a common choice for research labs, OEM instrument builders, and machine builders needing reliable manual positioning in a small package.
This Del-Tron miniature linear stage (20x54mm, 25mm stroke) is in good used condition. It was pulled from a working environment where it was previously in use. The anodized aluminum body shows minor surface wear consistent with normal lab handling, and all visible mechanical components — the carriage, drive rod, and adjustment screws — appear clean and intact. Please review our photos for a full view of cosmetic condition, and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Del-Tron |
Model: |
20x54mm Linear Stage |
MPN: |
20x54 |
SKU: |
32193 |
Type: |
Miniature Linear Stage / Precision Slide |
Stroke: |
25 mm |
Height (Profile): |
10.4 mm |
Platform Dimensions: |
20 x 54 mm |
Slide Type: |
Dovetail / Ball Bearing Linear Stage |
Drive Type: |
Manual (thumbscrew / lead screw) |
Material: |
Anodized aluminum body, stainless steel components |
Seller Notes: |
Stage only — no additional accessories included. |
Country/Region of Manufacture: |
United States |
Application: |
Precision positioning, optics, lab instrumentation |
Form Factor: |
Miniature / Low-Profile |
Condition Notes: |
This Del-Tron miniature linear stage (20x54mm, 25mm stroke) is in good used condition, pulled from a working environment. Minor surface wear on the anodized body; carriage, drive rod, and screws appear intact. Please contact us with any questions. |
