Description
DEC Digital RA92 Hard Drive Enclosure 54-17769-02 SDI Disk Card H7142 No HDD
The DEC (Digital Equipment Corporation) RA92 is a high-capacity hard drive enclosure/storage subsystem designed for use with DEC VAX and VMS computing environments. This unit is the external chassis that houses the drive mechanisms and associated controller hardware — the hard drives themselves are not included. It contains the SDI (Storage Device Interconnect) disk card assembly and supporting electronics required to interface RA-series drives with VAX host systems.
Specifications & What's Included
- Model: DEC / Digital RA92
- SDI Disk Card Assembly: 54-17769-02 (capacity for two cards)
- Installed Cards: 54-17691-02 and 54-17771-02
- Fan Assembly: 12-23970-01
- Control Panel: 30-24453-01
- Power Supply: Digital H7142, P/N 36-31676-01-A01 (Made in Mexico)
- Input Voltage: 100–120V / 220–240V AC
- Input Frequency: 50–60 Hz
- Power Supply Rating: 366W
- Input Current: 4.0A (100–120V) / 2.0A (220–240V)
- DC Output Voltages: +5.1V / 6.5A, –5.2V / 3.6A, +12V / 0.5A, –12V / 0.8A, +24V / 4.7A, –24V / 3.1A
- Certifications: UL, CSA, IEC 380 and 435, TÜV
- Country of Manufacture: USA (enclosure); Mexico (power supply)
- Hard drives NOT included — enclosure only
Applications
The RA92 is a disk drive subsystem from Digital Equipment Corporation dating from the late 1980s to early 1990s, designed for use with DEC VAX minicomputer systems running the VMS operating system. It uses the SDI (Storage Device Interconnect) bus, DEC's proprietary high-performance storage interface used across the RA-series drive family (including the RA70, RA80, RA81, RA82, and RA90/RA92). In a VAX environment, the RA92 enclosure connected to an HSC (Hierarchical Storage Controller) or a KDA50/UDA50 controller, providing mass storage for VAX clusters and standalone VAX systems. The RA92 drive itself offered roughly 1.5GB of formatted capacity, which was substantial for enterprise storage of that era. Today these enclosures are sought by VAX enthusiasts, legacy system maintainers, and institutions still running VMS workloads who need replacement chassis or controller card assemblies.

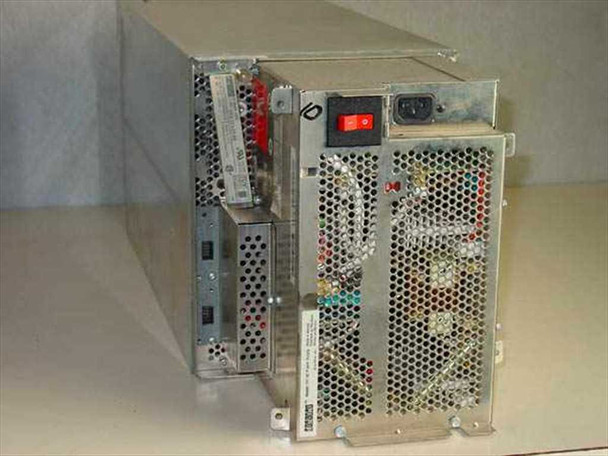

This DEC Digital RA92 Hard Drive Enclosure has been inspected and appears to be in good used condition. The enclosure does not include hard drives — it is being sold as a chassis/subsystem only. Included components are the 1.5GB SDI Disk Card Assembly (54-17769-02, which holds two cards: 54-17691-02 and 54-17771-02), Fan Assembly (12-23970-01), and Control Panel (30-24453-01). The Digital H7142 power supply (P/N 36-31676-01-A01) is installed and visible. The exterior shows typical wear for equipment of this age, including general scuffing on the chassis. It was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Digital Equipment Corporation (DEC) |
Model: |
RA92 |
MPN: |
54-17769-02 |
Type: |
Hard Drive Enclosure / Storage Subsystem |
SKU: |
12279 |
Included Components: |
SDI Disk Card Assy 54-17769-02, Fan Assy 12-23970-01, Control Panel 30-24453-01 |
SDI Disk Card Assembly: |
54-17769-02 (holds 2 cards: 54-17691-02 & 54-17771-02) |
Power Supply Model: |
Digital H7142, P/N 36-31676-01-A01 |
Input Voltage: |
100-120V / 220-240V AC |
Input Frequency: |
50-60 Hz |
Power Supply Wattage: |
366W |
Input Current: |
4.0A / 2.0A |
Output Voltages: |
+5.1V, -5.2V, +12V, -12V, +24V, -24V |
Hard Drives Included: |
No — enclosure only |
Compatible With: |
DEC VAX / VMS storage systems using RA-series drives |
Country/Region of Manufacture: |
USA (enclosure); Mexico (power supply) |
Form Factor: |
Rackmount / Standalone Pedestal |
Seller Notes: |
Enclosure only — no hard drives included. Includes SDI Disk Card Assembly, fan assembly, control panel, and H7142 power supply. |
Condition Notes: |
This DEC Digital RA92 Hard Drive Enclosure is in good used condition. No hard drives included — enclosure only. Includes SDI Disk Card Assembly 54-17769-02, fan assembly, control panel, and H7142 power supply. Pulled from a working environment. |
