DEC 1214659-00 DC Permanent Magnet Motor 24V 1580 RPM 62.5mm Dual Flange

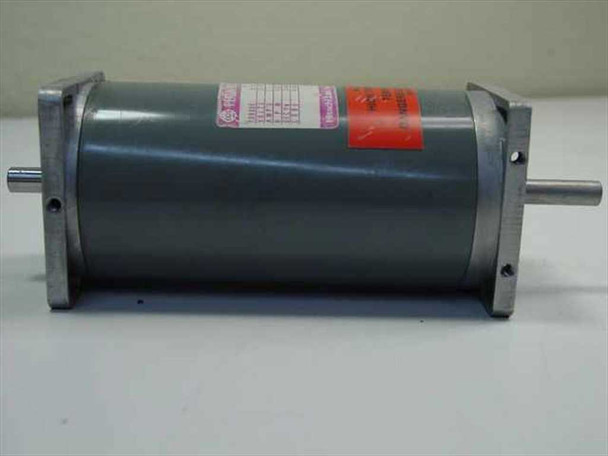

The DEC 1214659-00 is a brushed DC permanent magnet (PMDC) motor with dual square end flanges for rigid face-mount installation. It runs at approximately 1580 RPM at no-load when driven at 24V DC, drawing around 2.2A at idle. The cylindrical body is housed between two 62.5mm square aluminum end flanges, and the output shaft includes a keyway track on one end for positive rotational coupling to a load.
Specifications & What's Included
- Part Number: 1214659-00
- Motor Type: Brushed DC Permanent Magnet (PMDC)
- Supply Voltage: 24V DC
- No-Load Speed: ~1580 RPM
- No-Load Current: ~2.2A

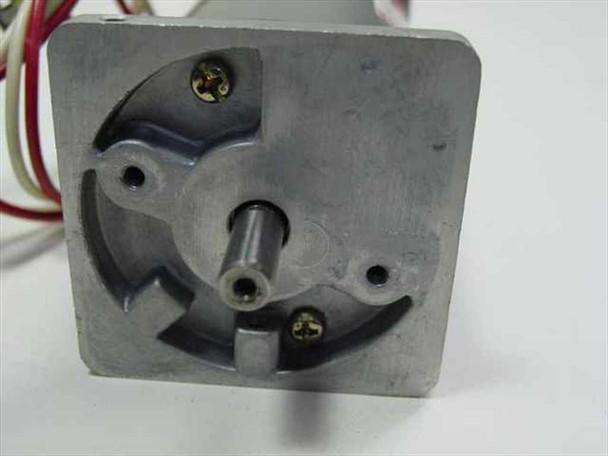

- Flange Size: 62.5mm square — both ends

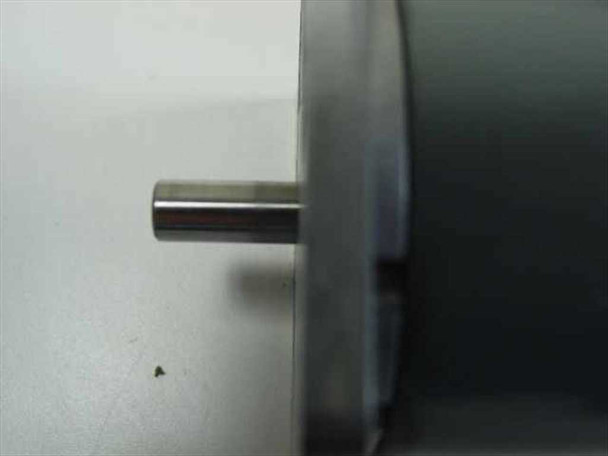

- Shaft Dimensions: 30mm length × 18mm × 7.99mm
- Shaft Keyway: 1.42mm wide wedge/key track on one shaft end
- Mounting: Dual end-flange mount configuration

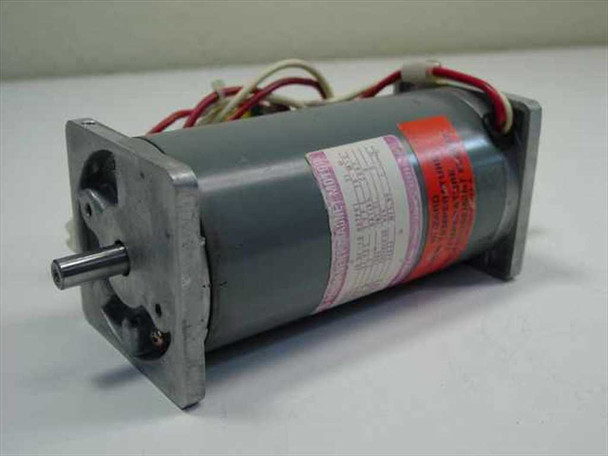

- Wiring: Multi-conductor lead wires attached (red/white/black visible)
Applications
DC permanent magnet motors like the DEC 1214659-00 are widely used in light industrial automation, medical devices, laboratory instrumentation, robotics, and precision positioning equipment. The PMDC design provides a linear speed-torque relationship and straightforward speed control via variable voltage or PWM — making these motors common in applications where controllable, consistent rotational output is needed without complex commutation electronics. The dual square end-flange configuration is typical of motors designed for inline or face-mount installation in OEM assemblies, conveyors, pumps, actuators, and test fixtures. The keyway on the output shaft allows a positive mechanical coupling (via key or wedge) to prevent shaft slippage under load, which is standard practice in driven-load applications requiring precise torque transmission.
This DEC 1214659-00 DC Permanent Magnet Motor was pulled from a working environment where it had been in active use. It has been visually inspected and photographed. The motor body shows typical wear for a used item — the gray cylindrical housing has light surface wear and the labels show some aging, but there is no obvious physical damage. Lead wires are attached. Cosmetic wear is normal for used surplus equipment; please review all photos to assess condition for your application. Please contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
DEC |
Model: |
1214659-00 |
MPN: |
1214659-00 |
Type: |
DC Permanent Magnet Motor |
SKU: |
34982 |
Voltage: |
24V DC |
No-Load Speed: |
~1580 RPM (idling at 24V) |
No-Load Current: |
~2.2A at 24V |
Flange Size: |
62.5 mm square (both ends) |
Shaft Dimensions: |
30mm length x 18mm x 7.99mm |
Shaft Feature: |
1.42mm wide keyway/wedge track on one end |
Motor Type: |
Brushed DC Permanent Magnet (PMDC) |
Form Factor: |
Cylindrical body with dual square end flanges |
Mounting: |
Dual end-flange mount, 62.5mm square |
Seller Notes: |
Motor only — lead wires attached; no mounting hardware included |
Condition Notes: |
This DEC 1214659-00 DC Permanent Magnet Motor was pulled from a working environment. Visually inspected — housing shows light surface wear, labels show aging, no obvious damage. Lead wires attached. |
