Description

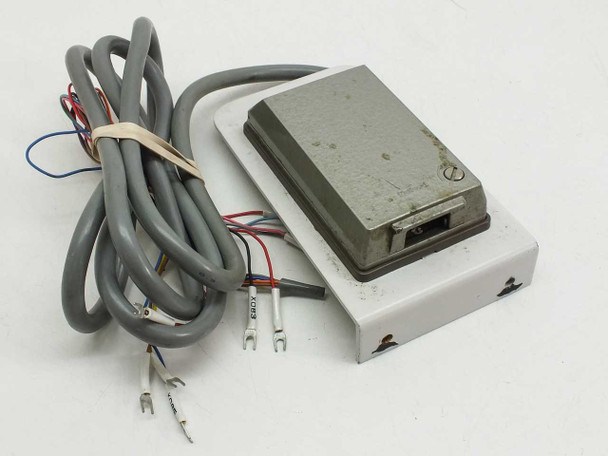

DB-15 Female Port Locking Access Panel Cover w/ Multi-Conductor Cable WN7873
This is a metal access panel assembly with a DB-15 female D-sub 15-pin connector port and flip-lid locking cover. It provides port protection and cable management for industrial D-sub installations.
Specifications & What's Included
- Connector Type: DB-15 Female (D-Sub 15-pin)
- Cover Style: Metal flip-lid with locking hinge
- Housing: Metal lid, white painted metal base panel

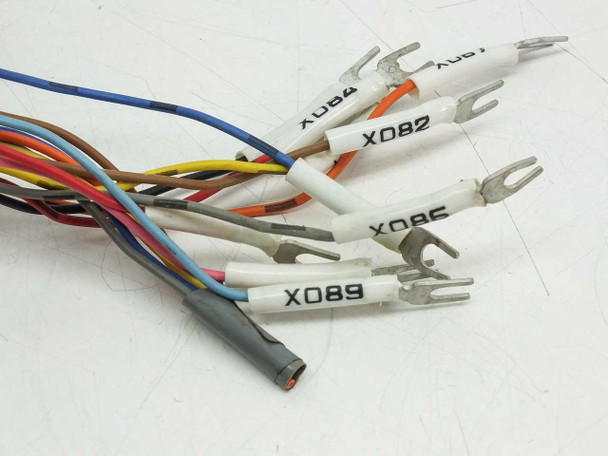

- Cable: Multi-conductor color-coded with labeled spade fork terminals (X089, X080, X082, X084, X08Y)
- Model/MPN: WN7873
Applications
DB-15 locking access panels are used in industrial control systems, telecommunications equipment, and data acquisition installations to protect connector ports and manage cable routing. These assemblies are commonly found in legacy factory automation, networking hardware, and industrial monitoring systems requiring secured connector access.
Condition: Used

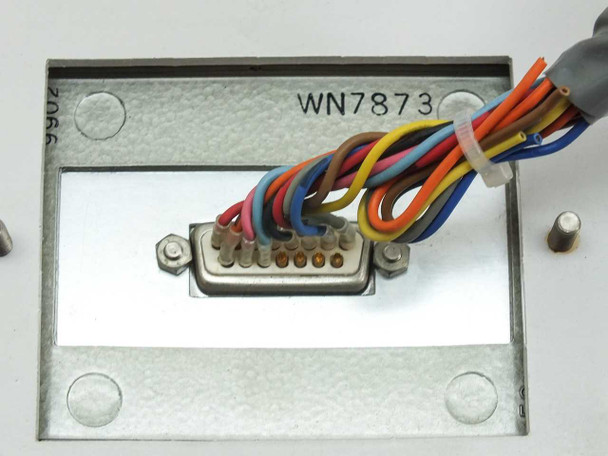

This DB-15 locking access panel cover (WN7873) has been inspected and is in good used condition. It was pulled from a working environment. The white metal base panel shows some surface marks and minor soiling consistent with industrial use, and the hinged metal flip lid shows light wear and surface grime on the exterior. The DB-15 female connector inside is intact and the lid latch mechanism appears functional. The attached multi-conductor cable has color-coded conductors with labeled spade fork terminals (marked X089, X080, X082, X084, X08Y among others) and is included as shown. Please view our photo set and contact us if you have any questions.
This DB-15 locking access panel cover (WN7873) has been inspected and is in good used condition. It was pulled from a working environment. The white metal base panel shows some surface marks and minor soiling consistent with industrial use, and the hinged metal flip lid shows light wear and surface grime on the exterior. The DB-15 female connector inside is intact and the lid latch mechanism appears functional. The attached multi-conductor cable has color-coded conductors with labeled spade fork terminals (marked X089, X080, X082, X084, X08Y among others) and is included as shown. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
WN7873 |
MPN: |
WN7873 |
Type: |
DB-15 Locking Access Panel Port Cover |
SKU: |
46701 |
Connector Type: |
DB-15 Female (D-Sub 15-pin) |
Number of Pins: |
15 |
Cover Style: |
Flip-lid locking hinged cover |
Cable Included: |
Yes — multi-conductor color-coded cable with labeled spade terminals |
Cable Termination: |
Spade fork terminals, labeled (X089, X080, X082, X084, X08Y) |
Housing Material: |
Metal lid, white painted metal base panel |
Connector Gender: |
Female |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes panel with DB-15 female port, locking flip lid, and attached labeled multi-conductor cable with spade terminals. |
Application: |
Industrial D-sub 15 port access protection and cable management |
Compatible With: |
DB-15 / D-Sub 15-pin connector installations |
Condition Notes: |
This DB-15 locking access panel cover (WN7873) has been inspected and is in good used condition, pulled from a working environment. DB-15 connector and lid latch appear intact. Includes attached multi-conductor labeled cable with spade terminals. |
