Dayton 5K280C 1/4 HP Split Phase Motor LeAnCo G6-36-R14 Ventilating Exhauster
This Dayton 5K280C is a single-phase split phase induction motor paired with a LeAnCo, Inc. G6-36-R14 squirrel cage ventilating exhauster, all mounted on a steel plate as a complete unit. The motor drives the exhauster directly, making this a self-contained ventilation and exhaust assembly ready for ducted installation.
Specifications & What's Included
- Manufacturer: Dayton Electric Mfg. Co., Niles, IL USA
- Motor Model: 5K280C
- Motor Type: Split Phase
- Horsepower: 1/4 HP
- Speed: 1725 RPM
- Voltage: 115V
- Amperage: 5.4 A (SFA 5.4)
- Phase: Single Phase (PH 1)
- Frequency: 60 Hz
- Frame: 56Z
- Enclosure: ODP (Open Drip Proof)
- Bearing Type: Sleeve
- Insulation Class: A
- Service Factor: 1.0
- KVA Code: 5
- Maximum Ambient Temperature: 40°C
- Duty: Continuous
- MTR REF: 5A5SK08-5430
- Exhauster Manufacturer: LeAnCo, Inc. (Kellerton, IA)
- Exhauster Model: G6-36-R14 Ventilating Exhauster (squirrel cage centrifugal type)
- Configuration: Motor and exhauster mounted on steel plate as a complete assembly
- Power leads: attached (bare wire ends)
Applications
Split phase motors of this type are widely used to drive small blowers, fans, and exhaust units in light industrial and commercial ventilation applications. The squirrel cage centrifugal exhauster moves air through ductwork and is commonly used for fume exhaust, equipment cooling, grain bin ventilation, livestock building ventilation, and similar low-to-medium-pressure air-moving tasks. The 1/4 HP, 1725 RPM rating suits continuous-duty ventilation service. LeAnCo ventilating exhausters were a regional Midwest manufacturer's product commonly found in agricultural and light industrial settings from the mid-twentieth century onward. This type of direct-drive motor-and-blower assembly mounts into a wall or partition and connects to ductwork through its discharge tube for rooftop or wall exhaust applications.

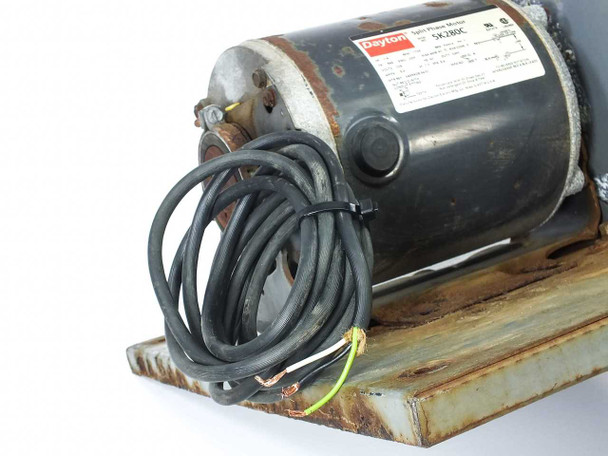

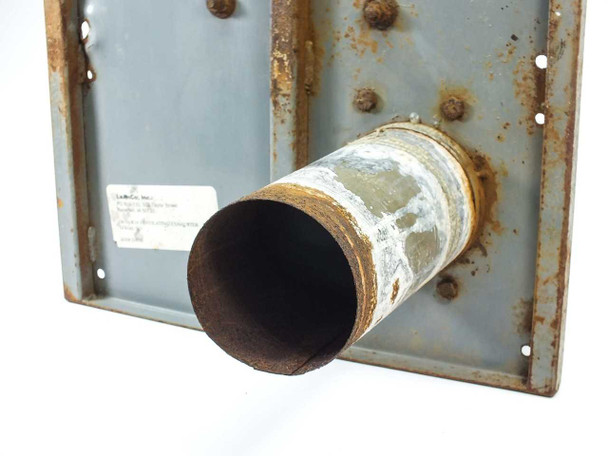

This Dayton 5K280C Split Phase Motor with LeAnCo G6-36-R14 squirrel cage ventilating exhauster has not been powered up or tested at our facility, but was pulled from a working environment where it was previously in service. The unit shows significant cosmetic wear consistent with industrial use: heavy surface rust on the steel mounting plate and exhauster discharge tube, paint loss and peeling on the blower housing, and general grime throughout. The Dayton motor itself appears structurally intact with its nameplate legible and power leads intact (bare wire ends). The blower wheel is visible through the discharge opening. This unit is sold as-is in the condition shown. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Dayton |
Model: |
5K280C |
MPN: |
5K280C |
Secondary Model: |
G6-36-R14 |
SKU: |
49486 |
Type: |
Split Phase Motor with Squirrel Cage Ventilating Exhauster |
Horsepower: |
1/4 HP |
Voltage: |
115V |
Amperage: |
5.4 A |
Phase: |
Single Phase |
Frequency: |
60 Hz |
RPM: |
1725 RPM |
Frame: |
56Z |
Enclosure: |
ODP (Open Drip Proof) |
Insulation Class: |
A |
Service Factor: |
1.0 |
Max Ambient Temperature: |
40°C |
Duty: |
Continuous |
Bearing Type: |
Sleeve |
KVA Code: |
5 |
Motor MTR REF: |
5A5SK08-5430 |
Exhauster Manufacturer: |
LeAnCo, Inc. |
Exhauster Model: |
G6-36-R14 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes Dayton 5K280C motor with attached LeAnCo G6-36-R14 ventilating exhauster mounted on steel plate — no additional accessories. |
Condition Notes: |
This Dayton 5K280C Split Phase Motor with LeAnCo G6-36-R14 ventilating exhauster was pulled from a working environment. Not tested at our facility. Shows heavy rust on the mounting plate and exhauster tube, paint loss on the blower housing. |
