Dayton 4FN65 3HP Premium Efficiency Motor 230/460V 3Ph TEFC 182T Frame 3530 RPM
The Dayton 4FN65 is a 3HP three-phase premium efficiency electric motor designed for a wide range of industrial and commercial applications. Built to NEMA 182T frame standards, it features a totally enclosed fan-cooled (TEFC) enclosure for reliable operation in dusty or damp environments. This unit is new and has never been installed, and comes with a full set of accessories including a mounting base, V-belt sheave pulley, Browning QD bushing, and an installation and maintenance guide.
Specifications & What's Included
- Model: Dayton 4FN65
- Power: 3 HP
- Speed: 3530 RPM
- Voltage: 230/460V AC
- Current: 8.0A (230V) / 4.0A (460V)
- Phase: 3-Phase
- Frequency: 60 Hz
- Frame: NEMA 182T
- Motor Type: CTE (C-Face, Totally Enclosed)

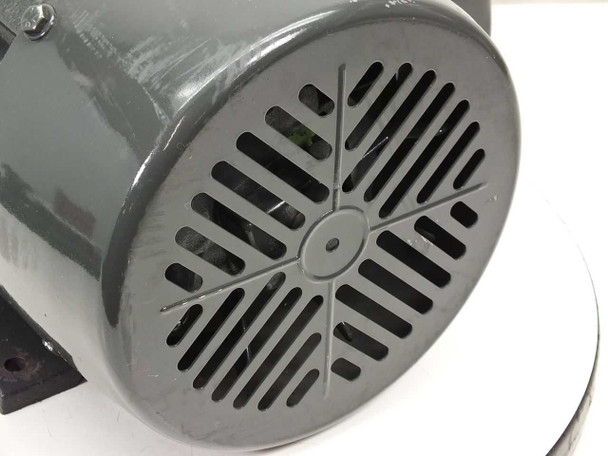

- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Bearings: Ball bearings (both ends)
- Insulation Class: F
- NEMA Design: B
- Service Factor: 1.15
- Ambient Temperature Rating: 40°C
- Shaft Height: 4-1/2 inch
- SFA: 3.7A (230V) / 4.3A (460V)
- Country of Manufacture: Mexico (Dayton Electric Mfg. Co., Niles, IL)
- UL Listed (E47479) and CSA Certified (LR6153)

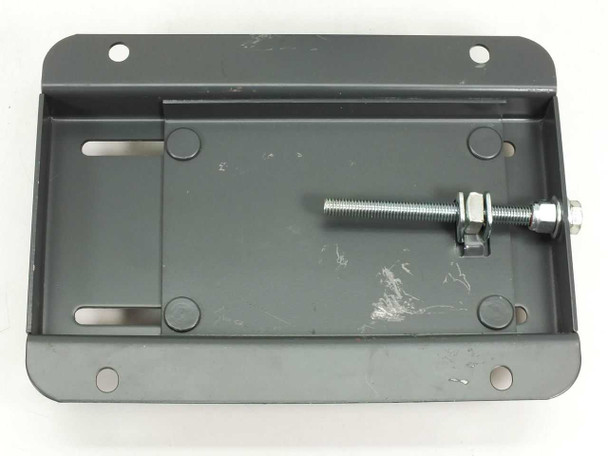

- Includes: Motor mounting/slide base with hardware
- Includes: Double-groove V-belt sheave pulley
- Includes: Browning QD bushing — model 3X483, P1 1-7/8 bore (in original box)
- Includes: Dayton motor installation and maintenance information guide
Applications
The Dayton 4FN65 is suited for a broad range of three-phase industrial drive applications. The 182T NEMA frame is a standard footprint accepted by pumps, compressors, fans, blowers, conveyors, machine tools, and agricultural equipment. The TEFC enclosure keeps internal windings protected from dust, debris, and moisture, making this motor a practical choice for shop floors, manufacturing facilities, and outdoor-adjacent installations. The dual-voltage 230/460V winding allows the motor to be connected to either common industrial supply voltage by reconfiguring the terminal leads per the wiring diagram on the nameplate — no rewinding required. The included double-groove V-belt sheave and Browning QD bushing make this a ready-to-install drive package for belt-driven equipment. Three-phase induction motors of this class are standard workhorses in industrial settings and remain widely used in both new installations and equipment rebuilds.
This Dayton 4FN65 3HP Premium Efficiency Motor is new and has never been installed or used. It came out of its original box and is being sold without the original packaging. The motor has not been run or tested at our facility, though testing can be arranged upon request. All included accessories are present: a motor mounting base, a double-groove V-belt sheave pulley, and a Browning QD bushing (3X483, P1 1-7/8 bore) in its original box, along with a Dayton motor installation and maintenance guide. The motor body and shaft appear clean and free of damage consistent with a new, uninstalled unit. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Dayton |
Model: |
4FN65 |
MPN: |
4FN65 |
Type: |
Three-Phase TEFC Induction Motor |
SKU: |
45061 |
Horsepower: |
3 HP |
Voltage: |
230/460V AC |
Current: |
8.0A / 4.0A |
Phase: |
3-Phase |
Frequency: |
60 Hz |
RPM: |
3530 |
Frame Size: |
182T |
Motor Type: |
CTE (C-Face TEFC) |
Enclosure: |
TEFC (Totally Enclosed Fan Cooled) |
Bearings: |
Ball Bearings |
Ambient Temperature: |
40°C |
NEMA Design: |
B |
Insulation Class: |
F |
Service Factor: |
1.15 |
Shaft Height: |
4-1/2 inch |
Efficiency: |
Premium Efficiency |
Country/Region of Manufacture: |
Mexico |
Seller Notes: |
Includes mounting base, sheave/V-belt pulley, Browning QD bushing (3X483, P1 1-7/8), and installation/maintenance guide. New, never installed. |
Condition: |
New – Open Box / Never Installed |
Compatible With: |
NEMA 182T frame applications; pumps, compressors, fans, conveyors |
Form Factor: |
Foot Mount / C-Face |
Power Requirements: |
230/460V AC, 3-Phase, 60 Hz |
Condition Notes: |
Dayton 4FN65 3HP 3-Phase TEFC Motor. New, never installed, out of original box. Untested at our facility; testing available on request. Includes mounting base, sheave pulley, Browning QD bushing (3X483), and installation guide. |
