Description
Datatel DCP1110 AC/DC Transformer Plug-In Module 115V 60Hz -12 -5 +5 +12 VDC

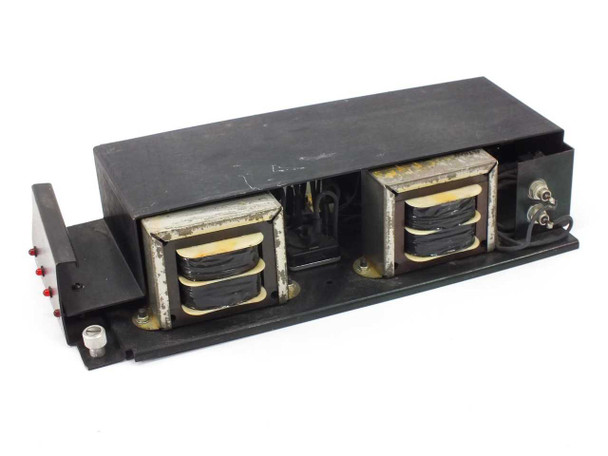

The Datatel DCP1110 is a plug-in AC/DC transformer module that accepts a 115V AC single-phase, 60Hz primary input and converts it to four regulated DC output rails: -12V, -5V, +5V, and +12V. Built by Datatel of Cherry Hill, NJ, this module is a self-contained power conversion assembly designed to plug directly into a compatible chassis or card cage, providing the multi-rail DC voltages required by digital and mixed-signal electronics of the era. The unit houses two substantial laminated transformer cores on a common PCB-mounted rail frame, with four LED status indicators on the front end-panel corresponding to each output rail.
Specifications & What's Included
- Model: DCP1110
- Manufacturer: Datatel, Cherry Hill, NJ
- Primary Input: 115V AC, Single Phase, 60Hz
- Secondary DC Output Rails: -12 VDC, -5 VDC, +5 VDC, +12 VDC
- Number of Output Rails: 4
- Form Factor: Plug-In Module (chassis/card-cage mount)
- Front Panel: Four red LED indicators labeled -12, -5, +5, +12
- Mounting: Thumbscrew-retained plug-in guide rail assembly
- Transformer Configuration: Dual laminated transformer cores on a shared mounting base
- FCC Compliance: Part 15, Class A computing device
- Sold as: Module only — no external cables included
Applications
Plug-in power modules like the DCP1110 were a common solution in late-1970s and 1980s minicomputer, data communications, and industrial electronics equipment, where chassis-level power distribution required modular, field-replaceable AC/DC conversion. The quad-rail output (-12V, -5V, +5V, +12V) is the standard voltage set for TTL and early CMOS digital logic, RS-232 line drivers, and mixed analog/digital circuitry — making this type of module appropriate for PBX telephone systems, terminal concentrators, data multiplexers, and similar rack- or cabinet-mounted equipment of that generation. Datatel was primarily known for its data communications and PBX-related hardware, and modules of this type were used to power card cages within those systems. Technicians maintaining or restoring compatible Datatel equipment, or engineers sourcing a period-correct quad-rail plug-in supply for a vintage chassis, are the primary buyers for this type of module.
This Datatel DCP1110 AC/DC Transformer Plug-In Module has been inspected and appears to be in good used condition. The transformer cores and housing show light surface dust and age-related patina consistent with surplus equipment from this era, but there is no visible damage to the cores, wiring, or PCB. The front panel LED indicator section is intact with all four indicator positions (-12, -5, +5, +12) present. The plug-in guide rails and thumbscrew hardware are intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Datatel |
Model: |
DCP1110 |
MPN: |
DCP1110 |
SKU: |
48599 |
Type: |
AC/DC Transformer Plug-In Module |
Primary Voltage: |
115V AC |
Secondary Voltage: |
-12V, -5V, +5V, +12V DC |
Phase: |
Single Phase |
Frequency: |
60 Hz |
Number of Outputs: |
4 |
Output Voltage Rails: |
-12 VDC, -5 VDC, +5 VDC, +12 VDC |
Form Factor: |
Plug-In Module |
Power Requirements: |
115V AC, 60Hz, Single Phase |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Sold as pictured; plug-in module only, no external cables included. |
Condition Notes: |
Datatel DCP1110 AC/DC Transformer Plug-In Module in good used condition. Inspected; transformer cores and housing show light age patina, no visible damage. Front panel and hardware intact. Please contact us with any questions. |
