D-Link DI-614+ 802.11b Wireless Broadband Router 4-Port 2.4GHz WiFi NAT

D-Link DI-614+ 802.11b Wireless Broadband Router 4-Port 2.4GHz WiFi NAT

The D-Link DI-614+ is a 2.4GHz 802.11b wireless broadband router combining a wireless access point with a 4-port 10/100 Mbps Fast Ethernet switch and a dedicated WAN port. It provides NAT-based Internet connection sharing for multiple wired and wireless clients from a single broadband connection.

Specifications & What's Included

• Model: D-Link DI-614+

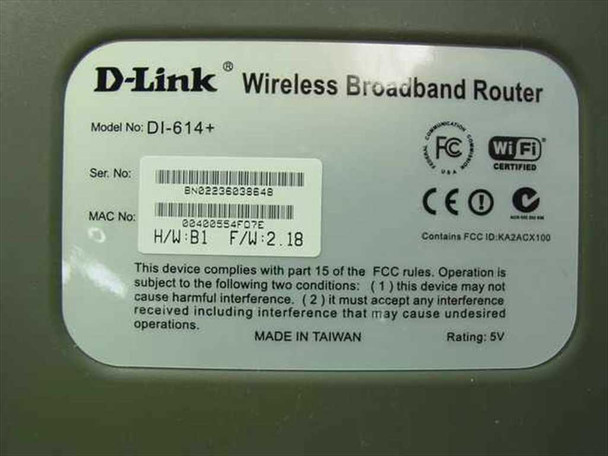

• Hardware Version: B1
• Firmware Version: 2.18
• Wireless Standard: IEEE 802.11b, 2.4 GHz
• LAN Ports: 4 x RJ-45, 10/100 Mbps Fast Ethernet
• WAN Port: 1 x RJ-45, 10/100 Mbps
• Antenna: Single external omni-directional (detachable)

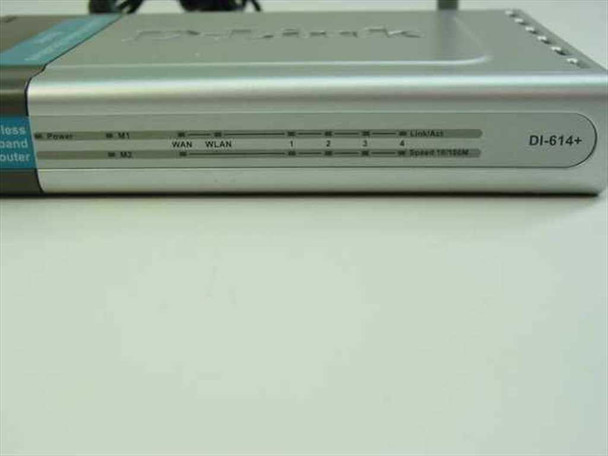

• Front panel: Power, M1, M2, WAN, WLAN, Link/Act and Speed LEDs for ports 1–4
• FCC ID: KA2ACX100
• Wi-Fi Certified
• Power Rating: 5VDC, 2.3A
• Country of Manufacture: Taiwan
• Form Factor: Desktop

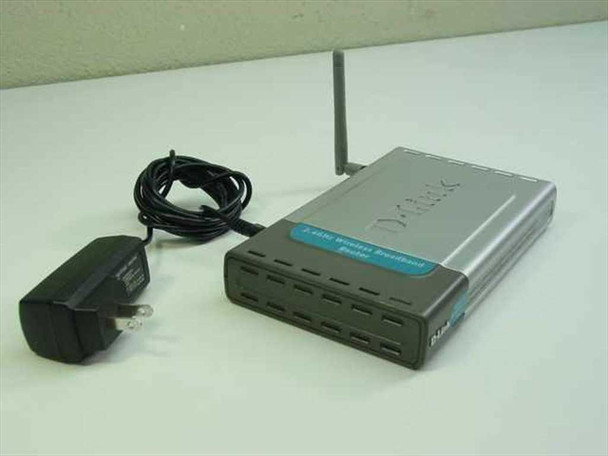

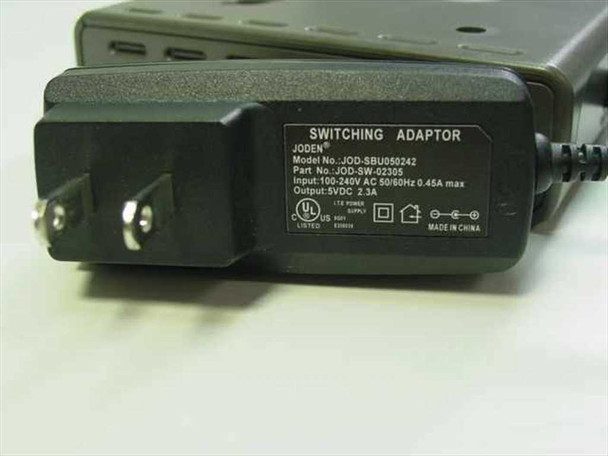

• Includes: Router unit with antenna, Joden switching power adapter (Model JOD-SW-02305, Input: 100-240V AC 50/60Hz 0.45A max, Output: 5VDC 2.3A)

Applications

The DI-614+ is a first-generation consumer 802.11b Wi-Fi router from the early-to-mid 2000s, designed to share a single DSL or cable modem broadband connection among multiple wired and wireless users in a small office or home network. 802.11b was the first widely adopted Wi-Fi standard, operating at 2.4 GHz with a maximum data rate of 11 Mbps, and the DI-614+ was a popular entry-level router during that era. While 802.11b has long been superseded by 802.11g, n, ac, and ax, units like this remain useful for legacy network setups, retro computing projects, low-bandwidth IoT or embedded applications, and hobbyist or educational networking environments where 802.11b compatibility is needed.
