Description
D-Link DES-2205 ProFAST 10/100 Fast Ethernet Switch 4-Port 10Base-T 100Base-TX
The D-Link DES-2205 is a managed 10/100 Fast Ethernet workgroup switch from D-Link's ProFAST series. It provides four 10Base-T RJ-45 ports for connecting workstations or other network devices, plus a dedicated 100Base-TX RJ-45 uplink port for connecting to a backbone or higher-speed segment. A front-panel RS-232 DCE serial management port allows out-of-band console access for configuration.
Specifications & What's Included
- Brand: D-Link
- Model: DES-2205
- Series: ProFAST

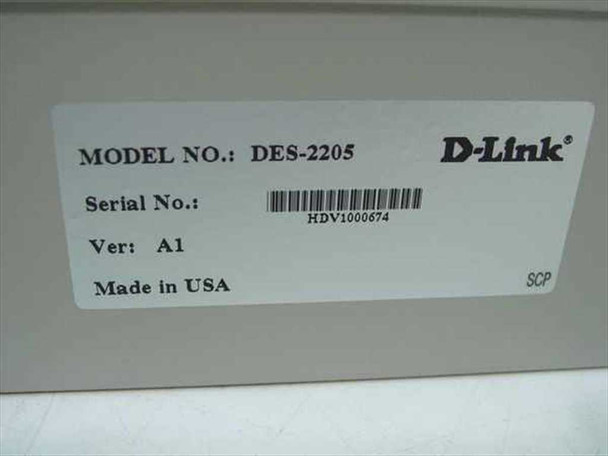

- Hardware Version: A1
- Type: 10/100 Fast Ethernet Switch (Managed)

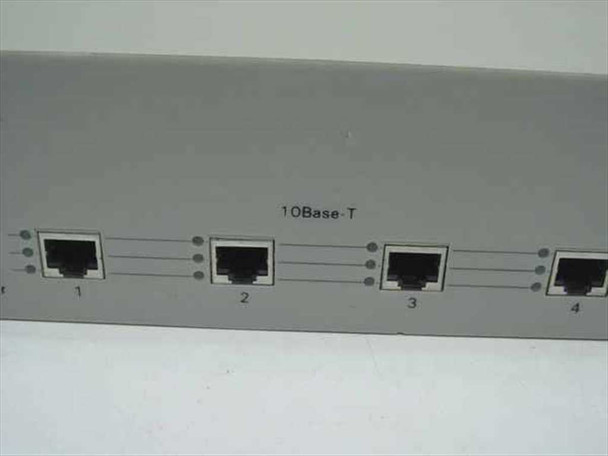

- 10Base-T Ports: 4x RJ-45 (front panel, numbered 1–4)

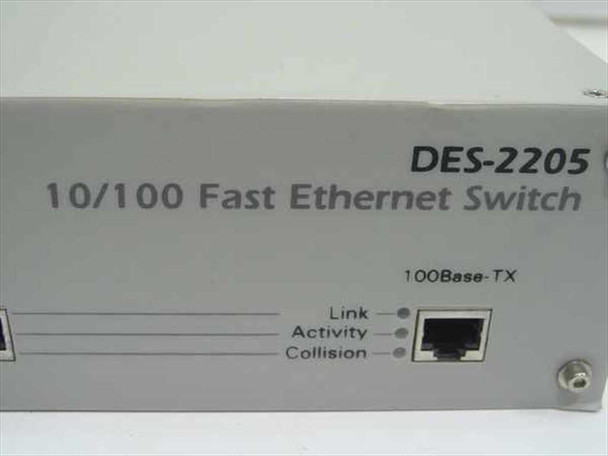

- 100Base-TX Uplink Port: 1x RJ-45 with Link, Activity, and Collision LEDs

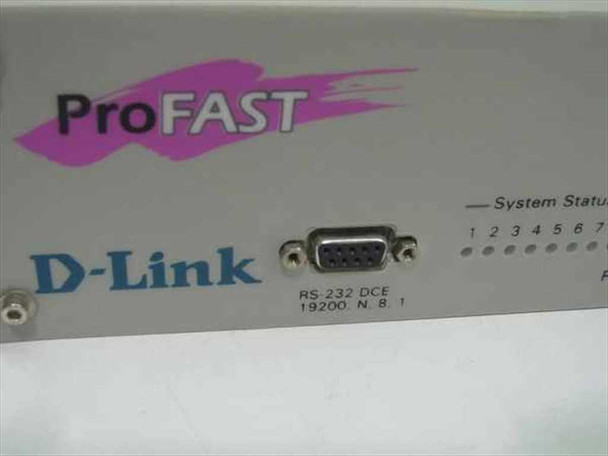

- Management Interface: RS-232 DCE, DB-9 connector, 19200 N 8 1
- System Status LEDs: per-port indicators visible on front panel

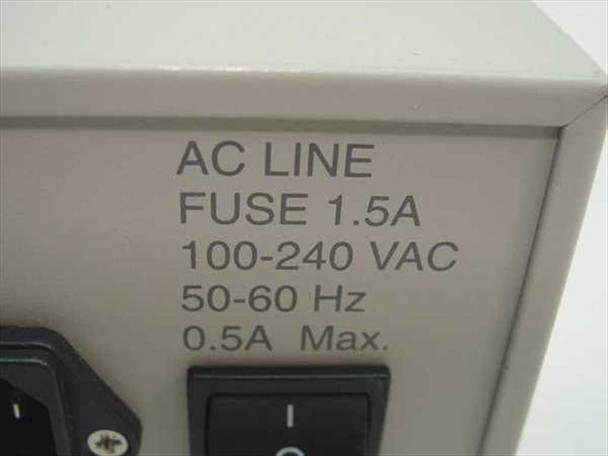

- Power Input: 100–240 VAC, 50–60 Hz, 0.5A Max.
- Fuse: 1.5A
- Power Connector: IEC C14 inlet with rocker on/off switch

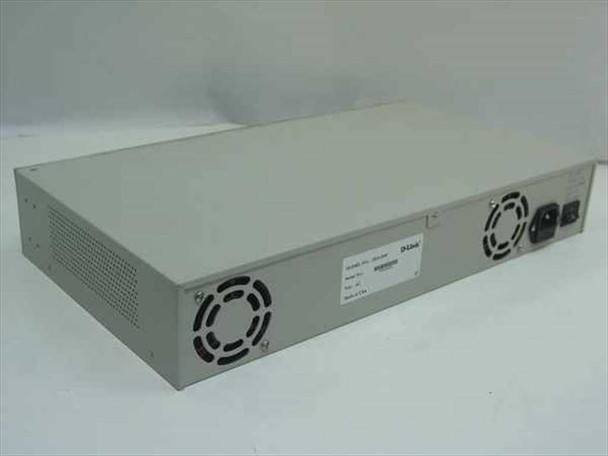

- Cooling: dual rear-mounted fans
- Form Factor: 1U rackmount / desktop
- Country of Manufacture: USA
- What's Included: switch unit only — no cables or accessories
Applications
The DES-2205 is a mid-to-late 1990s workgroup Ethernet switch designed for small office and departmental LAN environments during the transition from shared 10Base-T hubs to switched 10/100 Fast Ethernet. Unlike a hub, a switch like the DES-2205 forwards traffic directly between source and destination ports rather than broadcasting to all ports, reducing collisions and improving available bandwidth per node. The 100Base-TX uplink port allowed the switch to connect to a Fast Ethernet backbone or server while the four 10Base-T ports served desktop clients — a common "10 to the desktop, 100 to the server" topology of the era. The RS-232 console management interface was standard on managed switches of this period, allowing administrators to configure VLANs, port settings, and monitoring via a terminal emulator. Units like this are still used today in legacy lab environments, industrial control networks, and small isolated network segments where 10Base-T connectivity is required.
This D-Link DES-2205 ProFAST 10/100 Fast Ethernet Switch has been inspected and is in good used condition. The chassis is clean with light shelf wear typical of used rack equipment. The front-panel LEDs are visible and the ports and RS-232 DCE management connector appear intact. The rear cooling fans and IEC power inlet show no damage. Unit only — no cables or accessories are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
D-Link |
Model: |
DES-2205 |
MPN: |
DES-2205 |
Type: |
10/100 Fast Ethernet Switch |
SKU: |
21635 |
Product Line / Series: |
ProFAST |
Hardware Version: |
A1 |
Number of Ports: |
5 (4x 10Base-T RJ-45 + 1x 100Base-TX RJ-45 uplink) |
Port Speed: |
10/100 Mbps |
LAN Ports: |
4x 10Base-T RJ-45 |
Uplink Port: |
1x 100Base-TX RJ-45 |
Management Interface: |
RS-232 DCE, 19200 N 8 1 |
Management Type: |
Managed |
Connector Type: |
RJ-45, DB-9 RS-232 DCE |
Power Requirements: |
100-240 VAC, 50-60 Hz, 0.5A Max., Fuse 1.5A |
Form Factor: |
Rackmount / Desktop, 1U |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Unit only; inspected and in good condition. Please see photos. |
Condition Notes: |
D-Link DES-2205 ProFAST 10/100 Fast Ethernet Switch. Inspected and in good used condition. Light shelf wear; ports and chassis intact. Unit only, no cables included. |
