Description

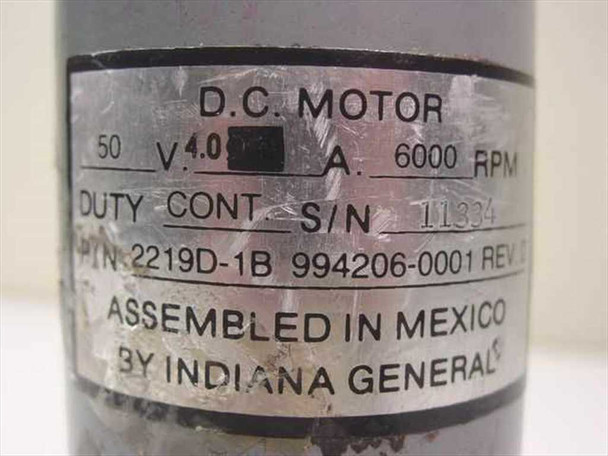

Indiana General 2219D-1B Permanent Magnet DC Motor 50V 4A 6000 RPM Cont Duty

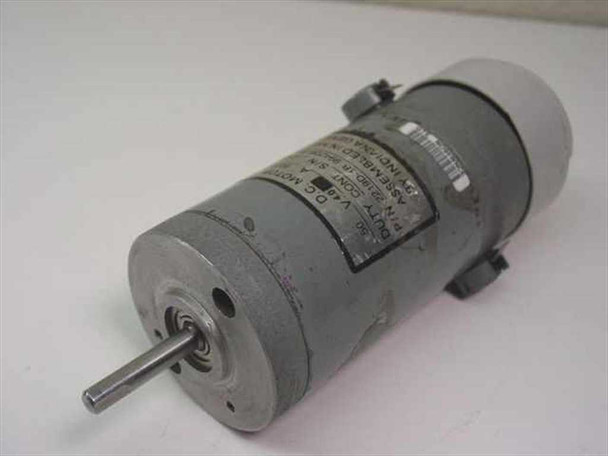

The Indiana General 2219D-1B is a permanent magnet DC motor (PMDC) in a compact cylindrical can form factor. Rated for 50V DC operation at up to 6000 RPM with a continuous duty cycle, it uses a permanent magnet stator to provide stable speed-torque characteristics without the need for field windings. This unit was manufactured by Indiana General — a division later acquired by Litton Industries — and assembled in Mexico.
Specifications & What's Included
- Manufacturer: Indiana General (Litton Industries)
- Part Number: 2219D-1B
- Secondary Part Number: 994206-0001
- Motor Type: Permanent Magnet DC (Brushed)
- Rated Voltage: 50V DC
- Rated Current: 4A
- Rated Speed: 6000 RPM
- Duty Cycle: Continuous (CONT)
- Tested at 24V — unloaded: 4080 RPM, 0.42A

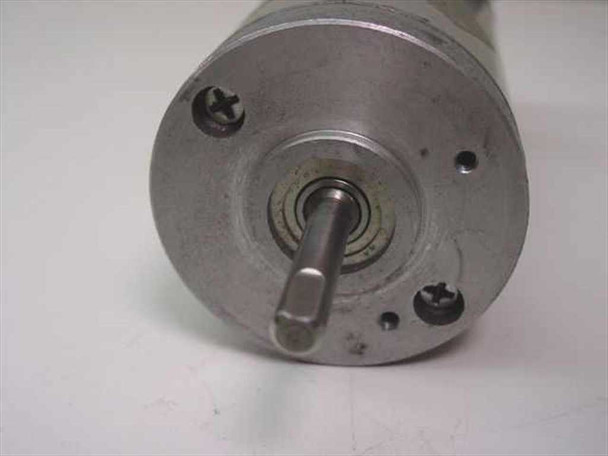

- Output shaft with keyway (visible in photos)

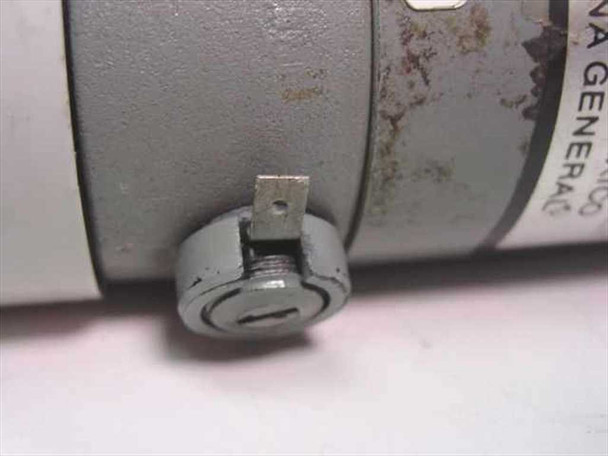

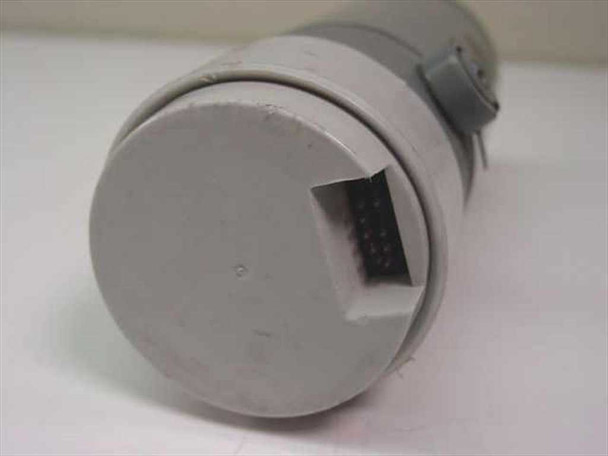

- Rear end cap with flat tab brush terminals
- Country of Manufacture: Mexico
- Motor only — no mounting hardware or cables included
Applications
Permanent magnet DC motors like the 2219D-1B are widely used in precision motion control, instrumentation drives, medical equipment, office and business machines, and light industrial automation. The PMDC design — where the magnetic field is provided by permanent magnets rather than field windings — gives a linear speed-torque curve and straightforward speed control via simple voltage adjustment or PWM, making these motors well-suited to servo-style applications. Indiana General was a recognized supplier of fractional and sub-fractional horsepower DC motors to aerospace, defense, and industrial OEM customers from the mid-20th century through the Litton era. Motors of this type are still actively sought for repair and replacement in legacy instruments, scientific equipment, and custom drive assemblies where a compact, continuous-duty PMDC motor is needed.
This Indiana General 2219D-1B permanent magnet DC motor has been tested at 24V and runs well. Unloaded test results: 4080 RPM at 0.42A. The motor shows normal wear consistent with prior service use — surface rust is visible on the body (most notably around the mid-section and rear end cap area), and the gray paint shows scuffs and handling marks. The output shaft and front bearing end cap are in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Indiana General |
Model: |
2219D-1B |
MPN: |
2219D-1B |
Secondary Model: |
994206-0001 |
SKU: |
29507 |
Type: |
Permanent Magnet DC Motor (PMDC) |
Voltage Rating: |
50V DC |
Current Rating (Amps): |
4A |
Speed (RPM): |
6000 RPM (rated) |
Duty Cycle: |
Continuous (CONT) |
Motor Type: |
Permanent Magnet DC (Brushed) |
Tested Speed (Unloaded): |
4080 RPM at 24V |
Tested Current (Unloaded): |
0.42A at 24V |
Seller Notes: |
Motor only — no mounting hardware or cables included. |
Country/Region of Manufacture: |
Mexico |
Form Factor: |
Cylindrical Can Motor |
Compatible With: |
General-purpose 50V DC drive applications |
Condition Notes: |
This Indiana General 2219D-1B DC motor has been tested at 24V and runs well — 4080 RPM unloaded, 0.42A. Shows surface rust and normal wear on housing. Output shaft and bearings in good shape. |
