Cybex

Cybex Commander Personal II 520-161-002 4-Port KVM Switch PS/2 Desktop

(No reviews yet) Write a Review
SKU:
39558
MPN:
520-161-002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

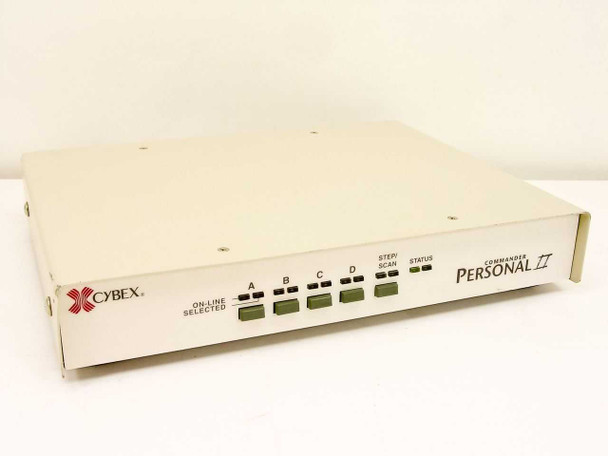

  • Cybex Commander Personal II 520-161-002 4-Port KVM Switch – front-left three-quarter view showing A/B/C/D port select buttons and On-Line/Selected indicators

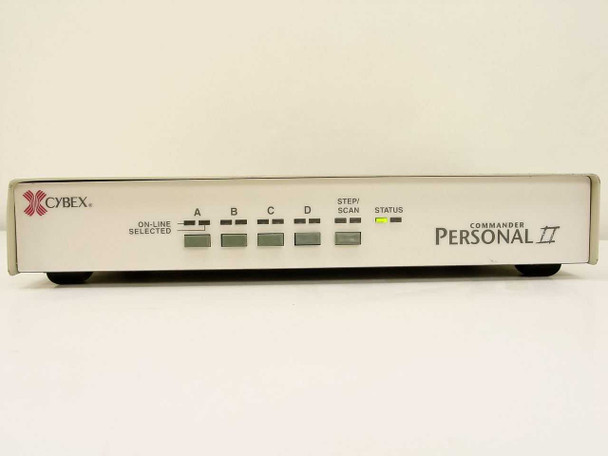

  • Cybex Commander Personal II KVM Switch – straight-on front panel view showing port select buttons A through D, Step/Scan button, and Status LED

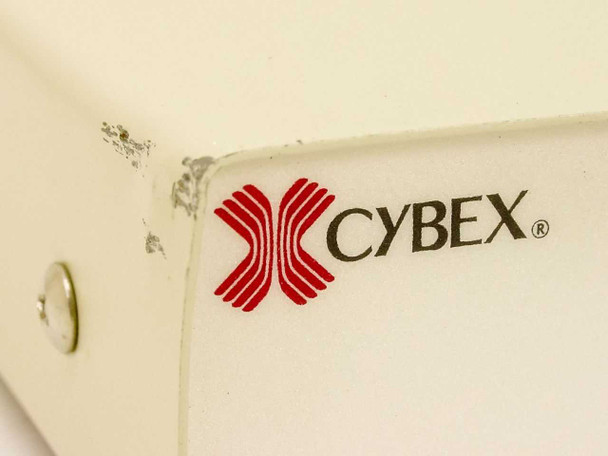

  • Cybex logo close-up on Commander Personal II KVM switch – shows paint chips and wear on top corner of beige metal enclosure

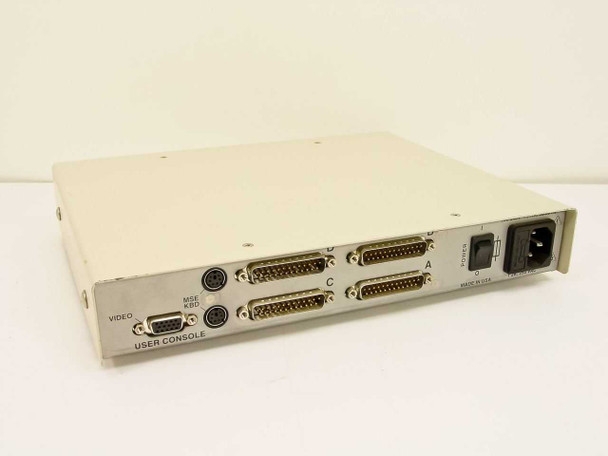

  • Cybex Commander Personal II – rear panel three-quarter view showing four DB-25 computer ports (A–D), User Console section, power switch, and IEC power inlet

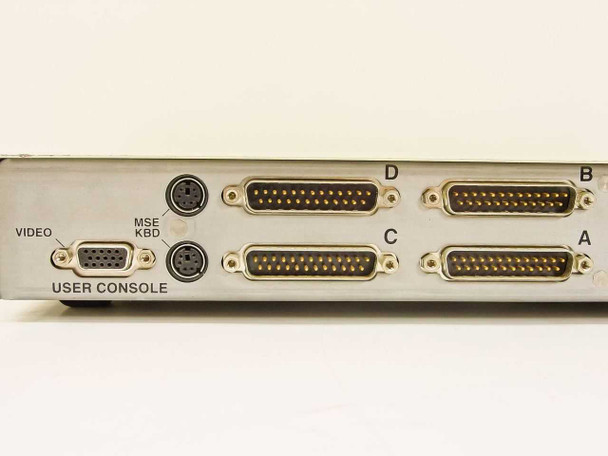

  • Cybex Commander Personal II rear panel close-up – User Console section with HD-15 VGA video port and two PS/2 ports (mouse and keyboard), plus four DB-25 computer connectors labeled A–D

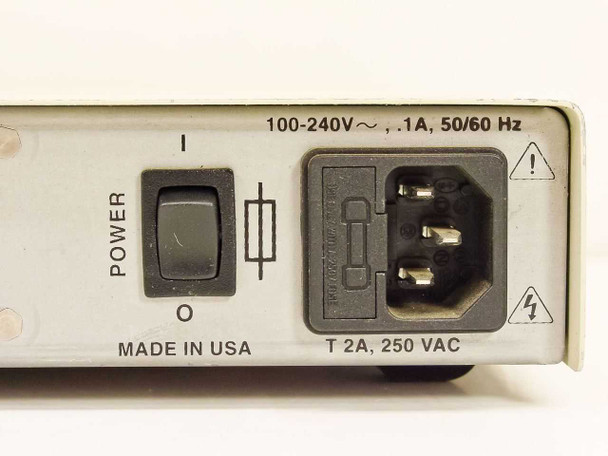

  • Cybex Commander Personal II power section close-up – rear label showing 100-240V ~, 0.1A, 50/60 Hz input rating, T 2A 250VAC fuse, IEC power inlet, power switch, and Made in USA marking

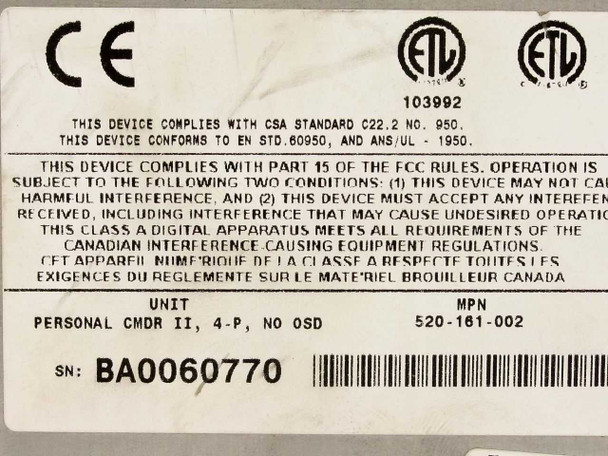

  • Cybex Commander Personal II compliance label – shows unit designation 'PERSONAL CMDR II, 4-P, NO OSD', MPN 520-161-002, serial number BA0060770, CE, ETL, CSA, FCC Part 15, and ANSI/UL-1950 certifications
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Cybex Commander Personal II 520-161-002 4-Port KVM Switch PS/2 Desktop

A 4-port KVM switch that allows one PS/2 keyboard, mouse, and VGA monitor to control four separate computers. Switching between connected systems is performed via front-panel pushbutton or auto-scan mode.

Specifications & What's Included

  • Model: Commander Personal II (MPN: 520-161-002)
  • Ports: 4 DB-25 connectors (one per computer port)
  • Console Interface: PS/2 keyboard/mouse, HD-15 VGA video
  • Switching: Front-panel pushbutton and auto-scan modes
  • Power: 100–240V AC, 0.1A, 50/60 Hz
  • Unit only; no cables included

Applications

KVM switches of this type were standard in server rooms, data centers, and technical environments during the 1990s–2000s, allowing operators to manage multiple workstations or servers from a single console. The PS/2 interface and DB-25 connectors are compatible with legacy desktop computers, Sun systems, and industrial equipment from that era. This switch supported environments where space and cable management required centralized control of multiple machines.

Condition: Used
This Cybex Commander Personal II 520-161-002 4-Port KVM Switch has been inspected and is in good used condition. The unit powers on — the Status LED is visible and lit in the front panel photos. The enclosure shows some cosmetic wear, including paint chips and scuffing on the top corners of the beige metal case (visible in the logo close-up). The front-panel buttons and rear connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Cybex
Model:
Commander Personal II
MPN:
520-161-002
SKU:
39558
Type:
4-Port KVM Switch
Number of Ports:
4
Console Interface:
PS/2 (keyboard & mouse), HD-15 VGA (video)
Computer Interface:
4x DB-25 (one per port, A/B/C/D)
Switching Method:
Front-panel pushbutton, Auto-Scan
Form Factor:
Desktop
Power Requirements:
100-240V AC, 0.1A, 50/60 Hz
Fuse:
T 2A, 250V AC
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Certifications:
CE, ETL, CSA C22.2 No. 950, UL 1950, EN 60950
FCC Compliance:
FCC Part 15 Class A
Seller Notes:
Unit only; no cables included. Please see photos.
Condition Notes:
Cybex Commander Personal II 520-161-002 4-port KVM switch. Good used condition with cosmetic wear (paint chips on top corners). Front panel and rear connectors intact. Please see photos and contact us with questions.
