Custom Poly Hanging Clean Room Positive Pressure Enclosure 27x11.5x18 w/ Regulator

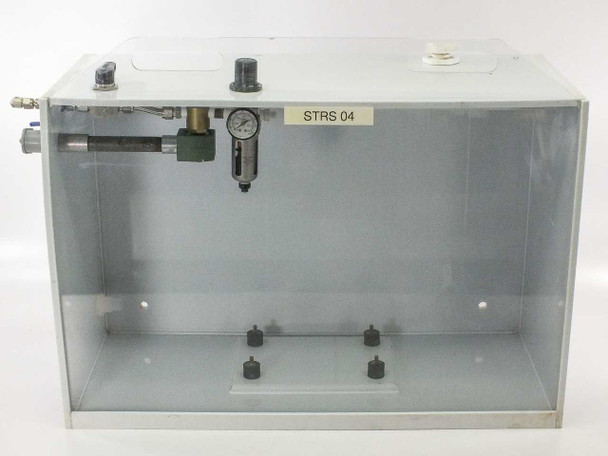

This is a custom-fabricated polycarbonate and painted metal hanging enclosure designed to maintain positive air pressure within a controlled clean room environment. The enclosure features a transparent acrylic front panel for process visibility, a top-mounted pneumatic assembly with pressure regulation, inline filtration, and a Whitey quarter-turn ball valve for gas flow control. Four rubber anti-vibration mounts are installed on an interior floor platform for isolating sensitive processes or instruments placed inside.

Specifications & What's Included

• Interior dimensions (approx.): 27" Wide x 11.5" Deep x 18" Tall
• Exterior dimensions — housing only (approx.): 27.75" Wide x 12.75" Deep x 18.75" Tall
• Exterior dimensions — including all fittings (approx.): 32" Wide x 13" Deep x 23" Tall
• Enclosure body: white painted metal frame with clear polycarbonate/acrylic front panel
• Mounting style: hanging (overhead suspension)
• Top-mounted pressure regulator with inline gauge (pressure range markings visible on gauge face)
• Inline filter/separator bowl assembly (appears to be a coalescing or particulate filter)

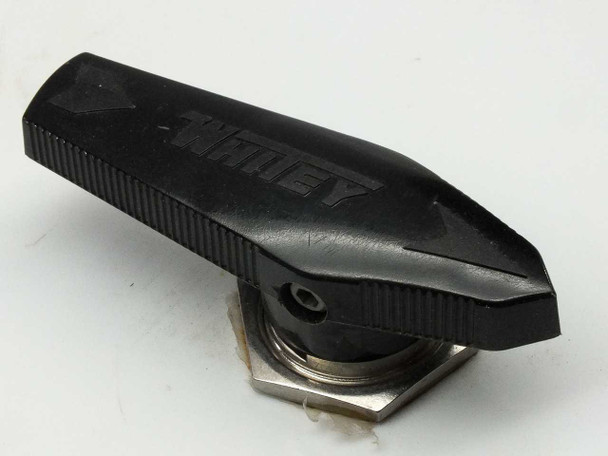

• Whitey brand quarter-turn ball valve with knurled black handle
• Stainless steel tube fittings and flexible gas supply tubing
• Green solenoid or check valve visible in regulator assembly
• 4x black rubber anti-vibration mounts with 0.25" screw posts (center-to-center spacing: 7.25" W x 6" D)
• Anti-vibration rubber element height: approx. 0.75"
• Side panel vent/fan grille present on one side
• Top-mounted black adjustment knobs (2 visible on top panel)
• Sold as-is — all components listed appear present but are untested

Applications

Positive pressure clean room enclosures like this one are used in semiconductor fabrication, optical assembly, precision instrumentation, and other manufacturing or research processes that require a particle-controlled environment at the bench or tool level. By maintaining air pressure inside the enclosure slightly above the surrounding room, airborne particulates are prevented from migrating in and contaminating the work area. Hanging or ceiling-mounted configurations are common in semiconductor fab and MEMS research environments where floor space must be kept clear. The integrated regulator and filter assembly controls and cleans the supply gas — typically clean dry air or nitrogen — before it enters the enclosure. Anti-vibration mounts inside the enclosure isolate sensitive substrates, wafers, or precision optics from floor-transmitted vibration during processing. This type of custom mini-environment was widely used in semiconductor and microelectronics labs from the 1980s onward and continues to see use in legacy fab maintenance, university research settings, and low-volume precision assembly.
