Nibco Brass 4-Zone Chilled Water Manifold 1-1/4" Copper 1/2" NPT Ball Valves

(No reviews yet) Write a Review
SKU:
32262
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • Nibco 4-zone chilled water manifold – front top view showing four brass ball valves with blue lever handles on 1-1/4-inch copper pipe
  • Nibco 4-zone chilled water manifold – bottom view showing four 1/2-inch NPT brass ball valve port openings and stainless body detail
  • Nibco 4-zone chilled water manifold – three-quarter rear view showing valve spacing and 90-degree copper elbow at left end

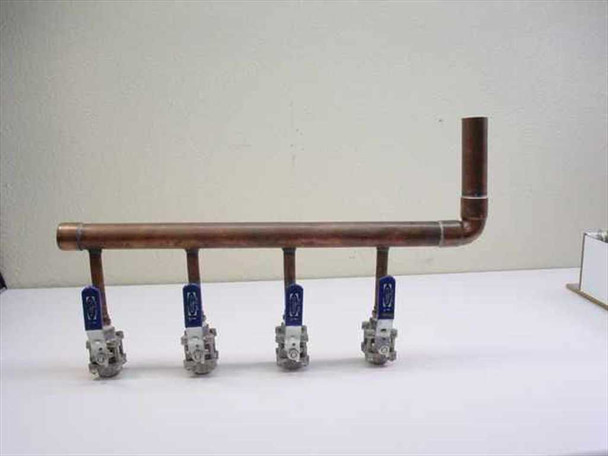

  • Nibco 4-zone chilled water manifold – side profile showing full copper pipe run, 90-degree elbow at right end, and four downward-facing brass ball valves
$45.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Nibco Brass 4-Zone Chilled Water Manifold 1-1/4" Copper 1/2" NPT Ball Valves

This is a custom-fabricated 4-zone chilled water distribution manifold built on a 1-1/4" copper pipe header with four Nibco brass WOG ball valves on 1/2" NPT branch connections. The manifold includes a 90-degree copper elbow at one end and runs approximately 22" from the center of the elbow to the capped end, with the four branch valves spaced on 4.5" centers. Each valve features a blue lever handle for easy manual zone control.

Specifications & What's Included

  • Header pipe: 1-1/4" copper, approximately 22" center-of-90 to end
  • Number of zones: 4
  • Branch connections: 1/2" NPT, spaced on 4.5" centers (5" on-center spacing)
  • Valve brand: Nibco
  • Valve type: Brass ball valve
  • Valve rating: WOG (Water, Oil, Gas rated)
  • Valve connection: 1/2" NPT female
  • Handle: Blue lever handle, manual operation
  • End fitting: 90-degree copper elbow (supply/return connection point)
  • Valve body material: Brass with stainless trim
  • Header material: Copper pipe

Applications

Chilled water manifolds like this are standard components in hydronic HVAC systems, where a single chilled water supply and return loop must be distributed to multiple zones or fan coil units. Each ball valve independently controls flow to one zone, allowing individual zones to be isolated for service or balancing without shutting down the entire system. This type of manifold is commonly used in commercial and light-industrial buildings, clean rooms, data center cooling loops, laboratory HVAC systems, and process cooling applications. The Nibco brass WOG ball valves are a widely trusted choice in these systems for their durability and reliable shutoff at typical chilled water pressures and temperatures. Custom copper manifolds of this style are fabricated by HVAC contractors to fit specific zone counts and branch spacings required by the system layout.

Condition: Used
This Nibco 4-Zone Chilled Water Manifold has been inspected and appears to be in good used condition. The copper pipe shows normal oxidation and surface tarnish consistent with prior installation, and the four Nibco brass ball valves show light wear and some surface oxidation on the stainless valve bodies — all four lever handles are intact and the valves turn freely. The unit was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NIBCO
Model:
4-Zone Chilled Water Manifold
MPN:
N/A
Type:
Chilled Water Distribution Manifold
SKU:
32262
Number of Zones / Valves:
4
Main Pipe Size:
1-1/4" Copper
Branch Size:
1/2" NPT
Branch Spacing (Centers):
4.5" (on 5" centers)
Valve Brand:
Nibco
Valve Type:
Brass Ball Valve
Valve Rating:
WOG (Water, Oil, Gas)
Valve Connection:
1/2" NPT
Pipe Material:
Copper
Valve Body Material:
Brass
Handle Type:
Lever (Blue Handle)
Application:
Chilled Water Distribution, HVAC, Hydronic Systems
Seller Notes:
Manifold with four Nibco brass ball valves. No additional fittings or mounting hardware included.
Country/Region of Manufacture:
United States
Condition Notes:
This Nibco 4-Zone Chilled Water Manifold is in good used condition. Copper pipe shows normal oxidation; all four Nibco brass ball valves are intact with levers turning freely. Pulled from a working environment.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
