4-Valve Chilled Water Manifold 1" Copper Pipe Nibco Brass Ball Valves WOG

(No reviews yet) Write a Review
SKU:
32272
MPN:
N /A
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • 4-valve chilled water copper pipe manifold with Nibco brass ball valves – front view showing all four valves with blue handles upright
  • Chilled water manifold side profile view showing 1-inch copper main pipe vertical run and four 1/2-inch Nibco brass ball valve branches

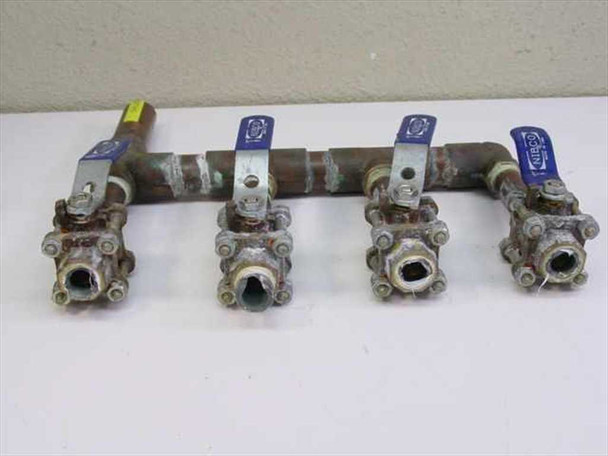

  • 4-valve copper chilled water manifold bottom view showing open 1/2-inch branch ports and Nibco brass ball valve bodies with wear patina
$21.30
Was: $40.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

4-Valve Chilled Water Manifold 1" Copper Pipe Nibco Brass Ball Valves WOG

This is a custom-fabricated 4-valve chilled water manifold built from 1-inch copper main pipe with four 1/2-inch Nibco brass ball valves mounted on 3-inch branch centers. The manifold measures 11 inches end to center on the main run, with 3-inch branch stubs, and is designed for distributing or isolating chilled water flow to multiple circuits in an HVAC hydronic system.

Specifications & What's Included

  • Main pipe: 1-inch copper, 11 inches end to center
  • Branch pipe: 1/2-inch copper, on 3-inch centers, 3 inches long
  • Number of valves: 4
  • Valve brand: Nibco
  • Valve type: Brass ball valve with lever handle
  • Valve rating: WOG (Water, Oil, Gas)
  • Valve size: 1/2 inch
  • Construction: Soldered copper pipe assembly with threaded/soldered brass valve bodies
  • Blue lever handles present on all four valves

Applications

Chilled water manifolds like this one are standard components in hydronic HVAC systems, used to distribute or balance chilled water flow from a central chiller plant to multiple air handling units, fan coil units, or cooling coils. Each ball valve allows individual circuit isolation for maintenance, balancing, or seasonal shutdown without affecting the rest of the system. Nibco brass WOG ball valves are a common choice for these assemblies due to their compatibility with water, oil, and gas service and their straightforward lever-operated shutoff. This type of manifold is commonly found in commercial and industrial HVAC installations, data center cooling systems, and laboratory chilled water loops. The 1/2-inch branch size suits small to medium fan coil units or secondary cooling circuits.

Condition: Used
This 4-valve chilled water manifold with Nibco brass ball valves is in used condition consistent with prior HVAC service. The copper pipe shows surface oxidation and patina typical of installed hydronic components, and the valve bodies show light corrosion and wear consistent with age and use. All four Nibco brass ball valves are present with their blue lever handles intact. The manifold was removed from a working environment where it was previously in service. Please review our photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NIBCO
Model:
Custom 4-Valve Chilled Water Manifold
Type:
Chilled Water Manifold
Number of Valves:
4
Main Pipe Material:
Copper
Main Pipe Size:
1 inch
Branch Pipe Size:
1/2 inch
Branch Spacing:
3 inch centers
Branch Length:
3 inches
Valve Brand:
Nibco
Valve Material:
Brass
Valve Type:
Ball Valve
Valve Rating:
WOG (Water, Oil, Gas)
Overall Length (End to Center):
11 inches
Application:
Chilled Water HVAC Hydronic Systems
SKU:
32272
Condition Notes:
This 4-valve chilled water manifold with Nibco brass ball valves is in used condition from prior HVAC service. Copper pipe shows surface oxidation and patina; valve bodies show light corrosion. All four valves and blue lever handles are present.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
