2.0 MHz 5-Pole Bessel Low Pass Filter 50 Ohm BNC RF Signal Conditioning Lab

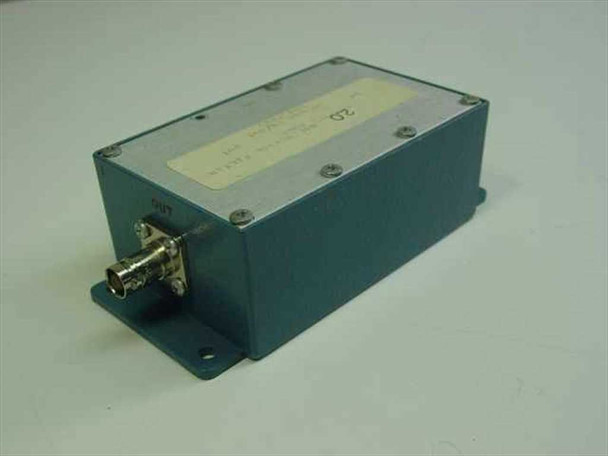

This is a custom-built 2.0 MHz 5-pole Bessel low pass filter with 50 ohm input and output impedance, housed in a solid blue aluminum enclosure. It uses panel-mount BNC connectors on both the IN and OUT ends and is clearly labeled on the top panel with its specifications. The unit is flange-mounted for easy bench or chassis installation.
Specifications & What's Included
- Filter type: Bessel, low pass
- Cutoff frequency: 2.0 MHz
- Number of poles: 5
- Input/output impedance: 50 ohms
- Connectors: Panel-mount BNC — one IN, one OUT
- Enclosure: Blue anodized aluminum with flange mounting tabs
- Mounting: Flange-mount (two mounting holes per end bracket)
- Top label: Legible, readsCondition: Used
This 2.0 MHz 5-Pole Bessel Low Pass Filter has been inspected and appears to be in good used condition. The blue aluminum enclosure shows light scuffing and general handling wear consistent with prior use. Both BNC connectors (IN and OUT) are present and in good shape with no visible damage. The identifying label on top is intact and fully legible. This unit was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
Custom 2.0 MHz Bessel Filter 5 Pole |
MPN: |
Custom |
Type: |
Low Pass Bessel Filter |
SKU: |
32992 |
Seller Notes: |
Filter module only — no cables or adapters included. |
Filter Type: |
Bessel |
Filter Configuration: |
Low Pass |
Number of Poles: |
5 |
Cutoff Frequency: |
2.0 MHz |
Impedance: |
50 Ohm |
Connector Type: |
BNC (panel-mount, IN and OUT) |
Form Factor: |
Enclosed Module with Flange Mount |
Enclosure Material: |
Aluminum |
Signal Type: |
RF / Analog |
Application: |
RF Signal Conditioning, Test & Measurement, Lab |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This 2.0 MHz 5-Pole Bessel Low Pass Filter is in good used condition. The aluminum enclosure shows light scuffing; both BNC connectors are intact. Pulled from a working environment. Please contact us with any questions. |
