Description
Cubix ERS-Fault Tolerant FT Subsystem 16-Slot ISA 486 Blade Server BC4035
A 16-slot ISA blade server chassis designed for fault-tolerant computing using Intel 486 processors. This system features redundant power supplies and a multiplexed architecture supporting multiple CPU cards for distributed processing.
Specifications & What's Included

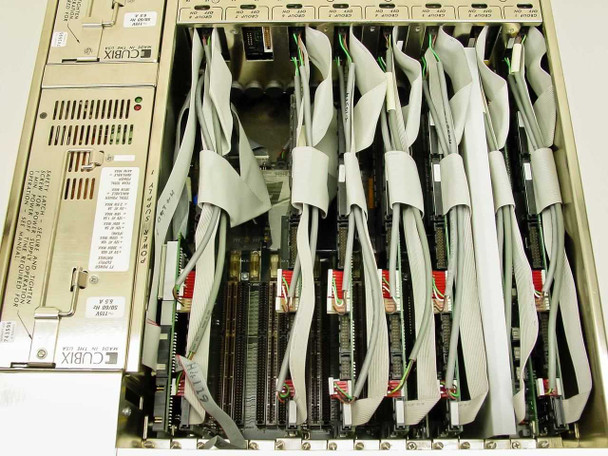

- 7x BC4035 Rev H CPU cards (Intel 486 processors)
- 7 hard drives: 1x WD WDAC2340, 1x Maxtor 7245AT, 2x WD WDAC280, 3x Seagate ST351A/X
- 16-slot ISA backplane with 8 groups

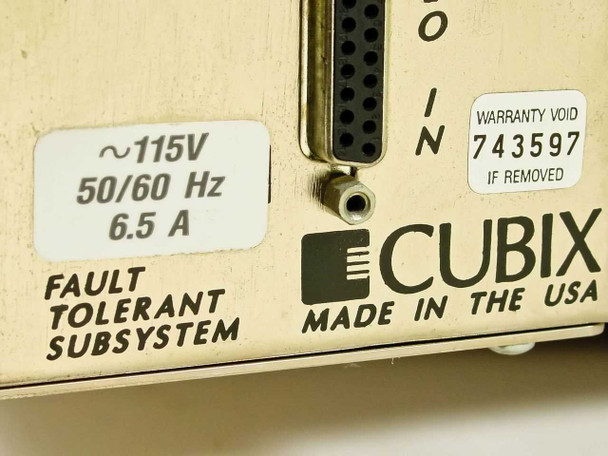

- Dual redundant power supplies (115V, 50/60Hz, 6.5A)

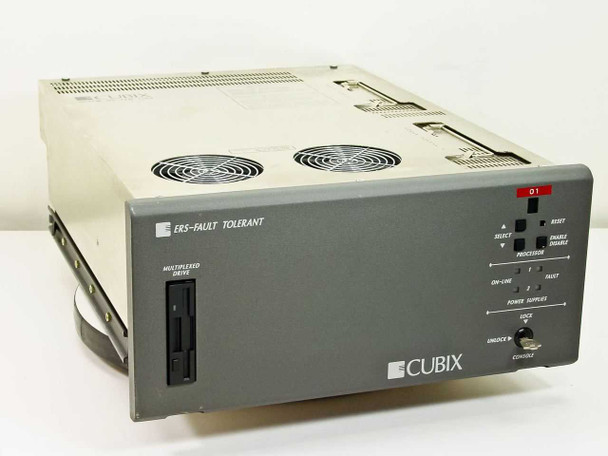

- Front-accessible floppy drive bay

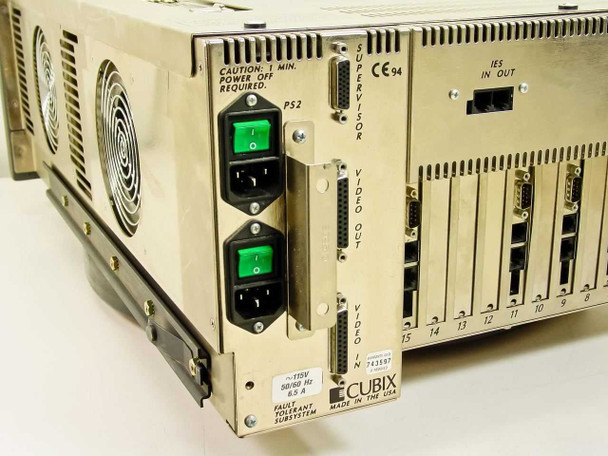

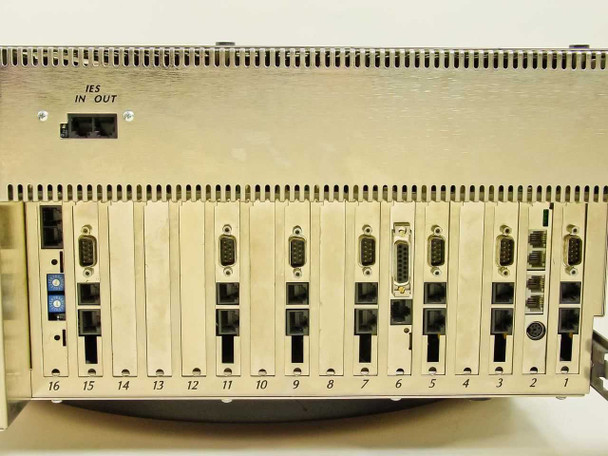

- Multiple DB-9 serial ports, video I/O, supervisor port
Applications
The Cubix ERS subsystem was used in legacy industrial and telecom environments requiring fault-tolerant distributed computing. These systems ran DOS and other 486-era operating systems and were deployed in mission-critical applications where redundancy was necessary. The modular architecture allowed expansion through compatible Cubix ERS expansion systems.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This Cubix ERS-Fault Tolerant FT Subsystem Blade Server has been inspected and is in good used condition. The chassis is structurally intact with typical cosmetic wear consistent with prior service deployment. Seven BC4035 486 CPU cards are installed across the 16-slot ISA backplane, and seven hard drives (one WDAC2340, one Maxtor 7245AT, two WDAC280, and three ST351A/X) are included as shown. The dual power supply modules, floppy drive bay, and rear I/O ports all appear intact. The front control panel indicators and locking console switch are present and undamaged. This system was made in the USA and carries the Cubix Fault Tolerant Subsystem designation on the chassis label. Please view our full photo set for a detailed look at the unit's current condition, and contact us if you have any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Cubix |
Model: |
ERS-Fault Tolerant FT Subsystem |
MPN: |
BC4035 |
SKU: |
22328 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes 7x BC4035 CPU cards and 7 hard drives (mixed models) |
Form Factor: |
Desktop / Rackmount Chassis |
Processor: |
Intel 486 (7x BC4035 CPU cards installed) |
Expansion Slots: |
16-slot ISA backplane, separated into 8 groups |
Storage 1: |
1x Western Digital WDAC2340 |
Storage 2: |
1x Maxtor 7245AT |
Storage 3: |
2x Western Digital WDAC280 |
Storage 4: |
3x Seagate ST351A/X |
Power Requirements: |
115V, 50/60Hz, 6.5A |
Redundant Power: |
Dual power supplies (PS1, PS2) |
Drive Bay: |
Multiplexed Drive (floppy, front-accessible) |
Rear Interfaces: |
Video Out, Video In, IES In/Out, Supervisor port |
Rear Connectors: |
Multiple DB-9 serial ports across 16 card slots |
CPU Card Model: |
BC4035 Rev H (A4010) |
Country of Manufacture: |
USA |
Compatible With: |
Cubix ERS Fault Tolerant Subsystem expansion systems |
Condition Notes: |
Cubix ERS-Fault Tolerant FT Subsystem Blade Server. Inspected, in good used condition. Includes 7x BC4035 CPU cards and 7 mixed hard drives. Dual PSU and ISA backplane intact. Please contact us with questions. |
