Cubix

Cubix 30000624 Rev D 16-Bit ISA HD78 DB78 Processor Card DBI A/N ISA Bus

(No reviews yet) Write a Review
SKU:
22331
MPN:
30000624
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Cubix 30000624 Rev D 16-bit ISA processor card – top-side component view showing ICs and ISA edge connector

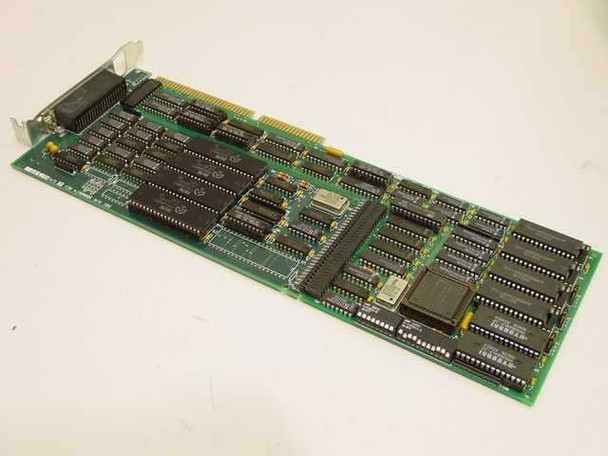

  • Cubix 30000624 ISA processor card – alternate top-side angle showing full board layout and HD78 bracket connector
  • Cubix 30000624 ISA card – bracket end view showing HD78 DB78 78-pin high-density D-Sub connector
  • Cubix 30000624 ISA processor card – PCB solder-side view showing full board traces and ISA edge connector

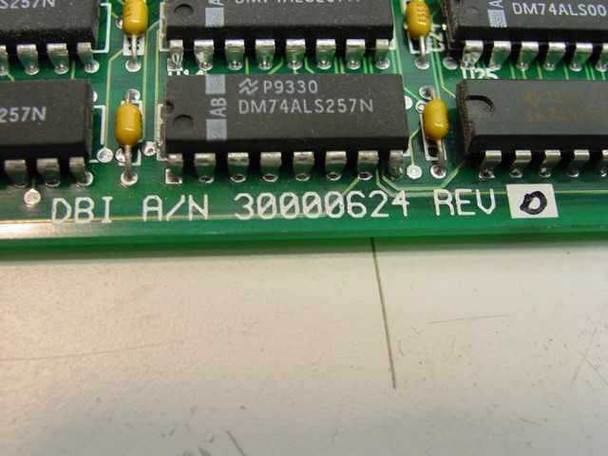

  • Cubix 30000624 PCB label close-up showing DBI A/N 30000624 REV D marking and DM74ALS257N ICs
$65.00
Was: $125.00
Current Stock: 6

Sold Out

Description

Cubix 30000624 Rev D 16-Bit ISA HD78 DB78 Processor Card DBI A/N ISA Bus

A 16-bit ISA expansion processor card designed for use in Cubix industrial computing systems and compatible PC platforms. This full-length card interfaces via a 78-pin HD78/DB78 high-density D-Sub connector.

Specifications & What's Included

  • Brand: Cubix
  • Model: 30000624 Rev D
  • Bus Interface: ISA 16-Bit
  • Connector: HD78 / DB78 (78-pin High-Density D-Sub)
  • Form Factor: Full-Length ISA Expansion Card
  • Includes: Card only; no cables or accessories

Applications

This processor card was used in Cubix ISA-bus industrial computer systems and compatible PC platforms that required expanded processing capability. The ISA architecture was standard in industrial and telecom equipment through the 1990s and early 2000s. Compatible with Cubix DBI A/N systems and legacy ISA-based computing platforms.

Condition: Used
This Cubix 30000624 Rev D 16-bit ISA processor card has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The board shows normal handling wear consistent with prior installation — no cracks, broken traces, or damaged connectors visible. The HD78/DB78 bracket connector appears intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Cubix
Model:
30000624
MPN:
30000624
Secondary Model:
DBI A/N 30000624 REV D
Type:
16-Bit ISA Processor Card
Hardware Revision:
Rev D
Bus Interface:
ISA 16-Bit
Connector Type:
HD78 / DB78 (78-pin High-Density D-Sub)
Form Factor:
Full-Length ISA Expansion Card
Condition:
Used – Pulled from Working Environment
SKU:
22331
Seller Notes:
Card only; no cables or accessories included.
Compatible With:
Cubix ISA-bus systems and compatible PC platforms
Condition Notes:
Cubix 30000624 Rev D 16-bit ISA processor card. Inspected and in good used condition. Pulled from a working environment. Board shows normal handling wear; HD78 connector intact.
