CTI Cryogenics 8143122 G001 He Compressor Supply Line 14.5in 350 PSIG Aeroquip

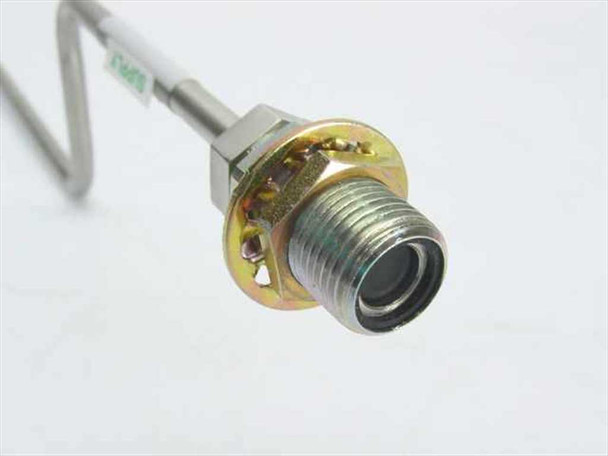

The CTI Cryogenics 8143122 G001 is a single-tube helium supply line designed for use with CTI Cryogenics helium compressors in cryogenic systems. The tube is formed from stainless steel in a bent configuration to route cleanly within a compressor assembly, with Aeroquip low air inclusion refrigerant couplings on both ends for a secure, leak-minimizing connection.
Specifications & What's Included
- Part Number: CTI Cryogenics 8143122 G001 (8143122G001)
- Description: Single-tube helium (He) compressor supply line
- Length: 14.5 inches
- Pressure Rating: 350 PSIG (as marked on label)
- Tube Material: Stainless steel, bent/formed configuration
- Supply-end coupling: Aeroquip 5400-S5-4 low air inclusion refrigerant coupling
- Return-end coupling: Aeroquip 5400-S2-4 low air inclusion refrigerant coupling
- Coupling hex nut size: 0.75 in. (3/4 in.)
- Number of couplings: 2 (one on each end)
- Date code visible on label: 357/98
- Includes: Supply line only — no additional fittings or hardware
Applications
This helium supply line is a replacement/service part for CTI Cryogenics cryogenic compressor systems. CTI Cryogenics (now part of Brooks Automation / Sumitomo) manufactured a widely used line of helium compressors that drive cryopump systems in semiconductor fabrication, vacuum coating, research laboratories, and other high-vacuum applications. The helium supply and return lines connect the compressor to the cold head of the cryopump, circulating compressed helium gas to achieve the deep cryogenic temperatures needed for effective gas capture. Aeroquip low air inclusion refrigerant couplings are specified for these lines because they minimize the introduction of air and moisture during connection and disconnection — critical in a closed-loop helium system where contamination degrades cryopump performance. This line is suited for maintenance, repair, or rebuild of CTI compressor assemblies requiring a replacement supply hose of this length and coupling configuration.
This CTI Cryogenics 8143122 G001 helium compressor supply line has been inspected and is in good used condition. The stainless steel tube and Aeroquip couplings on both ends show normal handling wear consistent with prior service use. The label on the tube is intact and legible, and the fittings appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
CTI-Cryogenics |
Model: |
8143122 G001 |
MPN: |
8143122G001 |
Type: |
Helium Compressor Supply Line |
SKU: |
20603 |
Length: |
14.5 inches |
Pressure Rating: |
350 PSIG |
Coupling Brand: |
Aeroquip |
Coupling Model (Supply End): |
Aeroquip 5400-S5-4 |
Coupling Model (Return End): |
Aeroquip 5400-S2-4 |
Coupling Type: |
Low Air Inclusion Refrigerant Coupling |
Hex Nut Size: |
0.75 in. |
Number of Couplings: |
2 (one on each end) |
Tube Material: |
Stainless Steel |
Compatible With: |
CTI Cryogenics Helium Compressors |
Application: |
Cryogenic Compressor Helium Supply |
Seller Notes: |
Supply line only — no additional fittings or hardware included. |
Condition Notes: |
This CTI Cryogenics 8143122 G001 helium compressor supply line has been inspected and is in good used condition. Stainless tube and Aeroquip couplings show normal wear. Fittings appear undamaged. Contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
