CTI Cryogenics 8143073G009 9in Braided Cryogenic Cable M-M 325 PSIG 5400-S5-4

(No reviews yet) Write a Review
SKU:
27660
MPN:
8143073G009
Condition:
New
Availability:
Currently out of stock — contact us for availability.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout
  • CTI Cryogenics 8143073G009 9-inch pressurized braided cryogenic cable showing full length with 90-degree elbow male fittings at both ends and orange-wrapped braided flex section
  • CTI Cryogenics 8143073G009 cryogenic cable side view showing CTI part number label on braided stainless body with male Aeroquip nut fittings at each elbow end

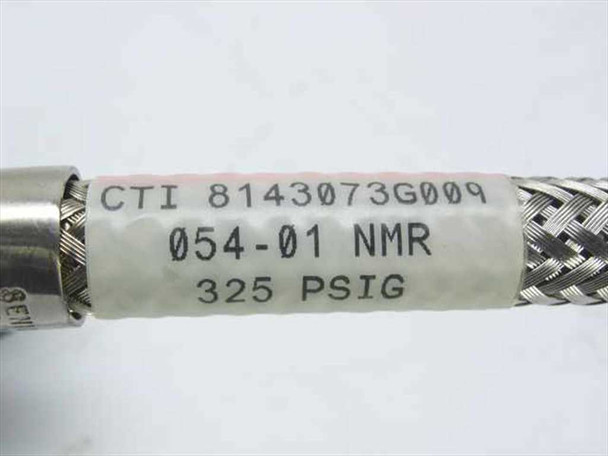

  • Close-up of CTI 8143073G009 label on braided cryogenic cable showing part number, 054-01 NMR designation, and 325 PSIG pressure rating

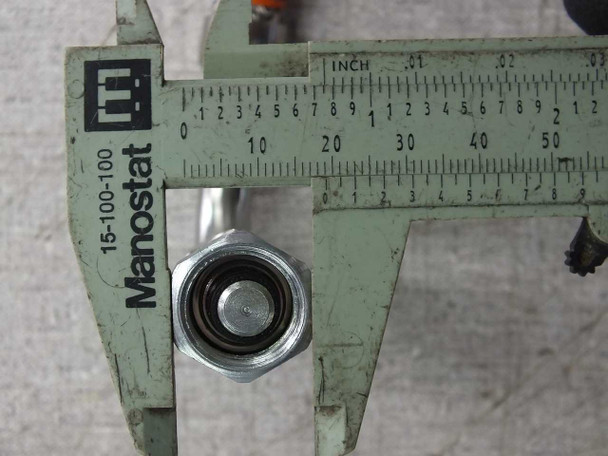

  • Caliper measurement of Aeroquip 5400-S5-4 male nut connector on CTI 8143073G009 cryogenic cable showing approximately 3/4-inch nut diameter
$34.00
Was: $75.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

CTI Cryogenics 8143073G009 9in Braided Cryogenic Cable M-M 325 PSIG 5400-S5-4

The CTI Cryogenics 8143073G009 is a 9-inch pressurized braided flex cable designed for cryogenic gas transfer in helium refrigeration and cryostat systems. It features 90-degree elbow male fittings at both ends with Aeroquip 5400-S5-4 nuts and a stainless steel braided outer sheath over a flexible inner line, rated for 325 PSIG service pressure. Designated 054-01 NMR, this cable is a purpose-built CTI Cryogenics replacement or interconnect component for use in cryopump and cold head plumbing.

Specifications & What's Included

  • Part Number: CTI Cryogenics 8143073G009
  • Secondary Designation: 054-01 NMR
  • Length: 9 inches
  • Construction: Stainless steel braided flexible hose with 90-degree elbow ends
  • End Configuration: Male – Male
  • Connector Type: Aeroquip 5400-S5-4
  • Nut Size: 0.75 inch (3/4")
  • Pressure Rating: 325 PSIG
  • Includes: Cable assembly with male Aeroquip fittings on both ends

Applications

This type of pressurized braided cryogenic cable is used to connect cryogenic gas lines — primarily helium — between the compressor and cold head in CTI Cryogenics cryopump systems, such as those found in the Cryo-Torr, On-Board, and 8F/9F series cryopumps widely used in semiconductor process equipment, vacuum coating systems, and research instruments. The 90-degree elbow fittings allow routing in tight spaces within vacuum system frames, and the stainless braided construction handles the mechanical flex and thermal cycling inherent in cryogenic service. These cables are a standard service and replacement part for CTI compressor and cold head plumbing, and are also used in NMR magnet systems and other low-temperature scientific apparatus requiring rated-pressure helium interconnects.

Condition: Open Box
This CTI Cryogenics 8143073G009 Pressurized Braided Cryogenic Cable is new and unused, sourced directly from the manufacturer in open-box condition. The cable shows no signs of use or wear and is ready to install. Original packaging may be open or absent. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
CTI-Cryogenics
Model:
8143073G009
MPN:
8143073G009
Secondary Model:
054-01 NMR
Type:
Pressurized Braided Cryogenic Flex Cable
SKU:
27660
Seller Notes:
Includes cable assembly with Aeroquip 5400-S5-4 male-male nuts on both ends.
Length:
9 inches
Pressure Rating:
325 PSIG
Connector Type:
Aeroquip 5400-S5-4, Male-Male, 0.75" Nut
End Configuration:
Male – Male
Nut Size:
0.75 inch
Compatible With:
CTI Cryogenics cryostat and refrigeration systems
Construction:
Stainless braided flex hose with 90-degree elbow fittings
Country/Region of Manufacture:
United States
Condition Notes:
This CTI Cryogenics 8143073G009 cryogenic cable is new and unused, sourced from the manufacturer in open-box condition. No signs of use or wear. Ready to install. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
