Description
CTD Machines F205 Pipe Tube Bar Cut Off Chop Saw 2HP 208-230/460V 3-Phase

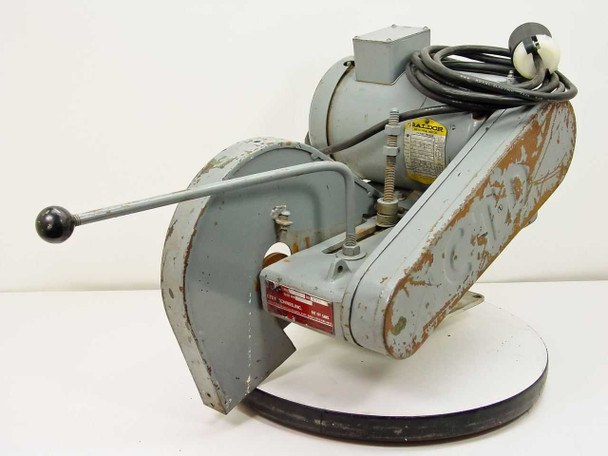

The CTD Machines F205 is a heavy-duty benchtop cut-off chop saw designed for cutting pipe, tubing, and bar stock. It is powered by a Baldor three-phase induction motor and drives the abrasive or cold saw blade at 3900 RPM via belt drive. The saw pivots on a sturdy cast base with a manual operating arm, making it well-suited for repetitive cut-off work on metal stock. No blade is included.
Specifications & What's Included

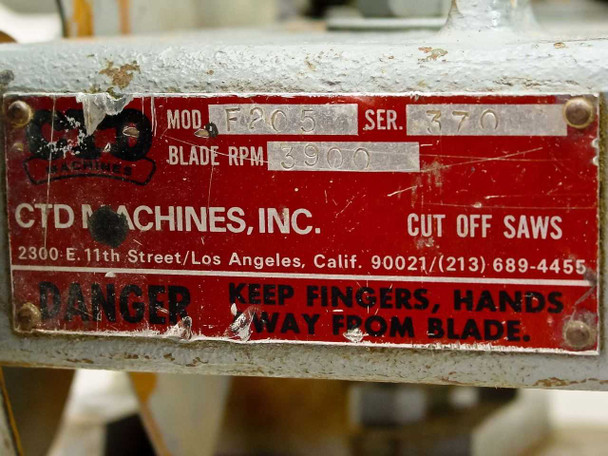

- Manufacturer: CTD Machines, Inc. (Los Angeles, CA)
- Model: F205
- Serial Number: 370
- Type: Pipe, tube and bar cut-off chop saw
- Blade RPM: 3900

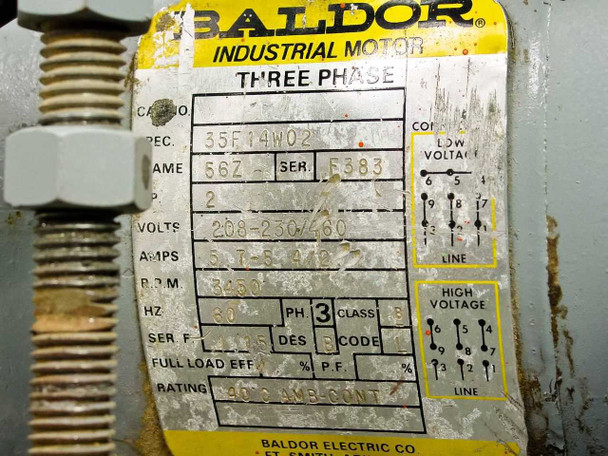

- Motor: Baldor Electric Co. three-phase induction motor
- Motor Spec No.: 35F14W02
- Motor Frame: 56Z, Series S383
- Motor Power: 2 HP
- Voltage: 208-230/460V AC
- Amperage: 5.1–5.4A (low voltage configuration)
- Motor RPM: 3450
- Phase: Three-phase
- Frequency: 60 Hz
- Motor Class: B
- Form Factor: Benchtop, circular base with pivot arm
- Blade: Not included
- Power connection: Twist-lock plug attached to cord
Applications
Cut-off chop saws like the CTD Machines F205 are standard tools in machine shops, metal fabrication shops, and pipe fitting operations for making fast, repeatable cuts on round and square metal stock — pipe, tubing, solid bar, and structural shapes. CTD Machines, Inc. was a Los Angeles-based manufacturer of cut-off saws that served industrial and trade customers; their F-series saws were a common sight in job shops throughout the western United States from the 1970s through the 1990s. The F205's three-phase motor makes it suited to shop environments with 208V or 460V three-phase service, and the dual-voltage wiring allows it to be configured for either supply voltage. These machines are still actively used in metal shops and maintenance facilities for day-to-day stock cutting, and replacement abrasive cut-off wheels in the appropriate diameter are widely available from industrial suppliers.
This CTD Machines F205 Pipe, Tube and Bar Cut Off Chop Saw has been tested and confirmed working at 208V three-phase at our facility. The saw operates as expected. No blade is included. Cosmetically, the unit shows significant paint loss and surface rust across the blade guard, and there is general wear consistent with industrial use — the motor and frame are structurally sound. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
CTD Machines |
Model: |
F205 |
MPN: |
F205 |
Type: |
Pipe, Tube and Bar Cut Off Chop Saw |
SKU: |
40035 |
Motor Brand: |
Baldor Electric Co. |
Motor Spec: |
35F14W02 |
Motor Frame: |
56Z |
Motor Series: |
S383 |
Horsepower: |
2 HP |
Voltage: |
208-230/460V |
Phase: |
Three Phase |
Amperage: |
5.1-5.4A (low voltage) |
Frequency: |
60 Hz |
Blade RPM: |
3900 RPM |
Motor RPM: |
3450 RPM |
Motor Class: |
B |
Blade Included: |
No |
Serial Number (Machine): |
370 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop |
Power Requirements: |
208-230/460V AC, 3-Phase, 60Hz |
Seller Notes: |
Saw only — no blade included. |
Condition Notes: |
This CTD Machines F205 Pipe, Tube and Bar Cut Off Chop Saw has been tested working at 208V 3-phase. No blade included. Shows significant paint loss and surface rust on the blade guard; motor and frame are structurally sound. |
