The Crystal Specialties Incorporated Model 510 is a step/time sequence programmer and control box designed for automated process sequencing in crystal growth and related laboratory applications. The system consists of a steel enclosure housing the power and switching components, combined with a front-mounted Model 510 Programmer panel that provides step-by-step timed program control with alarm monitoring. The unit is rated at 208 volts AC.

Specifications & What's Included

• Manufacturer: Crystal Specialties Incorporated, Irwindale, California
• Model: 510 / Model 510 Programmer

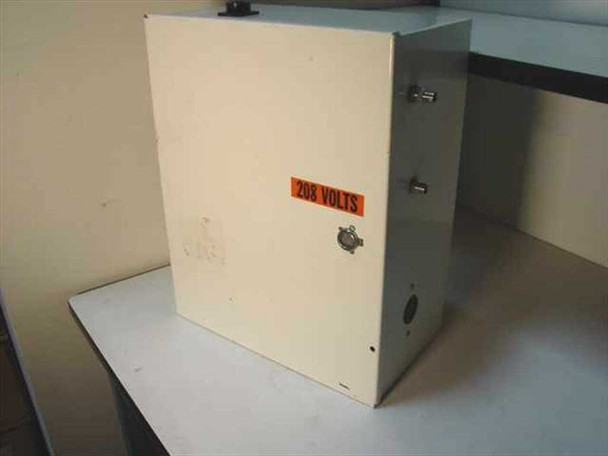

• Input Voltage: 208V AC (orange label on enclosure)
• Programmer displays: LED Step display and LED Time display (MIN / SEC)
• Programmer controls: RUN, STOP, RESET, STEP, LOAD pushbuttons
• Key switch: OFF / PROG positions
• Alarms section: multiple alarm output indicators with labeled strip inserts
• STOP and STOP OVER-RIDE controls on lower programmer panel
• Internal components: contactor (ACC330G10), additional relay/contactor boards, transformer, relay, terminal strips, capacitors, control board with IR/GATE/valve trim potentiometers
• Cylindrical motor/transformer component mounted internally, labeled HOT
• Enclosure: beige steel cabinet with hinged access door and key lock
• Document holder strips on right-side programmer door
• Form factor: freestanding benchtop/floor enclosure
• Includes: control box and attached Model 510 Programmer panel unit

Applications

Crystal Specialties Incorporated was a manufacturer of crystal growth equipment and process controllers based in Irwindale, California. The Model 510 Programmer is a step-sequencing controller used to automate multi-stage thermal or process cycles — such as the carefully controlled temperature ramp-up, hold, and cool-down sequences required in crystal growth furnaces (e.g., Bridgman, Czochralski, or flux-growth systems). The programmer advances through numbered steps at defined time intervals, triggering relay and contactor outputs that control external heating elements, motors, valves, or other actuators at each stage. Alarm outputs allow the system to monitor process limits and alert or shut down the process if a parameter goes out of range. This type of programmable sequence controller was standard equipment in research labs, university materials science departments, and industrial crystal growth operations from the 1980s through the 2000s. It may also find use in other laboratory process automation applications requiring timed, multi-step relay sequencing with alarm monitoring.
