Description
Cryogenic Associates R-141212-75 High Vacuum Container 2.75in Port 1.75in Window

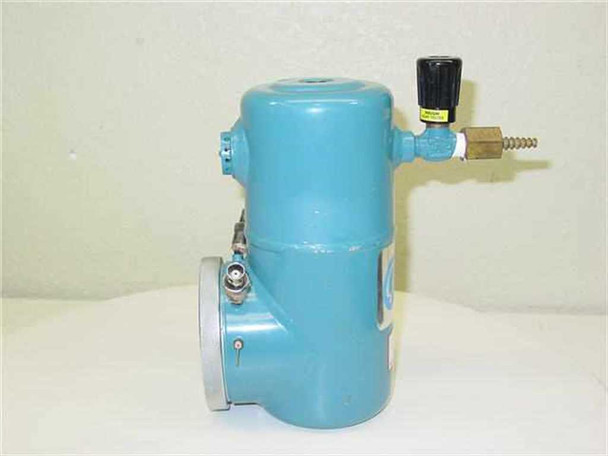

The Cryogenic Associates R-141212-75 is a compact high vacuum container designed for cryogenic testing and low-temperature experimental work. It features a 2.75-inch access port and a 1.75-inch optical viewport window, allowing direct visual or optical access to the sample space under vacuum conditions. The unit is constructed in a vertical cylindrical form with a teal-painted exterior, a top-mounted needle valve assembly, multiple side fittings, and a large stainless-steel-flanged viewport at the base.
Specifications & What's Included
- Manufacturer: Cryogenic Associates
- Model / Part Number: R-141212-75
- Type: High Vacuum Container / Cryogenic Chamber
- Port Diameter: 2.75 in
- Viewport / Window Diameter: 1.75 in
- Dimensions: 3.75 in W × 4.50 in D × 8.25 in H
- Top-mounted needle valve with black knob (visible in photos)
- Brass compression fitting on upper body
- Two side ports with fittings (visible on body)

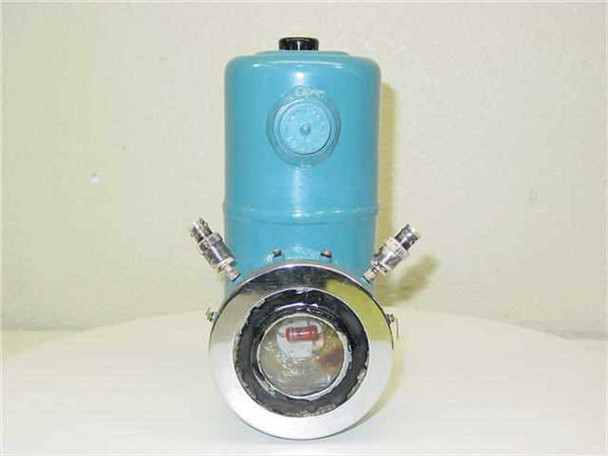

- Large circular stainless-flanged optical viewport at base
- Teal-painted steel outer body
Applications
Cryogenic Associates has long produced specialty vacuum vessels and cryostats for laboratory and research use, and compact units like the R-141212-75 are used in low-temperature physics and materials research — anywhere a sample needs to be held in a high vacuum environment, often at cryogenic temperatures achieved with liquid nitrogen or liquid helium. The optical viewport is a key feature for experiments that require spectroscopic, photometric, or visual observation of the sample without breaking vacuum. Typical applications include optical transmission and reflectance measurements at low temperatures, detector characterization, thin-film property studies, and semiconductor or photovoltaic material testing. The compact footprint makes it suitable for bench-top setups and small research cryostats.
This Cryogenic Associates R-141212-75 High Vacuum Container has been inspected and is in good used condition. The teal-painted body shows normal handling wear consistent with lab use, and all visible ports, fittings, and the optical viewport flange appear intact and undamaged. The valve assembly and side fittings are present and show no obvious damage. Please review our full photo set and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Cryogenic Associates |
Model: |
R-141212-75 |
MPN: |
R-141212-75 |
Type: |
High Vacuum Container / Cryogenic Chamber |
SKU: |
35065 |
Port Size: |
2.75 in |
Viewport / Window Diameter: |
1.75 in |
Width: |
3.75 in |
Depth: |
4.50 in |
Height: |
8.25 in |
Seller Notes: |
Unit only — no additional accessories confirmed included. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Standalone |
Application: |
High vacuum cryogenic testing, optical viewport experiments |
Compatible With: |
Standard high vacuum systems, cryogenic test setups |
Condition Notes: |
This Cryogenic Associates R-141212-75 High Vacuum Container has been inspected and is in good used condition. Normal lab wear on the painted body; all ports, fittings, and viewport flange appear intact. Please contact us with any questions. |
