Aeroquip 5400-S5-8 Braided Cryogenic Compressor Line 14 ft 1.25" Female

Aeroquip 5400-S5-8 Braided Cryogenic Compressor Line 14 ft 1.25" Female

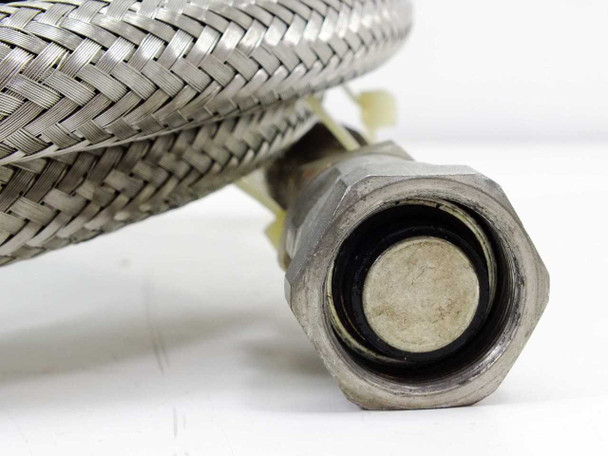

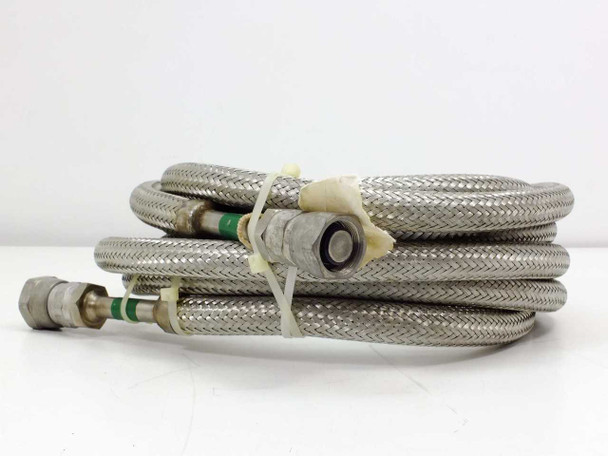

The Aeroquip 5400-S5-8 is a 14-foot flexible cryogenic compressor supply line constructed with a stainless steel braided outer jacket for durability and resistance to the extreme low-temperature environments typical of cryogenic systems. Both ends terminate in 1.25" female swivel fittings with o-ring face seals, providing secure, leak-resistant connections to compressor and coldhead ports.

Specifications & What's Included

• Part Number: Aeroquip 5400-S5-8
• Hose Length: 14 ft
• Port Size: 1.25" Female swivel fittings (both ends)
• Outer Construction: Stainless steel braided flexible hose
• Seal Type: O-ring face seal fittings
• Application: Cryogenic compressor supply/return line
• Quantity: Single line

Applications

Cryogenic compressor lines like the Aeroquip 5400-S5-8 are used to connect the compressor unit to the coldhead in closed-cycle cryocooler systems — most commonly found in research and laboratory environments running equipment such as cryostats, dilution refrigerators, MRI magnets, SQUID systems, and other low-temperature scientific instruments. Aeroquip-style braided cryo lines are a standard interconnect in systems using Gifford-McMahon (GM) or pulse-tube cryocoolers, where high-pressure helium gas is circulated between the compressor and the expander head. The stainless braided construction handles the high-pressure helium supply and return lines while remaining flexible enough for routing in lab installations. These lines are commonly used with compressors and coldheads from manufacturers such as Sumitomo, Leybold, CTI-Cryogenics, and Janis Research, where standard Aeroquip-compatible fittings are widely used.
