Crouzet

Crouzet TK2R1 Chronos 2 Multifunction DIN Rail Timer Relay 24-240V 88865265

(No reviews yet) Write a Review
SKU:
47730
MPN:
TK2R1
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Crouzet TK2R1 Chronos 2 DIN rail timer relay — left-side and front-panel view showing rotary dial and LED indicator
  • Crouzet TK2R1 Chronos 2 timer relay — rear label showing voltage ratings 24VDC, 24-240VAC, timing range 0.06s-160s, and wiring diagram; Made in France marking visible
  • Crouzet TK2R1 Chronos 2 timer relay — close-up of front panel showing time-range selector switches (x0.06, x0.25, x2s, x16s scales) and red LED indicator
  • Crouzet TK2R1 Chronos 2 DIN rail timer relay — straight-on front view showing rotary time-set dial, LED indicator, function selector, and screw terminals A1, 15, 25 on top and 18, 16, 16, 28, 26, A2 on bottom

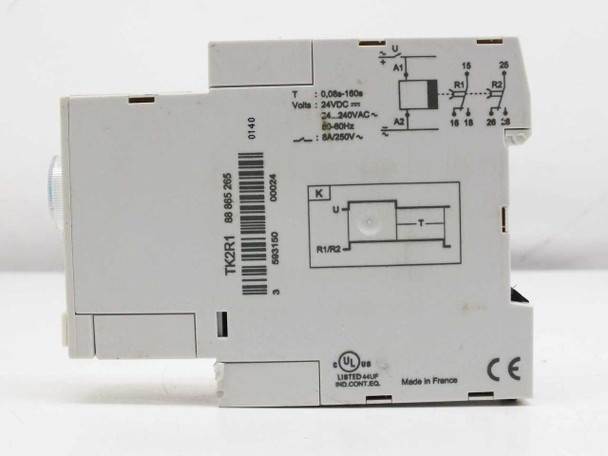

  • Crouzet TK2R1 Chronos 2 timer relay — second rear view showing barcode label with part number 88865265, UL/CE marks, wiring schematic, and Made in France stamp
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Crouzet TK2R1 Chronos 2 Multifunction DIN Rail Timer Relay 24-240V 88865265

DIN rail-mounted multifunction timer relay for industrial and telecom applications. Provides adjustable timing delays and relay switching functions in a compact 22.5 mm form factor.

Specifications & What's Included

  • Model: TK2R1 (MPN 88865265)
  • Supply Voltage: 24V DC / 24–240V AC, 50–60 Hz
  • Timing Range: 0.06 s to 160 s
  • Output Contact: 6A / 250V
  • Mounting: DIN Rail, 22.5 mm
  • Terminal Type: Screw or spring terminals
  • Features: LED status indicator, multi-function and mono-function modes
  • Made in France; UL and CE certified

Applications

Timer relays of this type are used in industrial control panels, telecom equipment, and process automation systems for sequencing, delay generation, and relay switching tasks. The Chronos 2 series supports both single-function and multi-function timing logic, making it suitable for machine control, motor start/stop delay, and signal timing applications across manufacturing and infrastructure sectors.

Condition: Used
This Crouzet TK2R1 Chronos 2 DIN rail timer relay has been inspected and appears to be in good condition. The housing is clean and intact with only light shelf wear. The rotary time-set dial, range selector switches, and LED indicator are all present and undamaged. Terminals are clean with no visible corrosion. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Crouzet
Model:
TK2R1
MPN:
88865265
Type:
Multifunction DIN Rail Timer Relay
SKU:
47730
Series:
Chronos 2
Timing Range:
0.06s to 160s
Supply Voltage:
24V DC / 24-240V AC, 50-60Hz
Output Contact Rating:
6A / 250V
Mounting Type:
DIN Rail, 22.5 mm
Timer Functions:
Multi-function and mono-function
Terminal Type:
Screw or spring terminals
Indicator:
LED status indicator
Control Input:
External power supply option; 3-wire sensor control
Form Factor:
DIN Rail Module, 22.5 mm wide
Country/Region of Manufacture:
France
Certifications:
UL, CE
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; inspected and in good condition.
Condition Notes:
Crouzet TK2R1 Chronos 2 DIN rail timer relay. Inspected and in good condition. Housing is clean with light shelf wear. Dial, selector switches, LED, and terminals are all present and undamaged.
