Crouzet

Crouzet GN 84134020 50A Solid State Relay 24-280VAC 3-32VDC DIN Rail w/Heatsink

(No reviews yet) Write a Review
SKU:
47089
MPN:
84134020
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

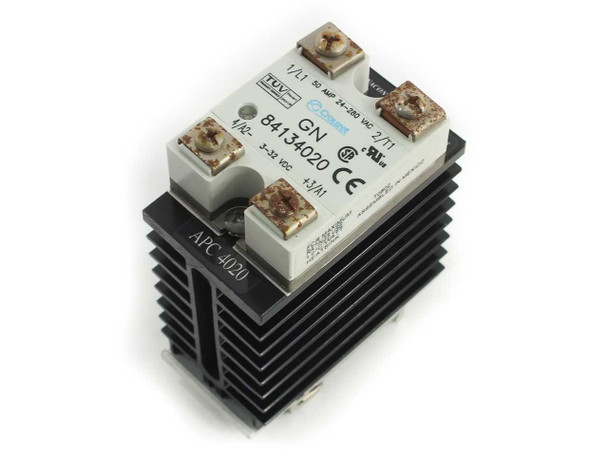

  • Crouzet GN 84134020 50A solid state relay mounted on Anacon APC4020 heatsink with DIN rail bracket — front label view showing ratings
  • Anacon APC4020 aluminum finned heatsink for Crouzet GN solid state relay — top and side view

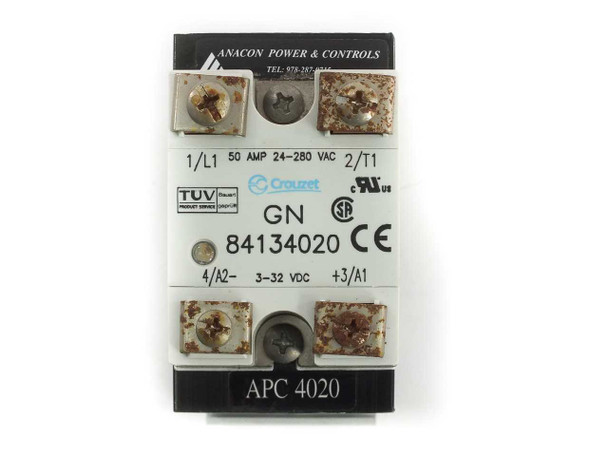

  • Crouzet GN 84134020 solid state relay label close-up showing 50A 24-280VAC output and 3-32VDC control voltage ratings with TUV, UL, CE, CSA markings
$65.00
Was: $125.00
Current Stock: 29

Sold Out

Description

Crouzet GN 84134020 50A Solid State Relay 24-280VAC 3-32VDC DIN Rail w/Heatsink

A solid state relay for switching AC loads up to 50A. This unit accepts low-voltage DC control signals (3-32VDC) and switches AC output (24-280VAC) using zero-cross switching technology, eliminating inrush current spikes.

Specifications & What's Included

  • Brand: Crouzet (Model GN 84134020)
  • Output: 24-280VAC, 50A AC load
  • Control Input: 3-32VDC
  • Switching: Zero-cross technology
  • Mounting: DIN rail with removable bracket
  • Includes: Anacon APC4020 heatsink
  • Certifications: TUV, UL, CE, CSA
  • Manufactured: France

Applications

SSRs of this type are used in industrial heating systems, ovens, kilns, and process control equipment where AC power switching is triggered by low-voltage logic or sensor signals. Common in manufacturing automation and temperature control circuits. Zero-cross relays reduce electrical noise and wear on connected equipment compared to traditional electromechanical relays.

Condition: Used
This Crouzet GN 84134020 50A Solid State Relay was removed from a large oven and is in good working condition. The relay body and terminal screws show some light oxidation on the screw heads from heat exposure, as visible in the photos — this is cosmetic and typical for components pulled from oven environments. The Anacon APC4020 heatsink is included and shows normal use wear. The removable DIN rail mount bracket is attached. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Crouzet
Model:
84134020
MPN:
84134020
Type:
Solid State Relay (SSR)
Series:
GN
SKU:
47089
Output Voltage:
24-280VAC
Control Voltage:
3-32VDC
Current Rating:
50A
Load Type:
AC
Switching Type:
Zero-Cross
Mounting Type:
DIN Rail
Certifications:
TUV, UL, CE, CSA
Included Heatsink:
Anacon Power & Controls APC4020
Seller Notes:
Includes Anacon APC4020 heatsink and removable DIN rail mount bracket.
Country/Region of Manufacture:
France
Condition Notes:
Crouzet GN 84134020 50A Solid State Relay pulled from a large oven in good working condition. Includes Anacon APC4020 heatsink and DIN rail mount. Terminal screws show light oxidation — cosmetic only.
View AllClose
