CRL 2200RP Wet Abrasive Belt Sander Roller Platen Baldor 115/230V 1725 RPM

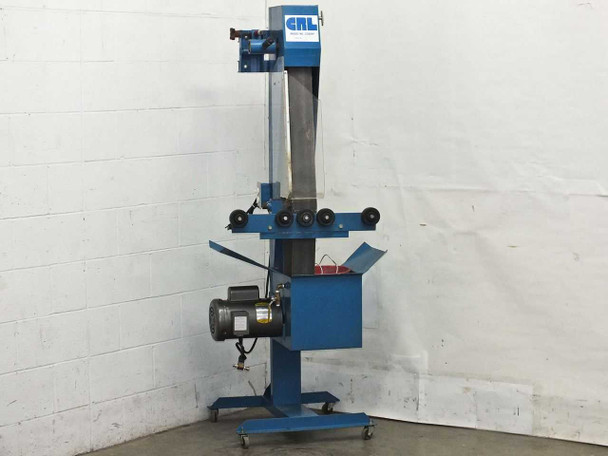

The CRL 2200RP is a floor-standing wet abrasive belt sander built around a vertical belt configuration with a roller platen contact point. It is designed for wet sanding and finishing of glass, stone, tile, and similar hard materials, using water flood cooling to keep the workpiece and belt lubricated during the grinding or finishing pass. The machine is mounted on a welded steel base frame with caster wheels for shop mobility.
Specifications & What's Included
- Make: CRL (C.R. Laurence Co.)

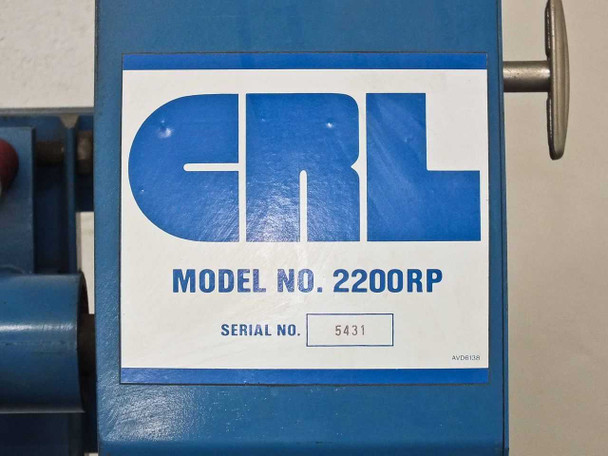

- Model: 2200RP
- Configuration: Vertical wet abrasive belt sander with roller platen

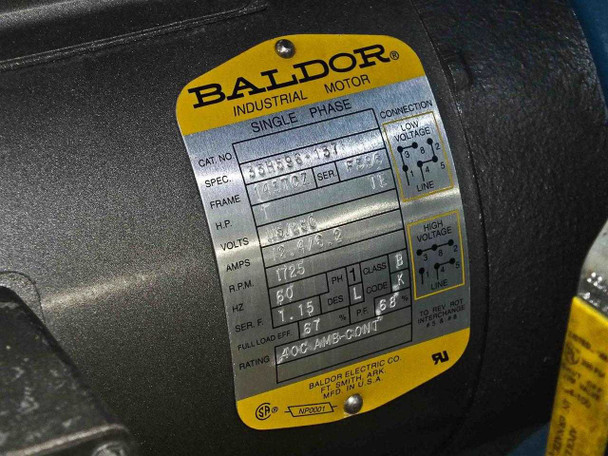

- Motor: Baldor Electric single-phase industrial motor, Cat. No. 35H596-157
- Voltage: 115/230V AC, single phase
- Motor speed: 1,725 RPM
- Motor frequency: 60 Hz
- Motor insulation class: Class B
- Motor service factor: 1.15
- Motor rating: 40°C AMB-CONT (continuous duty)

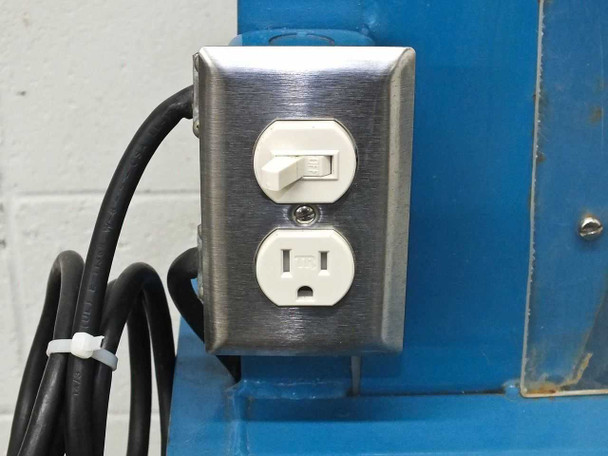

- Power outlet: NEMA 5-15R duplex outlet with toggle switch, stainless steel box mounted on frame
- Power cord: Standard 3-prong NEMA 5-15P plug

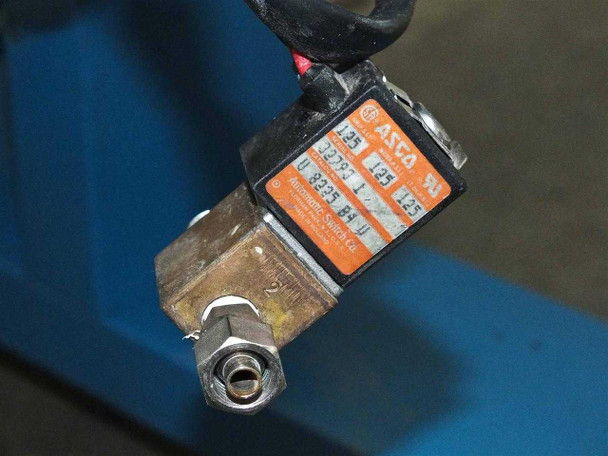

- Water system: Integrated water feed with ASCO solenoid valve (120V AC 60Hz / 110V AC 50Hz, 6.5W)
- Water management: Integrated steel sump/catch basin beneath belt path

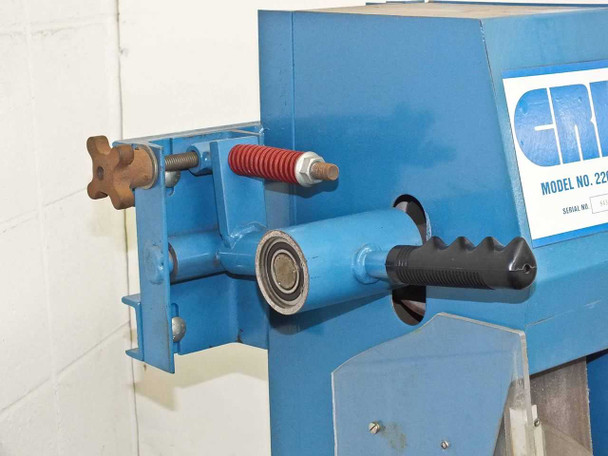

- Platen assembly: Roller platen with tension adjustment, red spring tensioner, and lever handle

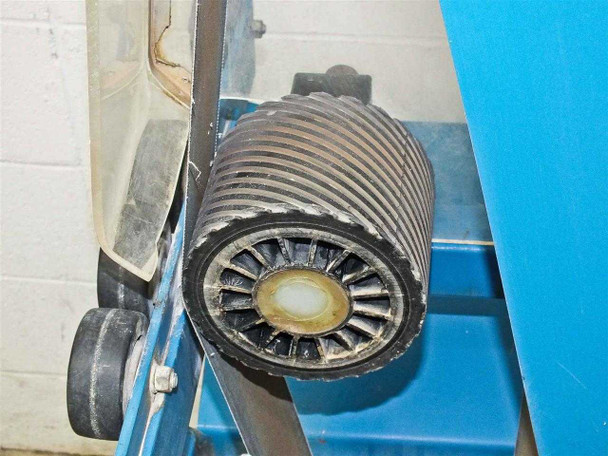

- Drive roller: Ribbed rubber contact roller
- Belt guide rollers: Multiple rubber guide/tracking rollers on lower belt path

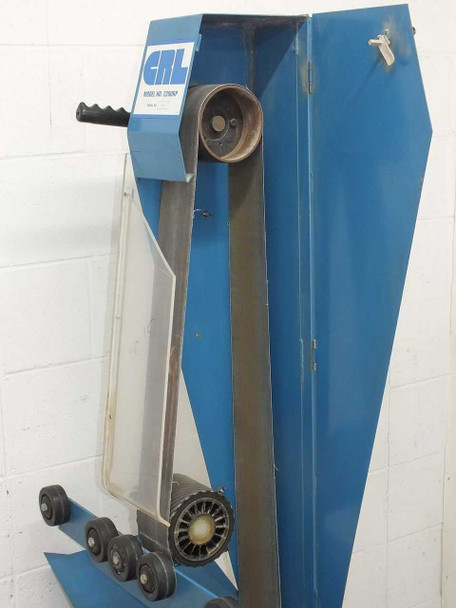

- Splash guard: Clear acrylic water deflector panel (small piece broken — see condition notes)

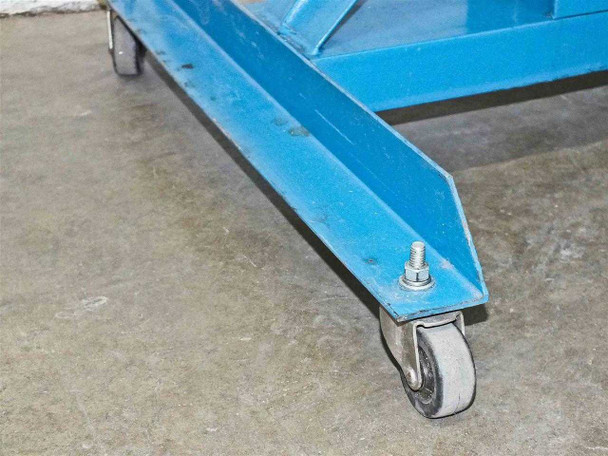

- Base: Welded steel frame on four caster wheels
- Included: Machine, Baldor motor, water sump, red catch bucket, coiled water hose
- Not included: Abrasive belt
Applications
Wet abrasive belt sanders of this type are standard equipment in glass fabrication shops, stone and tile shops, and lapidary studios. The CRL 2200RP is designed primarily for edge sanding, flat grinding, and surface finishing of glass panels, mirrors, stone slabs, and ceramic tile, where dry sanding would generate hazardous silica or glass dust. The continuous water flood cools the abrasive belt and workpiece, extends belt life, and suppresses airborne particles. The roller platen contact configuration allows consistent pressure over flat or gently curved surfaces, making these machines well-suited for finishing cut glass edges before polishing. CRL (C.R. Laurence) has long been a leading supplier of glass handling and fabrication equipment to the glazing and architectural glass industry, and the 2200RP represents a mid-capacity shop machine suitable for production use in a glass or stone finishing environment.

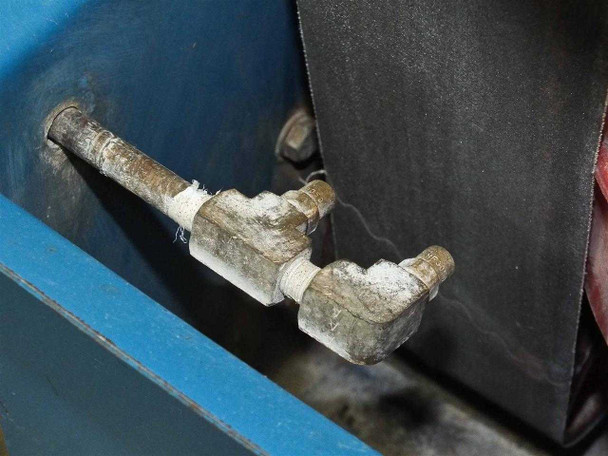

This CRL 2200RP Wet Abrasive Belt Sander has been inspected and appears to be in good used condition overall. It was pulled from a working environment where it was previously in service. A small piece of the plastic splash shield is broken off. The machine shows normal wear consistent with industrial use — the power cord and plug show heavy use soiling, there is mineral scale buildup on the water plumbing fittings inside the sump basin, and the base frame has some paint chips and surface scuffs. The rubber drive roller, guide rollers, platen assembly, Baldor motor, ASCO solenoid valve, water catch sump, and rolling steel base are all present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
CRL |
Model: |
2200RP |
MPN: |
2200RP |
Type: |
Wet Abrasive Belt Sander with Roller Platen |
SKU: |
44991 |
Motor Brand: |
Baldor Electric |
Motor Model: |
35H596-157 |
Motor Type: |
Single Phase Industrial Motor |
Voltage: |
115/230V AC |
Motor RPM: |
1725 RPM |
Motor Hz: |
60 Hz |
Motor Class: |
Class B |
Motor Rating: |
40C AMB-CONT |
Motor Service Factor: |
1.15 |
Power Requirements: |
115/230V AC, 60 Hz, Single Phase |
Outlet Type: |
NEMA 5-15R (standard 120V duplex outlet on frame) |
Water System: |
Integrated water feed with ASCO solenoid valve |
Solenoid Valve: |
ASCO, 120V AC 60Hz / 110V AC 50Hz, 6.5W |
Base / Mobility: |
Welded steel frame base with caster wheels |
Form Factor: |
Floor-Standing / Freestanding |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes machine with Baldor motor, water sump, red catch bucket, and coiled water hose. No abrasive belt included. |
Condition Notes: |
This CRL 2200RP Wet Abrasive Belt Sander is in good used condition, pulled from a working environment. A small piece of the plastic splash shield is broken off. |
